New Holland 9090X GE / H / O / Coffee / Olive Plus / Olive Plus GE Service Manual Grape Harvester 47914333 manuals in PDF

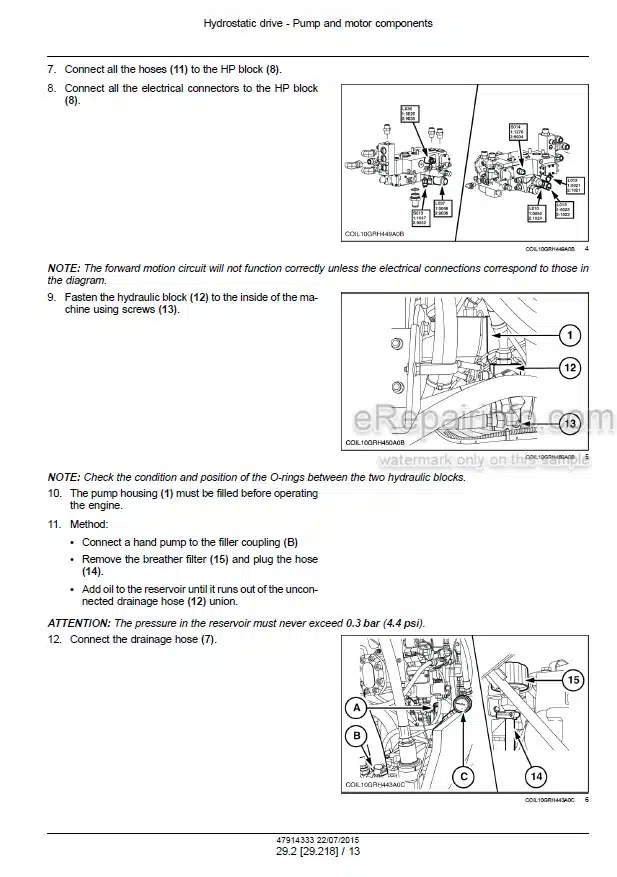

Factory Service Manual For New Holland 9090X, 9090X GE, 9090X H, 9090X O, 9090X Coffee, 9090X Olive Plus, 9090X Olive Plus GE Tractor. Manual Contains Illustrations, Instructions, Diagrams For Step By Step Remove And Install, Assembly And Disassembly, Service, Inspection, Repair, Troubleshooting, Tune-Ups.

Format: PDF
Language: English
Pages: 1796
Number: 47914333
Bookmarks: Yes
Searchable: Yes
Wiring Diagrams: Yes
Hydraulic Diagrams: Yes

Model

New Holland Grape Harvester

9090X
9090X GE
9090X H
9090X O
9090X Coffee
9090X Olive Plus
9090X Olive Plus GE

Contents

INTRODUCTION
-REAR AXLE SYSTEM
Powered Rear Axle
-HYDROSTATIC DRIVE
Rear Hydrostatic Transmission
Pump And Motor Components
Hydrostatic Transmission
-BRAKES AND CONTROLS
Hydraulic Service Brakes
-HYDRAULIC SYSTEMS
Reservoir, Cooler, And Filters
Machine Leveling Control System
Hydraulic Systems
Boom Hydraulic System
Shaking Hydraulic System
Cleaning Hydraulic System
Conveyor Receiver System
Frame Positioning Lifting
Destemmer System
-FRAMES AND BALLASTING
Frame
-STEERING
Steering Control
-ELECTRICAL SYSTEMS
Cab Fruit Harvesting Controls
Electrical System
Harnesses And Connectors
Warning Indicators, Alarms, And Instruments
Boom, Dipper, And Bucket Control System
Harvesting Hopper Control System
Fault Codes
-FRUIT HARVESTER SHAKING
Shaking Frame
Shaking Control
Connecting Rods, Front Plates, And Shakers
Adjustable Width System
-CLEANING
Upper Extractors
Lower Extractors

What you get

You will receive PDF file with high-quality manual on your email immediately after the payment.
