New Holland BR7060 BR7070 BR7080 BR7090 Service Manual Round Baler 84217330 manuals in PDF

$24.00

Factory Service Manual For New Holland BR7060, BR7070, BR7080, BR7090 Round Baler. Manual Contains Illustrations, Instructions, Diagrams For Step By Step Remove And Install, Assembly And Disassembly, Service, Inspection, Repair, Troubleshooting, Tune-Ups.

(1 customer review)
Photo 9 - New Holland BR7060 BR7070 BR7080 BR7090 Service Manual Round Baler 84217330
New Holland BR7060 BR7070 BR7080 BR7090 Service Manual Round Baler 84217330 $24.00
  • Lifetime Free Access
  • Instant Downloads
  • Support and Instructions with download
Guaranteed Safe Checkout

New Holland BR7060 BR7070 BR7080 BR7090 Service Manual Round Baler 84217330

Comprehensive Factory Service Manual for New Holland Round Balers

For those who own or operate New Holland BR7060, BR7070, BR7080, or BR7090 round balers, this Factory Service Manual (Product Number: 84217330) is an indispensable resource. This manual provides detailed illustrations, instructions, and diagrams for step-by-step procedures related to removal and installation, assembly and disassembly, service, inspection, repair, troubleshooting, and tune-ups. Ensure your baler operates at peak efficiency with this comprehensive guide.

Key Features:

Format and Accessibility:

  • Format: PDF
  • Language: English
  • Pages: 1100
  • Bookmarks: Yes
  • Wiring Diagrams: Yes

Models Covered:

  • New Holland BR7060
  • New Holland BR7070
  • New Holland BR7080
  • New Holland BR7090

Comprehensive Contents:

GENERAL INFORMATION:

  • Standard Torque Data for Hydraulic Tubes and Fittings
  • Recommended Lubricants
  • Roller Chains
  • Conversion Charts
  • Ecology and the Environment
  • Baler Components
  • Power Flow Baler with Stuffer
  • Power Flow Baler with Rotor
  • Driveline Components Baler with Standard Pickup
  • Driveline Components Baler with Stuffer and Wide Pickup
  • Driveline Components Baler with Rotor and Wide Pickup
  • Specifications
  • Storage and Seasonal Preparation

IMPLEMENT DRIVELINE:

  • PTO Driveline
  • Gearbox
  • Clutches
  • Drives

HYDRAULICS:

  • Tailgate Lift System
  • Belt Tension System
  • Feeding – Pickup Lift Cylinder/Rotor Knives and Reverse Cylinders
  • Lubrication – Grease Lines and Oiler

FRAME:

  • Tailgate

AXLES AND WHEELS:

  • Specifications
  • Special Tools
  • Description of Operation
  • Overhaul Procedures

ELECTRICAL SYSTEMS:

  • General Information
  • Harness and Connectors
  • Components – Operation, Location, and Testing
  • Bale Command Plus Electrical System, Troubleshooting – Component Adjustment and Calibration
  • Auto Wrap Electrical System
  • Lighting Systems

PICKUPS:

  • Standard Pickup
  • Wide Pickup with Stuffer – 1.5M
  • Wide Pickup with Stuffer – 1.8M and 2.1M
  • Wide Pickup with Rotor – 2.1M
  • Delta Special Standard Pickup

PRESSING:

  • Take Up Arm
  • Belts
  • Starter Roll
  • Stationary Roll
  • Floor Roll
  • Belt Rolls
  • Sledge Assembly
  • Bale Slice Roll BR7060 and BR7090

WRAPPING:

  • Net Wrapper Mechanical System
  • Twine Wrapper Mechanical System
  • Auto Wrap System

EJECTION:

  • Bale Ejector

SHIELDING:

  • Side Doors
  • Net and Twine Boxes

Visual Aids:

Illustrations and Diagrams:

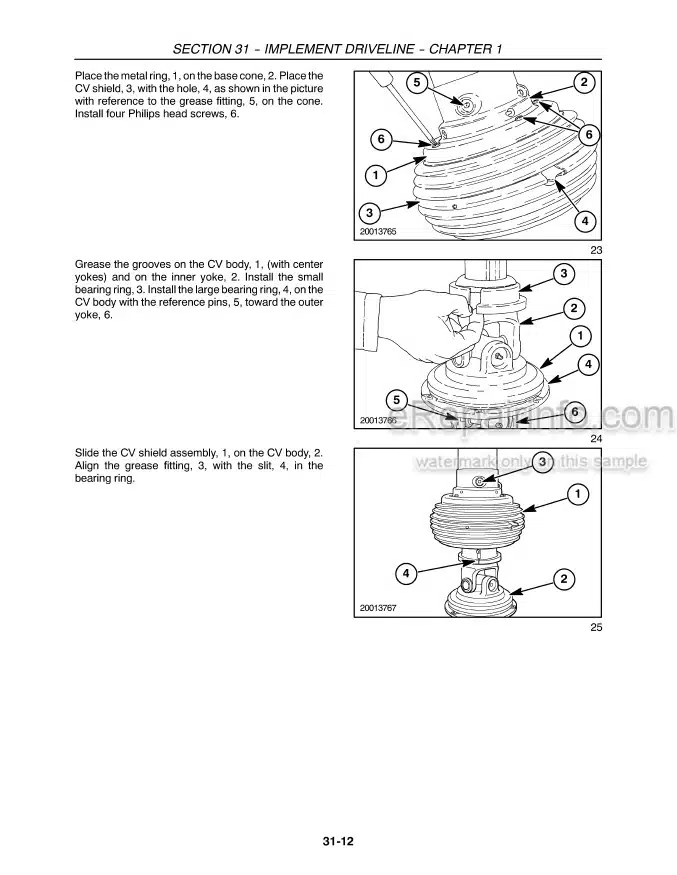

  • Detailed exploded views and technical diagrams for clear visual guidance
  • High-quality photographs to illustrate key steps in various procedures
  • Wiring diagrams to aid in troubleshooting and repairs

Troubleshooting and Diagnostics:

  • Comprehensive troubleshooting guides for quick issue resolution
  • Detailed diagnostic procedures for accurate problem identification

Technical Specifications:

Service and Maintenance:

  • Regular service schedules and routine maintenance tasks
  • Inspection guidelines to keep your baler in top condition

Safety and Best Practices:

  • Essential safety instructions to protect you and your team during repair and maintenance activities
  • Best practices for handling and servicing your equipment

The New Holland BR7060 BR7070 BR7080 BR7090 Service Manual is an indispensable tool for anyone responsible for maintaining and repairing these robust round balers. With its comprehensive coverage, detailed instructions, and extensive visual aids, this manual ensures that you have all the information needed to keep your equipment running smoothly.
