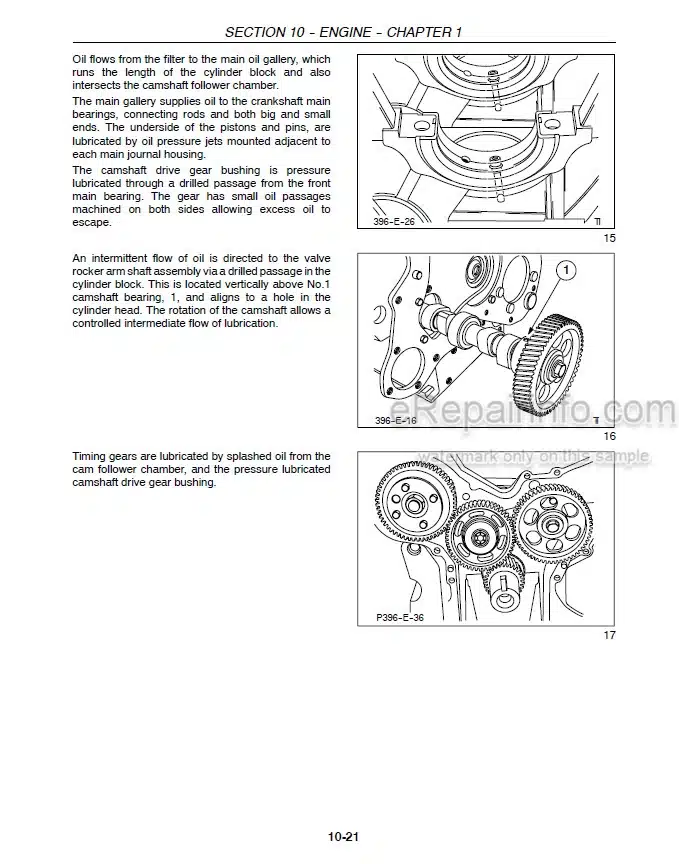

Factory Repair Manual For New Holland CR920, CR940, CR960, CR970 Combine. Manual Contains Illustrations, Instructions, Diagrams For Step By Step Remove And Install, Assembly And Disassembly, Service, Inspection, Repair, Troubleshooting, Tune-Ups.
Format: PDF
Language: English
Pages: 4344
Number: 87600552
Bookmarks: Yes
Searchable: Yes
Wiring Diagrams: Yes
Hydraulic Diagrams: Yes
Model
New Holland Combine
CR920
CR940
CR960
CR970
Contents
– GENERAL INFORMATION
Foreword
Precautionary Statements
Service Techniques
Product Identification
Minimum Hardware Tightening Torques
Recommended Lubricants And Coolants (North America Only)
– ENGINE
7.5L Engine Block
7.5L Cooling
7.5L Complete Engine, Remove and Replace
7.5L Fuel System
7.8L, 10.3L Description of Operation
7.8L, 10.3L Complete Engine, Remove and Replace
7.8L, 10.3L Engine Block
Common Engine Compartment Components
– LIVE PTO
Engine Gearbox, Clutch Pack Removal/Installation
Engine Gearbox, Clutch Pack Rebuild
Engine Gearbox Removal/Installation
Engine Gearbox Rebuild
– TRANSMISSION
Specifications
Tightening Torques
Special Tools
Sectional/Exploded Views
Overhaul
– FRONT MECHANICAL DRIVE
Planetary Final Drive
11/111 Final Drives
– HYDROSTATIC SYSTEM
Hydrostatic Drive System Introduction
Hydrostatic System Operation
Filling the Hydrostatic System and Start-up Procedure
Powered Rear Axle
Pressure Testing and Troubleshooting
Hydrostatic Pump and Motor Repair
– BRAKES AND CONTROLS
Specifications
Tightening Torques
Minimum Hardware Tightening Torques
Overhaul
– HYDRAULIC SYSTEMS
Introduction
Description of Operation
Pressure Testing and Fault Finding The High and Low Pressure Hydraulic Systems
Hydraulic Pump
Stack Valves Overhaul
– STEERING AXLE
Axle, General
Wheel Bearings (HDASA)
Steering Pivot (HDASA)
Center Section
Powered Rear Steering Axle BSN HAJ100101
Hydrostatic Motor ASN HAJ100101
– CLIMATE CONTROL
Heating, Ventilation and Air-Conditioning
Air Filters
Blower Fans
Compressor
Condenser
Cool Box
Evaporator
Heater Core
High/Low Pressure Cutout Switch
Receiver/Dryer
Thermal Expansion Valve
– ELECTRICAL SYSTEMS
General Information
Infoview Monitor Diagnostic Functions
Electrical Schematics
CAN Data Bus Network
Engine Systems
Power Distribution and Lighting
Cab Systems
Hydraulic Systems
Driveline Systems
Header Systems
Feeder Systems
Threshing Systems
Cleaning Systems
Clean Grain Systems
Crop Residue
Precision Farming
Electrical Connectors
CCM1 Error Codes
CCM2 Error Codes
CCM3 Error Codes
Engine Fault Codes
HHC Diagnostic Codes
ASP Fault Codes
RHM Fault Codes
– PRODUCT FEEDING
Feeder House
Feeder Drives
Stone Ejection System
– THRESHING
Rotor Chamber
Rotors
Main Threshing Drives
– DISCHARGE BEATER
Specifications
Introduction
Overhaul
– CLEANING SYSTEMS
Cleaning Shoe Frame
Cleaning Shoe Drive
Cleaning Fan and Drives
Returns System
– GRAIN STORAGE
Clean Grain Transport
Unloading System
– ACCESSORIES
Straw Chopper
Chaff/Corn Spreader
Positive Straw Discharge (PSD)
– PLATFORM, CAB, BODYWORK, DECALS
Cab
Shielding
Blow Off System
