New Holland E235B Repair Manual Excavator 87495895A manuals in PDF

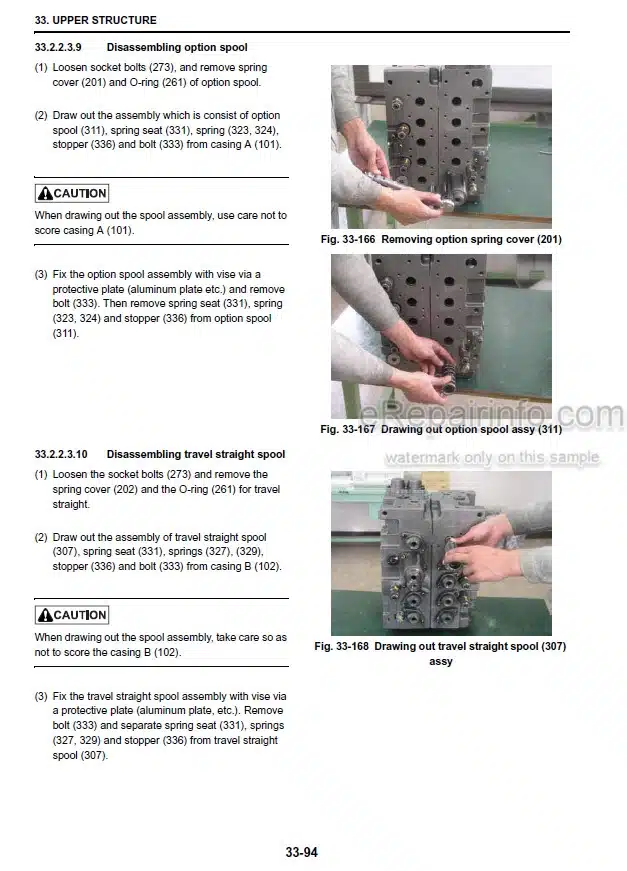

Factory Repair Manual For New Holland E235B Excavator; Case 667TA/EEG, 667TA/EEC, 667TA/EBF, 667TA/EED, 667TA/EBJ, 667TA/EDJ Engine. Manual Contains Illustrations, Instructions, Diagrams For Step By Step Remove And Install, Assembly And Disassembly, Service, Inspection, Repair, Troubleshooting, Tune-Ups.

Format: PDF
Language: English
Pages: 896
Number: 87495895A
Searchable: Yes
Wiring Diagrams: Yes
Hydraulic Diagrams: Yes

Model

New Holland Excavator
E265B

Case Engine
667TA/EEG
667TA/EEC
667TA/EBF
667TA/EED
667TA/EBJ
667TA/EDJ

Contents

1.NEW HOLLAND E235B REPAIR MANUAL EXCAVATOR.
2.CASE 667TA/EEG, 667TA/EEC, 667TA/EBF, 667TA/EED, 667TA/EBJ, 667TA/EDJ REPAIR MANUAL ENGINE.

1.NEW HOLLAND E235B REPAIR MANUAL EXCAVATOR.

-SAFETY
General Safety Information
Safety Precautions
-OUTLINE
General Precautions For Making Repairs
International Unit System
-SPECIFICATIONS
Name Of Components
General Dimensions
Weight Of Components
Transportation
Specifications And Performance
Type Of Crawler
Combinations Of Attachment
Engine Specifications
-ATTACHMENT DIMENSIONS
Boom
Arm
Bucket And Pin
-TOOLS
Standard Torque Specifications For Capscrews And Nuts
Screw Size
Torque Specifications For Hose And Fittings
Torque Specifications For Nuts And Sleeves
Plug
Special Spanner For Tube
Special Tools
Application Of Screw Locking Compound And Sealing Compound
Suction Stopper
Counter Weight Lifting Jig
Engine Turnover Stand
Track Spring Set Jig
-STANDARD MAINTENANCE TIMETABLE
Standard Working Time Table For The Maintenance Of Excavator
-MAINTENANCE STANDARD AND TEST PROCEDURE
How To Use The Maintenance Standard
Performance Inspection Standard Table
Measurement Of Engine Speed
Measurement Of Hydraulic Pressure
Measuring Travel Performances
Measuring Swing Performances
Measuring Attachment Operating Performances
Measuring Performances Of Swing Bearing
Mechatro Controller
-MECHATRO CONTROL SYSTEM
Summary Of Mechatro Control System
Mechatro Controller
-HYDRAULIC SYSTEM
Summary
Hydraulic Circuits And Components
Color Coding Standard For Hydraulic Circuits
Neutral Circuit
Travel Circuit
Bucket Circuit
Boom Circuit
Swing Circuit
Arm Circuit
Combined Circuit
Pressure Draining (Releasing) Circuit
-ELECTRICAL SYSTEM
Electric Circuit Diagram
Electrical Equipment List
Harness
-COMPONENTS SYSTEM
Hydraulic Components
Electric Equipment
-AIR CONDITIONER SYSTEM
Basic Air Conditioner System (HVAC Air Conditioner)
Component And Construction
Piping
Function
Disassembly And Assembly
Charging Refrigerant
-ELECTRIC CIRCUIT
Wiring Diagram And Connectors
Structure And Operation Of Each Part And Inspection
Troubleshooting
Self Diagnosis Function On Display Of Panel
-DISASSEMBLY AND ASSEMBLING
Disassembly & Assembly Overview
-ATTACHMENT
Removing And Installing
Disassembling And Assembling
-UPPER STRUCTURE
Removing And Installing
Disassembling And Assembling
-TRAVEL SYSTEM
Removing And Installing
Removal And Installation Of Travel Motor Unit
-TROUBLESHOOTING (BY ERROR CODES)
Evaluation Of Actual Problem At The Site
Classification Of Failure And Troubleshooting
Mechatro Controller Blown Fuse
Troubleshooting By Error Code
-TROUBLESHOOTING (BY SYMPTOM)
Hydraulic System
Electric Systems
Engine Related Troubleshooting
-TROUBLESHOOTING (BY DIAGNOSIS MODE)
Trouble Diagnosis Mode
-ENGINE

2.CASE 667TA/EEG, 667TA/EEC, 667TA/EBF, 667TA/EED, 667TA/EBJ, 667TAEDJ REPAIR MANUAL ENGINE.

-DIAGNOSTICS
CNH- EST Diagnostic Tool
Troubleshooting
-667TA ENGINE OVERHAUL
Engines
Coding Of Source Engines
Engine Properties
General Engine Features
Crank Gear Components And Cylinder Assembly
Valve Gear – Cylinder Assembly
Torque Specifications
Special Tools
667TA Engines
Description Of Main Engine Components
EGR Exhaust Gas Recirculation System
ENGINE LUBRICATION
ENGINE COOLING
High Pressure Electronic Injection System (Common Rail)
EDC7UC31 -Electronic Control Unit Operation
Fuel Supply System
Common Rail
Common Rail Pressure Relief Valve
Electro-Injector
Location Of The Main Electrical Components
Checking The Fuel System
Engine Overhaul On The Bench
Checks And Specifications On Engine Crankcase
Crankshaft
Engine Flywheel
Cylinder Head
Valves
Valve Guide
Valve Seats
Valve Springs
Cylinder Head
Rods And Tappets
-CHARGING AND START-UP
Starter Motor
Alternator
