New Holland E26C Tier IV Final Service Manual Mini Excavator manuals in PDF

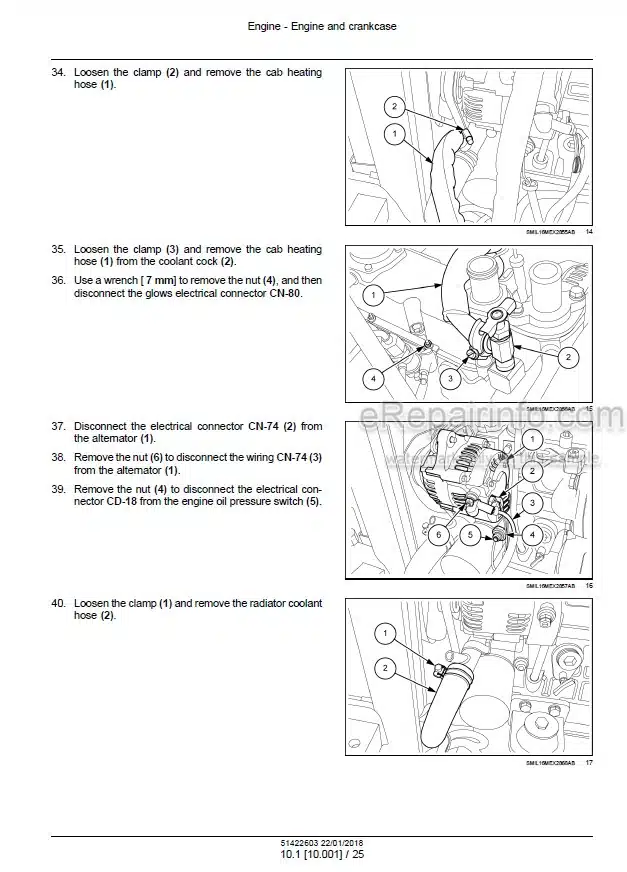

Factory Service Manual For New Holland E26C Mini Excavator. Manual Contains Illustrations, Instructions, Diagrams For Step By Step Remove And Install, Assembly And Disassembly, Service, Inspection, Repair, Troubleshooting, Tune-Ups.

Format: PDF
Language: English
Quantity of Manuals: 2
Pages: 1425; 1423
Number: 51422598 (january 2018); 51422603 (january 2018)
Bookmarks: Yes
Searchable: Yes
Wiring Diagrams: Yes
Hydraulic Diagrams: Yes

Model

New Holland Mini Excavator
E26C
Tier IV

Contents

INTRODUCTION
-ENGINE
Engine And Crankcase
Cylinder Heads
Pan And Covers
Crankshaft And Flywheel
Connecting Rods And Pistons
Valve Drive And Gears
Engine Lubrication System
Engine Cooling System
Fuel Tanks
Air Cleaners And Lines
Fuel Filters
Fuel Injection System
Throttle Linkage
Intake And Exhaust Manifolds And Muffler
Fan And Drive
-HYDRAULIC SYSTEMS
Hydraulic Systems
Variable Displacement Pump
Reservoir, Cooler, And Filters
Main Control Valve
Hydraulic Hand Control
Hydraulic Swing System
Hydraulic Travel System
Hydraulic Central Joint
Hydraulic Foot Control
Pilot System
Hammer And Rotating Bucket Hydraulic System
Boom Hydraulic System
Dipper Hydraulic System
Excavator And Backhoe Bucket Hydraulic System
Tool Quick Coupler Hydraulic System
Swing Arm Hydraulic System
Dozer Blade Cylinders
-FRAMES AND BALLASTING
Swing Ring Assembly
Ballasts And Supports
-TRACKS AND TRACK SUSPENSION
Tracks
Track Frame And Driving Wheels
Track Tension Units
Track Rollers
-ELECTRICAL SYSTEMS
Electrical System
Fuel Tank System
Engine Cooling System
Engine Oil System
Engine Intake And Exhaust System
Harnesses And Connectors
Battery
Engine Starting System
Cold Start Aid
Alternator
External Lighting
External Lighting Switches And Relays
Warning Indicators, Alarms, And Instruments
Cab Controls
Cab Lighting
Wiper And Washer System
Cab Controls (Lift Arm, Boom, Dipper, Bucket)
Cab Engine Controls
-BOOMS, DIPPERS, AND BUCKETS
Bucket
Boom Pivoting Support
Dipper Arm
Boom
-DOZER BLADE AND ARM
Dozer Blade
-PLATFORM, CAB, BODYWORK, AND DECALS
Engine Hood And Panels
Protections And Footboards
Mechanically-Adjusted Operator Seat
Cab
Cab Interior Trim And Panels
Machine Shields And Guards

What you get

You will receive PDF file with high-quality manual on your email immediately after the payment.
