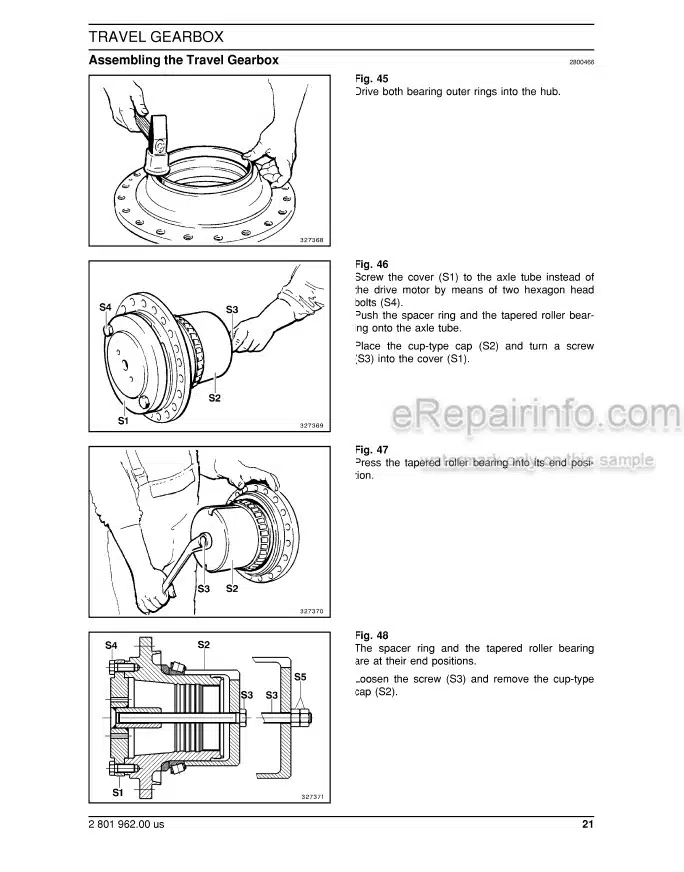

Factory Technical Handbook For New Holland EC450 Excavator. Manual Contains Illustrations, Instructions, Diagrams For Step By Step Remove And Install, Assembly And Disassembly, Service, Inspection, Repair, Troubleshooting, Tune-Ups.
Format: PDF
Language: English
Pages: 796
Number: 73179399
Bookmarks: Yes
Wiring Diagrams: Yes
Hydraulic Diagrams: Yes
Model
New Holland Excavator
EC450
Contents
-FOREWORD / SAFETY INSTRUCTIONS
Warnings And Symbols
Danger In The Event Of Non-Obser-Vance Of The Safety Instructions
Organizational Measures
Selection And Qualification Of Personnel – Basic Responsibilities
Safety Instructions Governing Specific Operational Phases
Special Work In Conjunction With Utilization Of The Machine – Maintenance And Repairs During Operation – Disposal Of Parts And Consumables
Warning Of Special Dangers
Transporting And Towing – Recommissioning
California, Proposition 65 Warning
Repair Work – Safety Instructions
Accumulators, Safety Instructions
Engine
Welding Operations
-SERVICE DATA
SI – And Additional Units
Conversions Tables
Calculation Examples
Tightening Torques
-SPECIAL TOOLS
Foreword
PCS Tester
Vacuum Pump
Environment-Protection Plugs (Not Shown)
Pressure Gauge
Stroke-Measuring Device
Cylinder Tools
Gearbox Tools
-UNDERCARRIAGE
Foreword
Safety Instructions
Travel System
Track Chain
Idler
Bottom Rollers
Top Roller
Sprocket
Travel Gearbox Track Pads
Duo-Cone Seals
-SUPERSTRUCTURE
Foreword
Safety Instructions
Ball-Bearing Swing Bearing
Engine, Installation
Engine, Coupling
-DIESEL ENGINE
-GEARBOXES
Foreword
Safety Instructions
Traveling Gearbox
Dismantling and Reassembling the Traveling Gearbox
Swing Gearbox
Dismantling and Reassembling the Swing Gearbox
Technical Handbook “Traveling Gearbox
Technical Handbook “Swing Gearbox”
-HYDRAULIC SYSTEM
Foreword
Safety Instructions
Depressurizing The Hydraulic System
Venting The Hydraulic System
Flushing The Hydraulic System
Description Of The Hydraulic System
Hydraulic Components
Description Of System Sections
Cooling System For Hydraulic Oil
Checking And Setting Pressures
PCS Tester
Pressure Gauge
Installing The Hydraulic Pumps
Hydraulic Cylinders
Troubleshooting
-ELECTRICAL SYSTEM
Fundamentals Of Electrical Engineering
Interpretation Of Wiring Diagrams
PCS III
Electrical Circuit Diagram
Electrical Components In Circuit Diagram
-WORKING EQUIPMENT
Foreword
Safety Instructions
Assembling Working Equipment – Safety Instructions
Securing The Machine
Corrosion Protection For Pins And Bearings (Bushings And Hubs)
Detaching / Attaching The Backhoe Bucket
Attaching And Detaching The Grab Equipment
-FITTINGS, PIPES AND HOSES / WEDING FOR MAINTENANCE AND REPAIR / SEALING, PROTECTIVE, CHECKING, AND CLEANING AGENTS
Introduction
Fundamental Safety Instructions
Working Equipment
Lines For Various Media
Connections
Flange Couplings With SAE Bolt Pattern
What you get
You will receive PDF file with high-quality manual on your email immediately after the payment.
