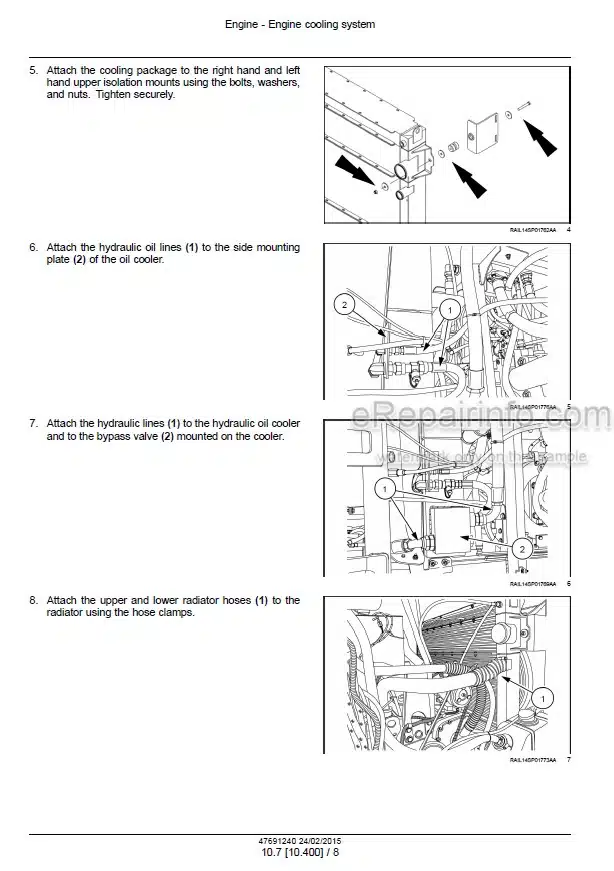

Factory Service Manual For New Holland Guardian SP.295F, Guardian SP.300F, Guardian SP.345F, Guardian SP.400F Sprayer. Manual Contains Illustrations, Instructions, Diagrams For Step By Step Remove And Install, Assembly And Disassembly, Service, Inspection, Repair, Troubleshooting, Tune-Ups.
Format: PDF
Language: English
Pages: 835
Number: 47691240
Bookmarks: Yes
Searchable: Yes
Wiring Diagrams: Yes
Hydraulic Diagrams: Yes
Model
New Holland Sprayer
Guardian SP.295F
Guardian SP.300F
Guardian SP.345F
Guardian SP.400F
Tier 4B (final)
PIN YFYM00001 and above
Contents
INTRODUCTION
-ENGINE
Engine And Crankcase
Pump Drives
Fuel Tanks
Fuel Filters
Air Cleaners And Lines
Selective Catalytic Reduction (SCR) Exhaust Treatment
Engine Cooling System
Fan And Drive
-FRONT AXLE SYSTEM
Powered Front Axle
-HYDROSTATIC DRIVE
Pump And Motor Components
-BRAKES AND CONTROLS
Hydraulic Service Brakes
-HYDRAULIC SYSTEMS
Hydraulic Systems
Reservoir, Cooler, And Filters
Auxiliary Hydraulic Pump And Lines
Hydraulic Fan Drive Cooling System
Machine Leveling Control System
-PNEUMATIC SYSTEM
Pneumatic System
Pneumatic Suspension
-STEERING
Steering Control
Cylinders
-WHEELS
Front Wheels
Rear Wheels
-CAB CLIMATE CONTROL
Heating
Ventilation
Air Conditioning
-ELECTRICAL SYSTEMS
Electrical System
Harnesses And Connectors
Engine Control System
Engine Starting System
Alternator
Battery
Electronic Modules
Heating, Ventilation, And Air-Conditioning (HVAC) Control System
Steering Control System
-SPRAYING
Chemical Spraying
Spraying Pump
Foam Marking System
-PLATFORM, CAB, BODYWORK, AND DECALS
Cab Interior
Mechanically-Adjusted Operator Seat
Engine Hood And Panels
Fenders And Guards
