New Holland LM5.25 LM6.28 Tier 4 Service Manual Telescopic Handler manuals in PDF

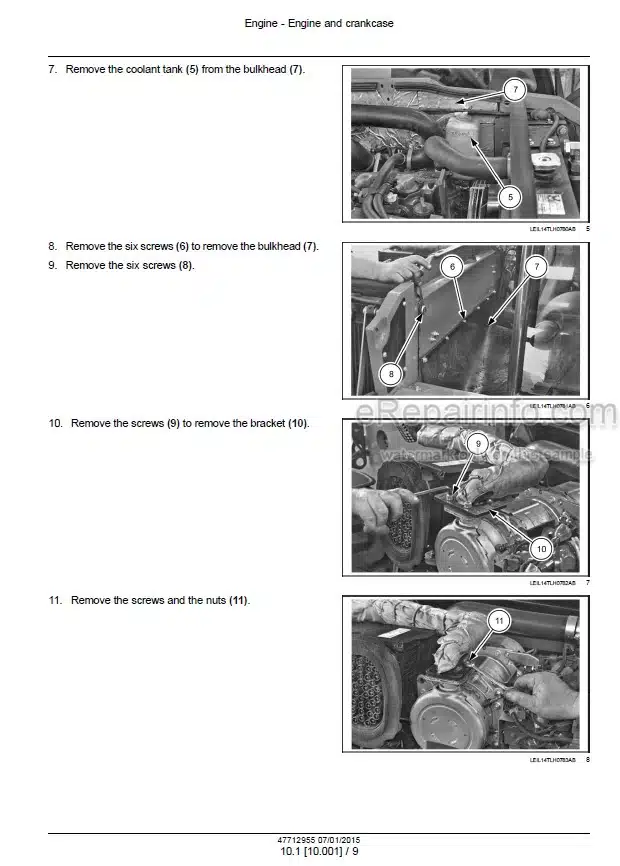

Factory Service Manual For New Holland LM5.25, LM6.28 Tier 4 Telescopic Handler. Manual Contains Illustrations, Instructions, Diagrams For Step By Step Remove And Install, Assembly And Disassembly, Service, Inspection, Repair, Troubleshooting, Tune-Ups.

Format: PDF
Language: English
Quantity of Manuals: 2
Pages: 815; 811
Number: 47712955 (September 2014); 47712952B (issued September 2014)
Bookmarks: Yes
Searchable: Yes
Wiring Diagrams: Yes
Hydraulic Diagrams: Yes

Model

New Holland Telescopic Handler
LM5.25
LM6.28

Tier 4

Contents

INTRODUCTION
-ENGINE
Engine And Crankcase
Exhaust Gas Recirculation (EGR) – Diesel Particulate Filter (DPF) Exhaust Treatment
-FOUR-WHEEL DRIVE (4WD) SYSTEM
Drive Shaft
-FRONT AXLE SYSTEM
Powered Front Axle
Front Bevel Gear Set And Differential
Final Drive Hub, Steering Knuckles, And Shafts
-REAR AXLE SYSTEM
Non-Powered Rear Axle
-HYDROSTATIC DRIVE
Hydrostatic Transmission
-BRAKES AND CONTROLS
Mechanical Service Brakes
Hydraulic Service Brakes
Parking Brake Or Parking Lock
-HYDRAULIC SYSTEMS
Hydraulic Systems
Variable Displacement Pump
Main Control Valve
Auxiliary Hydraulic Pump And Lines
Hydraulic Travel System
Telescopic Arm Hydraulic System
-STEERING
Steering Control
Cylinders
-CAB CLIMATE CONTROL
Air Conditioning
-ELECTRICAL SYSTEMS
Electrical System
Harnesses And Connectors
Cab Controls
-PLATFORM, CAB, BODYWORK, AND DECALS
Cab
Machine Shields And Guards

What you get

You will receive PDF file with high-quality manual on your email immediately after the payment.
