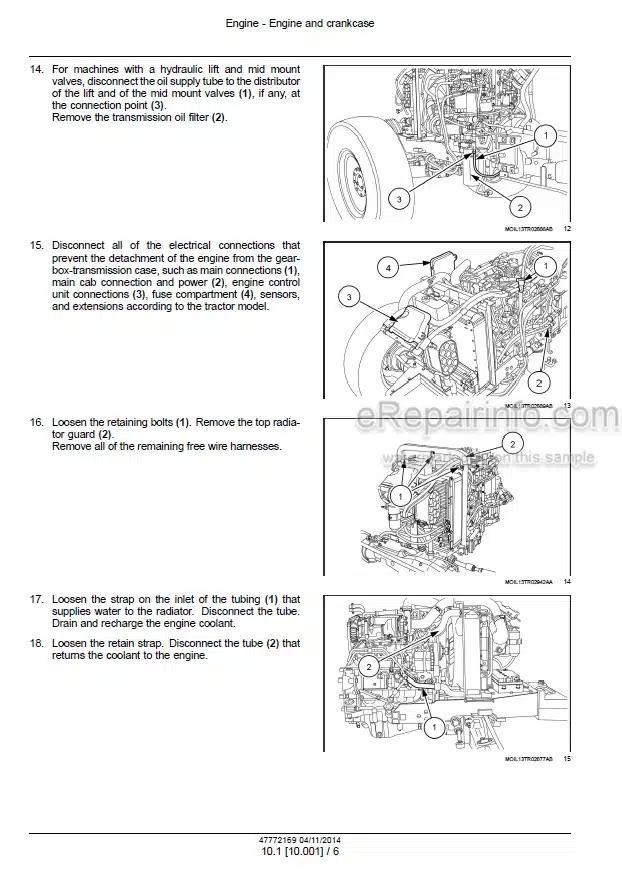

Factory Service Manual For New Holland Power Star T4.55, Power Star T4.65, Power Star T4.75 Tractor. Manual Contains Illustrations, Instructions, Diagrams For Step By Step Remove And Install, Assembly And Disassembly, Service, Inspection, Repair, Troubleshooting, Tune-Ups.
Format: PDF
Language: English
Pages: 1969
Number: 47772169
Bookmarks: Yes
Searchable: Yes
Wiring Diagrams: Yes
Hydraulic Diagrams: Yes
Model
New Holland Tractor With And Without Cab
Power Star T4.55
Power Star T4.65
Power Star T4.75
Tier 4B (final)
PIN ZDAH00008 and above
Contents
INTRODUCTION
-ENGINE
Engine And Crankcase
Fuel Tanks
Exhaust Gas Recirculation (EGR) – Diesel Particulate Filter (DPF) Exhaust Treatment
Fan And Drive
-CLUTCH
Clutch Mechanical Release Control
Clutch Hydraulic Release Control
Clutch And Components
-TRANSMISSION
Mechanical Transmission
Mechanical Transmission Internal Components
Power Shuttle Transmission
Power Shuttle Transmission External Controls
Power Shuttle Transmission Lubrication System
Power Shuttle Transmission Internal Components
Creeper
Reverser
Transmission Cooler And Lines
-FOUR-WHEEL DRIVE (4WD) SYSTEM
Electro-Hydraulic Control
-FRONT AXLE SYSTEM
Powered Front Axle
Front Bevel Gear Set And Differential
Final Drive Hub, Steering Knuckles, And Shafts
Non-Powered Front Axle
-REAR AXLE SYSTEM
Powered Rear Axle
Rear Bevel Gear Set And Differential
Planetary And Final Drives
-POWER TAKE-OFF (PTO)
Rear Mechanical Control
Rear Electro-Hydraulic Control
One-Speed Rear Power Take-Off (PTO)
Two-Speed Rear Power Take-Off (PTO)
-BRAKES AND CONTROLS
Hydraulic Service Brakes
Parking Brake Or Parking Lock
Trailer Brake Hydraulic Control
-HYDRAULIC SYSTEMS
Fixed Displacement Pump
Remote Control Valves
Three-Point Hitch Control Valve
Three-Point Hitch Cylinder
Front Loader Arm Hydraulic System
Front Loader Bucket Hydraulic System
-HITCHES, DRAWBARS, AND IMPLEMENT COUPLINGS
Drawbars And Towing Hitches
Rear Three-Point Hitch
-STEERING
Tie Rods
Pump
Steering Control
Hydraulic Control Components
Cylinders
-WHEELS
Front Wheels
Rear Wheels
-CAB CLIMATE CONTROL
Heating
Ventilation
Air Conditioning
-ELECTRICAL SYSTEMS
Harnesses And Connectors
Engine Starting System
Alternator
Battery
Electronic Modules
Rear Power Take-Off (PTO) Control System
Warning Indicators, Alarms, And Instruments
Dtc Fault Codes
-FRONT LOADER AND BUCKET
Arm
Bucket
Aaa Front Loader And Bucket Generic Sub-Group
-PLATFORM, CAB, BODYWORK, AND DECALS
Cab
Cab Interior
Cab Interior Trim And Panels
Cab Doors And Hatches
Operator Platform Less Cab
Engine Hood And Panels
What you get
You will receive PDF file with high-quality manual on your email immediately after the payment.
