New Holland T4.75 T4.85 T4.95 T4.105 T4.115 Service Manual Tractor 47803847 manuals in PDF

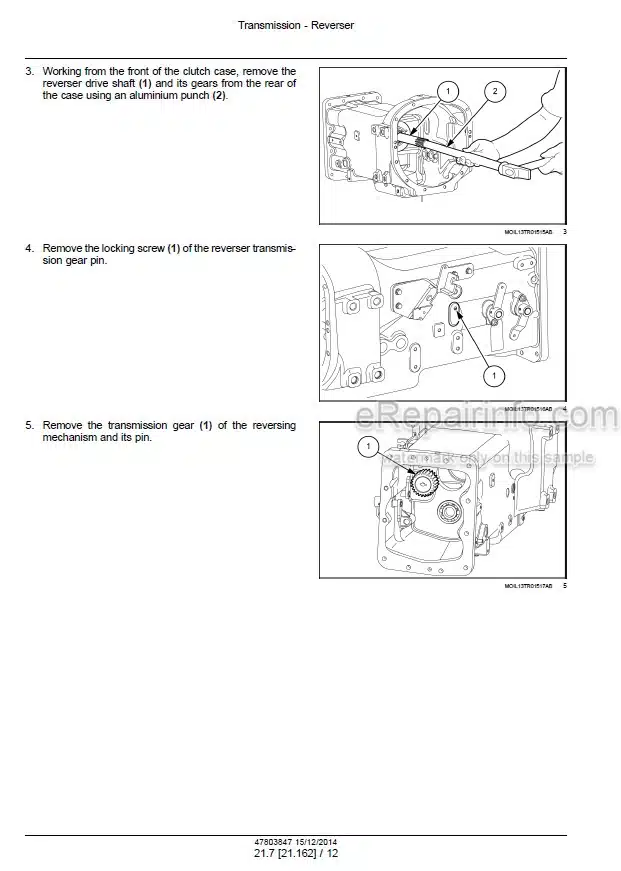

Factory Service Manual For New Holland T4.75, T4.85, T4.95, T4.105, T4.115 Tractor. Manual Contains Illustrations, Instructions, Diagrams For Step By Step Remove And Install, Assembly And Disassembly, Service, Inspection, Repair, Troubleshooting, Tune-Ups.

Format: PDF
Language: English
Pages: 3587
Number: 47803847
Bookmarks: Yes
Searchable: Yes
Wiring Diagrams: Yes
Hydraulic Diagrams: Yes

Model

New Holland Tractor

T4.75
T4.85
T4.95
T4.105
T4.115

PIN ZDJT13873 and above
