Factory Operators Manual For New Holland Tractor. Manual For Owners And Operators. It Contains Important Information And Instructions For Maintenance Description Of The Functions And Capabilities Of The System. Description Of Possible Faults / Problems And Their Solution.
Format: PDF
Language: English
Pages: 270
Number: 84137954 (july 2008)
Bookmarks: Yes
Searchable: Yes
Model
New Holland Tractor
T7510
T7520
T7530
T7540
T7550
Contents
-GENERAL INFORMATION AND SAFETY
Product Identification Numbers And Serial Numbers
Safety
Intended Application
Rules For General Safety And For Accident Prevention
Transporting People
Driving Operation
Leaving The Tractor
Mounted Equipment
Operating The PTO
Maintenance And Other Work
Hazardous Chemicals
Basic Rule
Safety Panels
-CONTROLS, INSTRUMENTS AND OPERATION
Boarding The Tractor
Driver’S Seat
Programming The Displays

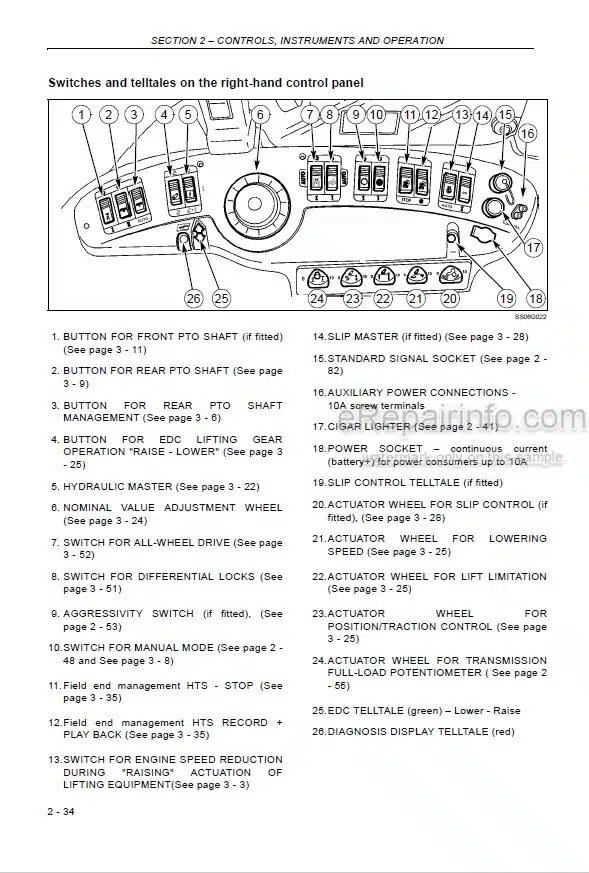

Control Elements
Before Starting The Engine
Driver Presence Switch
Battery Isolator (If Fitted)
Starting Process
Tractor Operation At Low Temperatures (Winter Operation)
Driving Strategies
Stopping And Parking The Tractor
Stationary Control
Park Lock
Driving Considerations
Transmission Actuation
Cab Ventilation / Heating
Height Adjustable Trailer Hitches (If Fitted)
Swinging Drawbar
Auto Pick Up Hitch With Hook Hydraulically Extendable (If Fitted)
Lug Dimensions For Trailer/Implement Mounting
Cable Couplings For Trailer Brake (If Fitted)
Auxiliary Electrical Connector
Warning Lights
Towing
Transporting The Tractor
-FIELD OPERATION
Rear PTO
Operating The Front PTO (If Fitted)
Preparing The Rear Three Point Linkage
Operating The Electronic EDC Lifting Equipment Control
Preparing The Front Power Lift (If Fitted)
Working With The Front Power Lift
HTS Field End Management
Remote Valves
Operating The Remote Valves
Differential Lock/Terralock
Operating Four-Wheel Drive
Operating Terraglide Front Axle (If Fitted)
Mounting Bracket For External Levers
Setting The Front Axle And The Front Axle Track Width
Setting The Front Axle Track Widths
Setting The Rear Axle Track Width
All-Wheel Tyre Combinations
Front Wheel Mudguard – All-Wheel Tractor (If Fitted)
Tractor Ballast
-LUBRICATON AND MAINTENANCE
Environmental Issues
Plastics And Glass Fibre Reinforced Parts
Toolbox
Operating Hours Recorder
Bonnet
Lubricants And Fill Volumes
Daily Checks
Engine Maintenance
Autocommand Maintenance
Maintenance Of Hydraulic Unit
Maintenance Of Steering Unit
Maintenance Of Front Axle
Brake Maintenance
Maintenance Of Trailer Hitch
Electrical Maintenance
Maintenance Of Front PTO Shaft
Maintenance Of Front Hydraulics
General Maintenance
-ELECTRICAL SYSTEM
Battery
Bulbs And Lights
Fuses And Relays
-LONG PERIOD OF NON-USE OF THE TRACTOR
-REVERSING UNIT/BIDRIVE
Bidrive/Reversible Seat/Reversing Unit

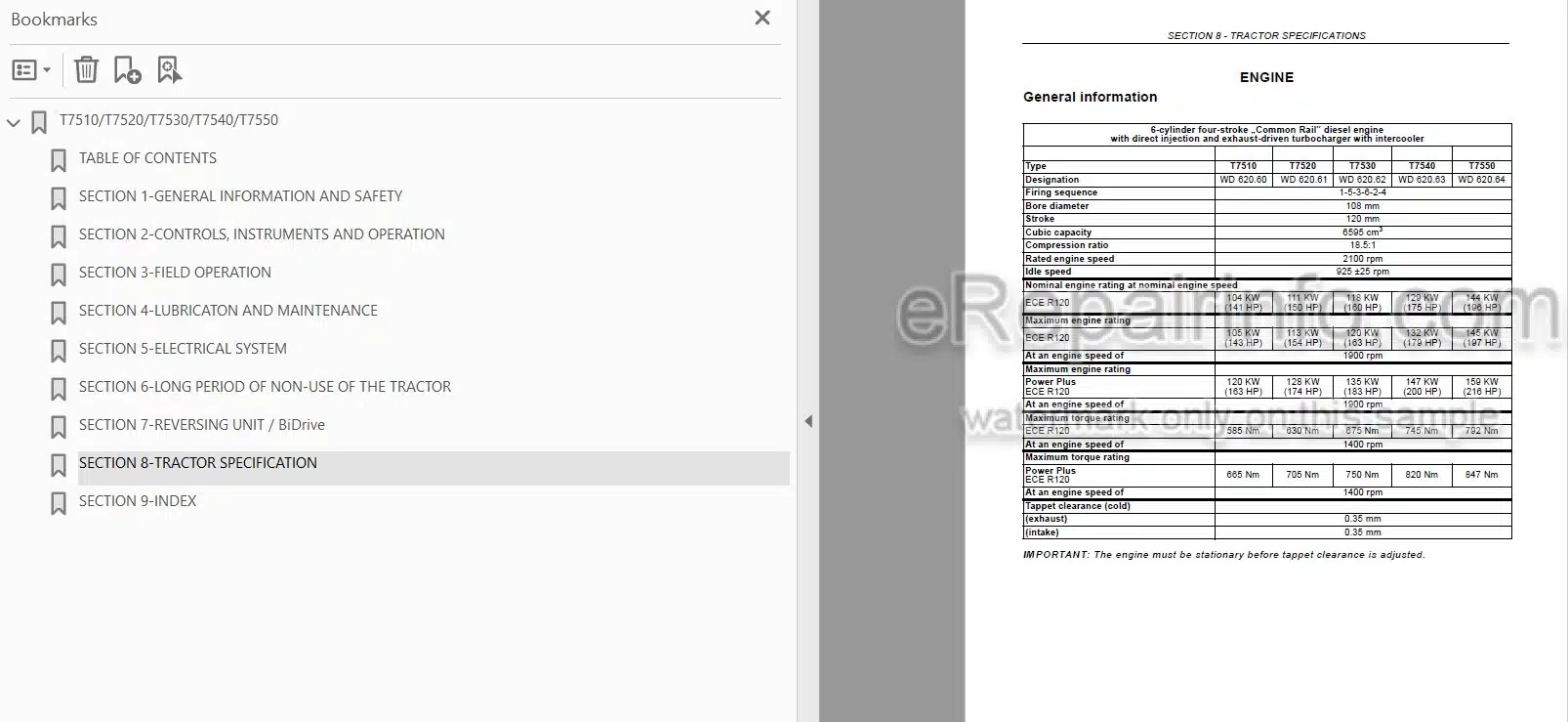

-TRACTOR SPECIFICATION
Engine
Electrical System
General Machine Data
Vehicle Weights
Vehicle Dimensions
-INDEX
What you get
You will receive PDF file with high-quality manual on your email immediately after the payment.
