New Holland TN55V TN65V TN75V TN65N TN75N Operators Manual Tractor 86620310 manuals in PDF

Factory Operators Manual For New Holland Tractor. Manual For Owners And Operators. It Contains Important Information And Instructions For Maintenance Description Of The Functions And Capabilities Of The System. Description Of Possible Faults / Problems And Their Solution.

Format: PDF
Language: English
Pages: 242
Number: 86620310 (september 2000)
Bookmarks: Yes
Searchable: Yes

Model

New Holland Tractor
TN55V
TN65V
TN75V
TN65N
TN75N

Contents

-GENERAL INFORMATION AND SAFETY MEASURES
General Information And Safety Measures
Tractor Identification Plates
Important Ecological Considerations
Always Work Safely
Working Safely
Safety Decals
Standardized Symbols
Tractor Noise Level Information Sheet
-CONTROLS AND INSTRUMENTS
Controls
Cab
Air Conditioning System Instructions For Use
Air Conditioning System
Cab Air Conditioning Controls
Seat
Brakes
Instrument Panel
Digital Control Instrument Panel
Operation Indicator Light Panel
Transmission With Range Gear, Mechanical Shuttle And Splitter 30/40 Km/H (18.64/24.85 Mph) – 32F+16R
Transmission With Creeper Unit, Mechanical Shuttle And Splitter 30/40 Km/H (18.64/24.85 Mph) – 44F+16R
Transmission With Electro-Hydraulic Hi-Lo / Power-Shuttle 30/40 Km/H (18.64/24.85 Mph) – 32F+ 16R Or 44F+16R
Fast Mechanical Transmissions 40 Km/H (24.85 Mph) (Four-Wheel Drive Models)
Electronically Controlled Hydraulic Four-Wheel Drive
Differential Lock
Power Take-Off
Mechanically Controlled Hydraulic Lift
Electronically Controlled Hydraulic Lift
-FIELD OPERATION
Power Take-Off
Mechanically Controlled Hydraulic Lift
Electronically Controlled Hydraulic Lift
Three-Point Linkage
Three Point Linkage – Models TN55V TN65V TN75V
Three Point Linkage – Models TN65N TN75N
Rear Remote Control Valves
Tyres

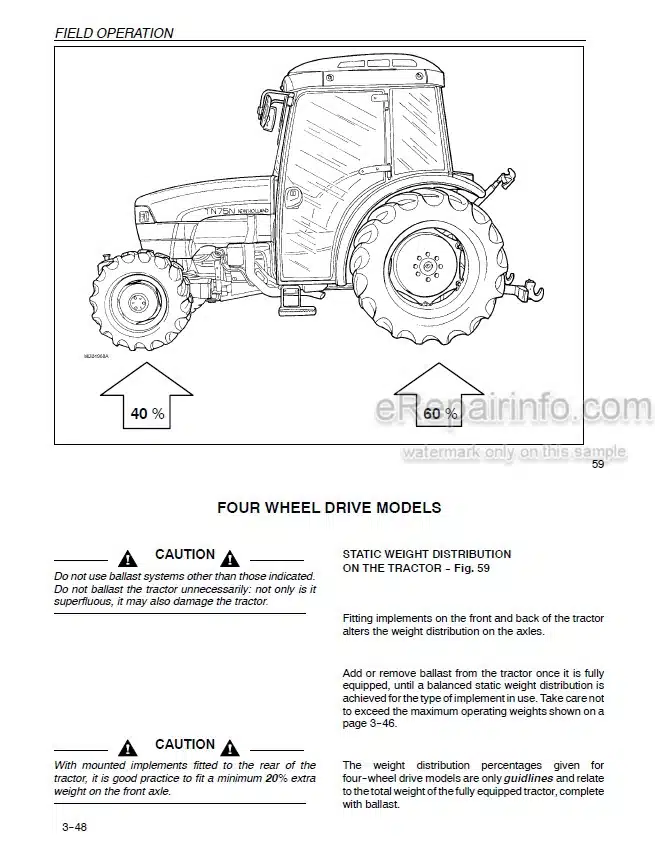

Ballasting
Maximum Permitted Weights
-LUBRICATION AND MAINTENANCE
Lubrication And Maintenance
Tractor Refuelling
Access For Inspection And Maintenance
Lubrication And Maintenance Table
Flexible Maintenance
When The Indicator Light Illuminates On The Dashboard
Every 10 Hours Of Work
Every 50 Hours Of Work
Every 300 Hours Of Work
Every 900 Hours Of Work
Every 1200 Hours Of Work Or Every Year
Every 1200 Hours Or Every 2 Years
General Maintenance
Electrical System
Calibration
Fuel And Lubrication Specifications
-TROUBLESHOOTING
-PROLONGED TRACTOR INACTIVITY

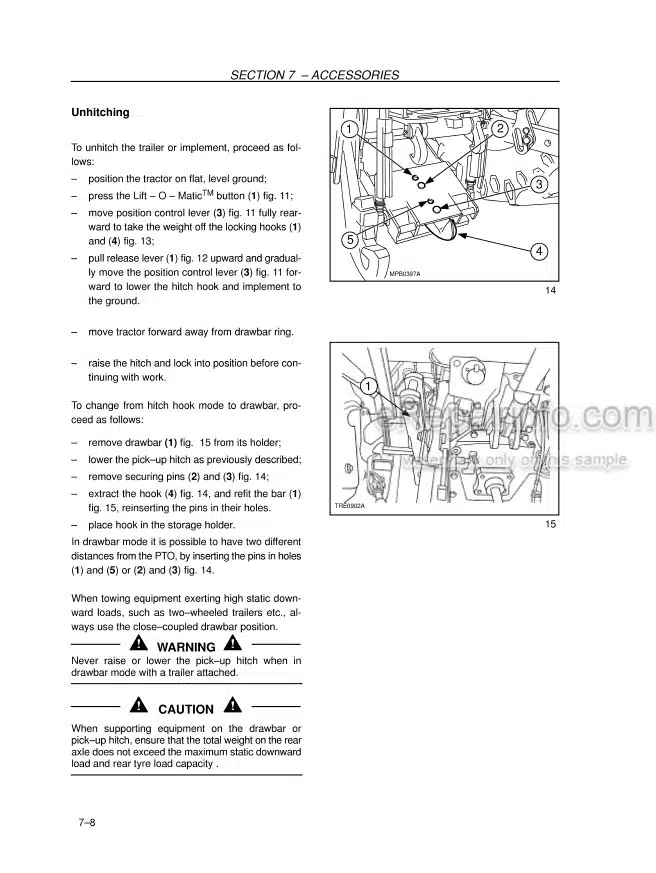

-ACCESSORIES

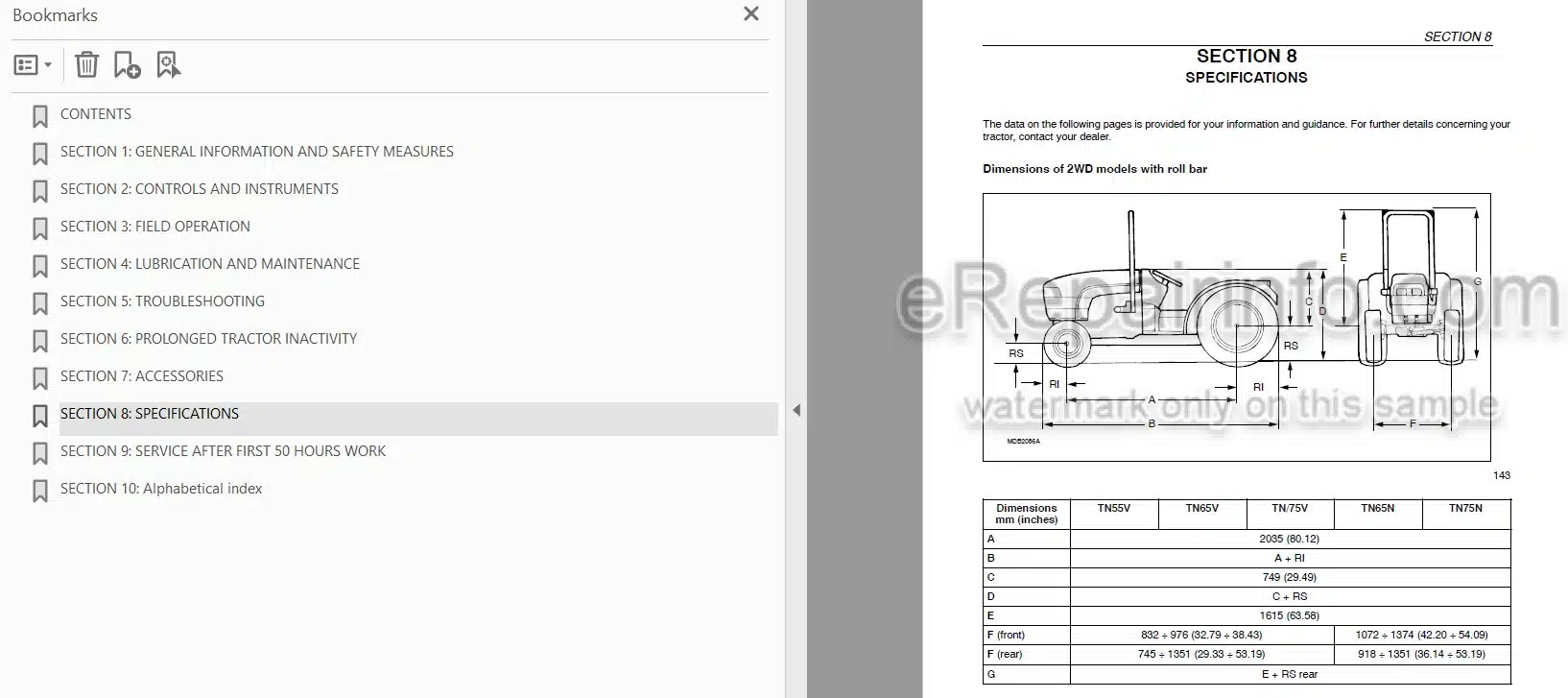

-SPECIFICATIONS
-SERVICE AFTER FIRST 50 HOURS WORK
-ALPHABETICAL INDEX

What you get

You will receive PDF file with high-quality manual on your email immediately after the payment.
