Factory Operators Manual For New Holland Tractor. Manual For Owners And Operators. It Contains Important Information And Instructions For Maintenance Description Of The Functions And Capabilities Of The System. Description Of Possible Faults / Problems And Their Solution.
Format: PDF
Language: English
Quantity of Manuals: 2
Pages: 264; 288
Number: 86608615 (february 2000); 6036452100 (june 2000)
Bookmarks: Yes
Searchable: Yes
Model
New Holland Tractor
TN65F
TN75F
TN90F
*86608615-Replaces All Previous Issues
Contents
-GENERAL INFORMATION
To The User
Tractor Identification
Important Ecological Considerations
Always Work Safely
Working Safely
Safety Decals
Standardised Symbols
Noise Level Information
-GENERAL NOTES, CONTROLS AND INSTRUMENTS
General Notes, Commands And Instruments
Safety Covers And Guards
Controls And Instruments
-OPERATION
Operation
Before Using The Tractor
Analogue Instrument Panel
Digital Instrument Panel
Transmission With Range Gear And Mechanical Shuttle 18.64/24.85 Mph (30/40 Km/H) (16 FWD + 16 Rev)
Transmission With Creeper And Mechanical Shuttle 18.64/24.85 Mph (30/40 Km/H) (28 FWD + 16 Rev)
Transmission With Creeper, Mechanical Shuttle And Splitter 18.64/24.85 Mph (30/40 Km/H) (32 FWD + 16 Rev)
Transmission With Creeper, Mechanical Shuttle And Splitter 18.64/24.85 Mph (30/40 Km/H) (44 FWD + 16 Rev)
Transmission With Electro-Hydraulic Hi-Lo / Power-Shuttle 18.64/24.85 Mph (30/40 Km/H) (32 FWD + 16 Rev)
Transmission With Hydraulic Hi-Lo / Power-Shuttle And Creeper 18.64/24.85 Mph (30/40 Km/H) (44 Rev + 16 Rev)
Fast Mechanical Transmissions 24.85 Mph (40 Km/H) (4WD Models)
Electronically Controlled Electro-Hydraulic Four-Wheel Drive
Differential Lock
Brakes
Rear Power Take-Off
Front Power Take-Off
Mechanically Controlled Hydraulic Lift
Electronically Controlled Rear Hydraulic Lift
Electronically Controlled Front Hydraulic Lift
Front Three-Point Linkage
Front Three-Point Linkage
Towing Equipment
Rear Remote Control Valves
Side Remote Control Valves
Track Adjustment
Tyres
Ballasting
Steering Wheel Adjustment
Seat Adjustment
Cab With Heating And Ventilation

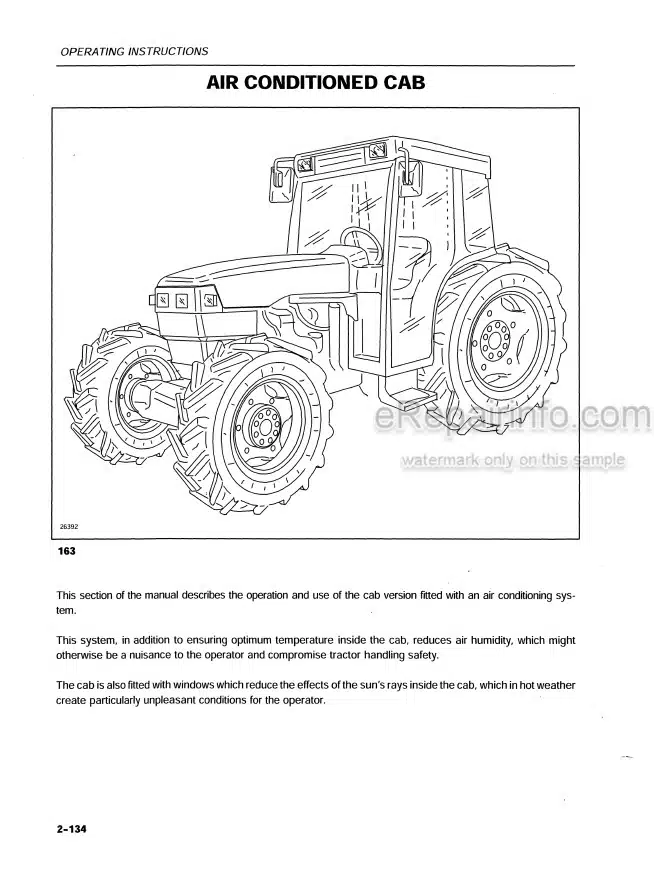

Air Conditioned Cab
-LUBRICATION AND MAINTENANCE
Lubrication And Maintenance
Introduction
Tractor Refuelling
Access For Inspection And Maintenance
Lubrication And Maintenance Table
Flexible Maintenance
When The Indicator Light Illuminates On The Dashboard
Every 10 Hours Of Work
Every 50 Hours Of Work
Every 300 Hours Of Work
Every 900 Hours Of Work
Every 1200 Hours Of Work Or Every Year
Every 1200 Hours Or Every 2 Years
General Maintenance
-TROUBLESHOOTING

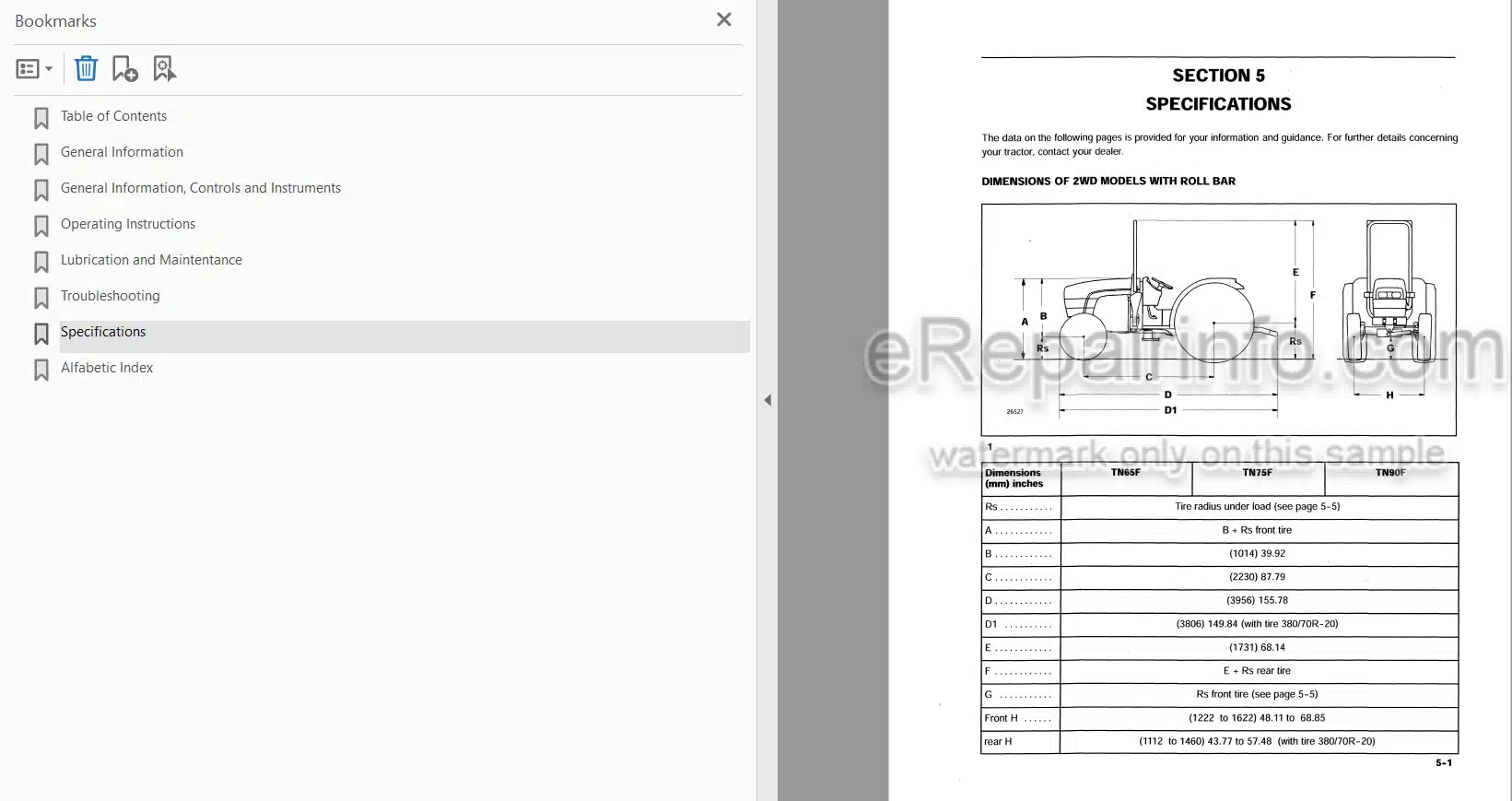

-SPECIFICATIONS AND DATA
-FIRST 50 HOUR SERVICE FORMS
-ALPHABETICAL INDEX
What you get
You will receive PDF file with high-quality manual on your email immediately after the payment.
