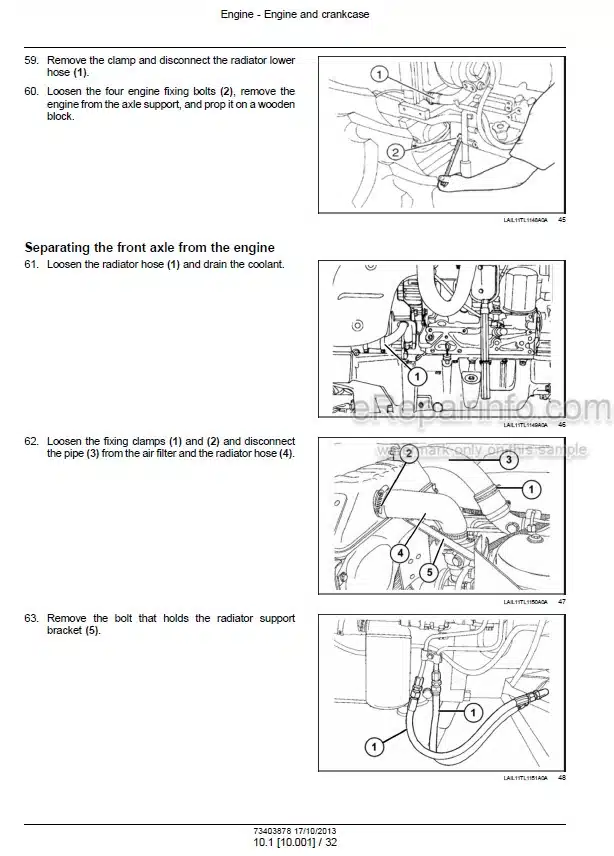

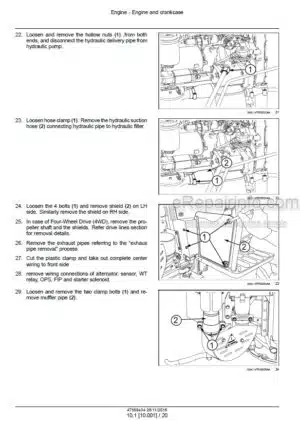

Factory Service Manual For New Holland Tractor. Manual Contains Illustrations, Instructions, Diagrams For Step By Step Remove And Install, Assembly And Disassembly, Service, Inspection, Repair, Troubleshooting, Tune-Ups.
Format: PDF
Language: English
Pages: 940
Number: 73403878 (October 2013)
Searchable: Yes
Wiring Diagrams: Yes
Model
New Holland Tractor
TT3840F
TT3840
TT3880F
TT4030
Contents
INTRODUCTION
-ENGINE
Engine And Crankcase
Pan And Covers
Valve Drive And Gears
Cylinder Heads
Connecting Rods And Pistons
Crankshaft And Flywheel
Balancer And Damper
Pump Drives
Lift Pump And Lines
Fuel Injection System
Air Cleaners And Lines
Intake And Exhaust Manifolds And Muffler
Engine Cooling System
Fan And Drive
Engine Lubrication System
-CLUTCH
Clutch Hydraulic Release Control
Clutch And Components
-TRANSMISSION
Mechanical Transmission
Mechanical Transmission External Controls
Mechanical Transmission Internal Components
-FOUR-WHEEL DRIVE (4WD) SYSTEM
Four-Wheel Drive (4WD) Gearbox
Drive Shaft
-FRONT AXLE SYSTEM
Powered Front Axle
Front Bevel Gear Set And Differential
Final Drive Hub, Steering Knuckles, And Shafts
Final Drives
Non-Powered Front Axle
-REAR AXLE SYSTEM
Powered Rear Axle
Rear Bevel Gear Set And Differential
Planetary And Final Drives
-POWER TAKE-OFF (PTO)
Rear Mechanical Control
Two-Speed Rear Power Take-Off (PTO)
-BRAKES AND CONTROLS
Mechanical Service Brakes
Parking Brake Or Parking Lock
-HYDRAULIC SYSTEMS
Hydraulic Systems
Variable Displacement Pump
Main Lift System
Three-Point Hitch Cylinder
Three-Point Hitch Control Valve
-HITCHES, DRAWBARS, AND IMPLEMENT COUPLINGS
Rear Three-Point Hitch
-STEERING
Steering Control
Hydraulic Control Components
Cylinders
-WHEELS
Front Wheels
-ELECTRICAL SYSTEMS
Harnesses And Connectors
Engine Starting System
Alternator
Battery
Warning Indicators, Alarms, And Instruments
-PLATFORM, CAB, BODYWORK, AND DECALS
Cab Interior
