New Holland WE150B Service Manual Wheeled Excavator 47500165A manuals in PDF

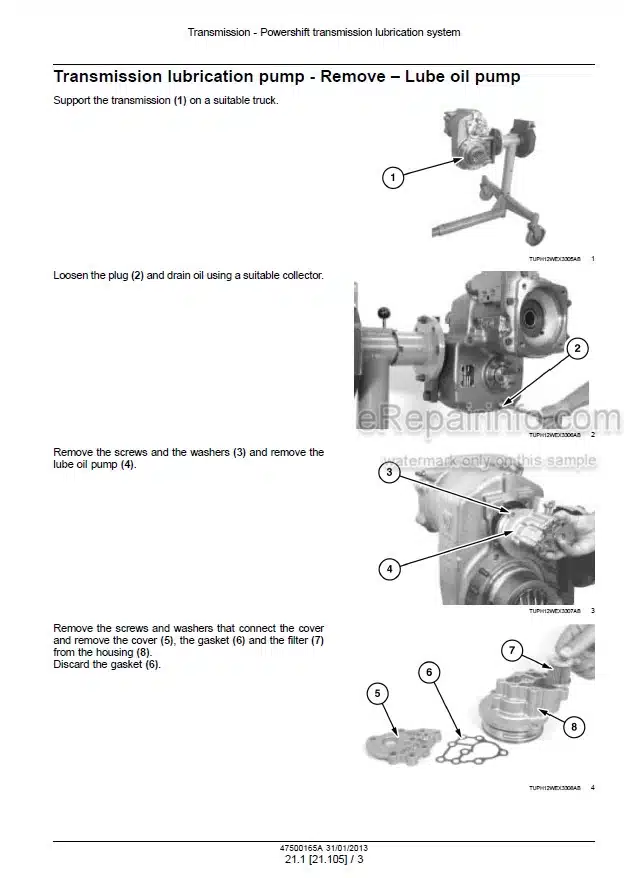

Factory Service Manual For New Holland WE150B Wheeled Excavator. Manual Contains Illustrations, Instructions, Diagrams For Step By Step Remove And Install, Assembly And Disassembly, Service, Inspection, Repair, Troubleshooting, Tune-Ups.

Format: PDF
Language: English
Pages: 1175
Number: 47500165
Bookmarks: Yes
Searchable: Yes
Wiring Diagrams: Yes
Hydraulic Diagrams: Yes

Model

New Holland Wheeled Excavator
WE150B

Contents

INTRODUCTION
-ENGINE
Engine And Crankcase
Air Cleaners And Lines
Fuel Filters
Fuel Tanks
Intake And Exhaust Manifolds And Muffler
Engine Cooling System
-TRANSMISSION
Powershift Transmission Lubrication System
Powershift Transmission
Powershift Transmission External Controls
Powershift Transmission Internal Components
-FOUR-WHEEL DRIVE (4WD) SYSTEM
Drive Shaft
-FRONT AXLE SYSTEM
Powered Front Axle
Front Bevel Gear Set And Differential
Final Drive Hub, Steering Knuckles, And Shafts
Axle Suspension Control
-REAR AXLE SYSTEM
Powered Rear Axle
Rear Bevel Gear Set And Differential
Planetary And Final Drives
-BRAKES AND CONTROLS
Parking Brake Or Parking Lock
Hydraulic Service Brakes
-HYDRAULIC SYSTEMS
Hydraulic Systems
Pump Control Valves
Variable Displacement Pump
Reservoir, Cooler, And Filters
Combination Pump Units
Hydraulic Swing System
Hydraulic Travel System
Hydraulic Central Joint
Pilot System
Main Control Valve
Hammer And Rotating Bucket Hydraulic System
Stabilizer Hydraulic System
Positioning Arm Hydraulic System
Boom Hydraulic System
Dipper Hydraulic System
Excavator And Backhoe Bucket Hydraulic System
Dozer Blade Cylinders
-FRAMES AND BALLASTING
Swing Ring Assembly
Stabilizers
Ballasts And Supports
-STEERING
Steering Control
Tie Rods
Hydraulic Control Components
Cylinders
-WHEELS
Front Wheels
-CAB CLIMATE CONTROL
Air Conditioning
-ELECTRICAL SYSTEMS
Electrical System
Fuel Injection System
Engine Cooling System
Engine Intake And Exhaust System
Engine Control System
Transmission Speed Sensors
Parking Brake Electrical System
Hydraulic System Control
Heating, Ventilation, And Air-Conditioning (HVAC) Control System
Harnesses And Connectors
Electrical Rotary Joint
Battery
External Lighting
Boom, Dipper, And Bucket Control System
Cab Controls
Cab Lighting
Cab Engine Controls
Camera
Electronic Modules
-BOOMS, DIPPERS, AND BUCKETS
Bucket
Boom
-DOZER BLADE AND ARM
Dozer Blade
-PLATFORM, CAB, BODYWORK, AND DECALS
Protections And Footboards
Mechanically-Adjusted Operator Seat
Cab

What you get

You will receive PDF file with high-quality manual on your email immediately after the payment.
