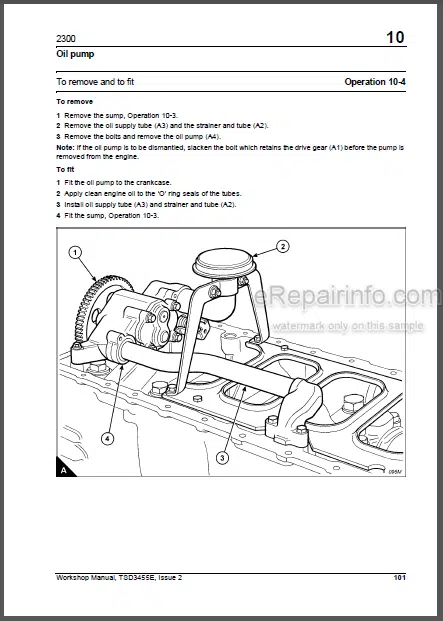

Factory Workshop Manual For Perkins 2300 Series 2306A-E14 2306C-E14 engines. Tons of illustrations, instructions, diagrams for step by step remove and install, assembly and disassembly, service, inspection, repair, troubleshooting, tune-ups.
Format: PDF
Language: English
Pages: 158
Number: TSD3455E
Searchable: Yes
Model
Perkins 2300 Series 2306A-E14, 2306C-E14
6 cylinder turbocharged diesel engines for industrial applications
Contents
-GENERAL INFORMATION
Introduction
Safety Precautions
Viton Seals
Welding
Environmental Protection
Engine Views
Engine Identification
Engine Lift Equipment
-SPECIFICATIONS
Basic Engine Data – 2306 Engine
Basic Engine Data – 2806 Engine
Rocker Assemblies
Valves
Valve Guides
Valve Springs
Valve Seat Inserts
Cylinder Head
Camshaft And Bearings
Pistons And Connecting Rods – 2306 Engine
Pistons And Connecting Rods – 2806 Engine
Crankshaft, Main Bearings And Flywheel
Crankshaft Damper
Crankcase And Cylinder Liners
Lubricating Oil Pump
Coolant Pump
Recommended Torque Figures
-CYLINDER HEAD ASSEMBLY
General Information
Rocker Cover
Rocker Lever And Rocker Shaft Assemblies
Cylinder Head Assembly
Valve Springs
Valves
Valve Seals
Valve Guides
Camshaft
Electronic Injector Units
Injector Sleeves
-PISTONS AND CONNECTING ROD ASSEMBLIES
General Information
Pistons And Connecting Rod Assemblies
Piston Cooling Jets
-CRANKSHAFT ASSEMBLY
General Information
Crankshaft
Crankshaft Front Seal And Wear Sleeve
Crankshaft Rear Seal And Wear Sleeve
Crankshaft Vibration Damper
-GEAR CASE AND DRIVE ASSEMBLY
General Information
Gear Case Cover
Timing Gears
Gear Case
-Crankcase And Cylinder Liners
General Information
Front Engine Support
Cylinder Liners
-Engine Timing And Electronic Controls
General Information
Electronic Control Module
Engine Timing
-ASPIRATION SYSTEM
General Information
Exhaust Manifold
Turbocharger
-LUBRICATION SYSTEM
General Information
Oil Filter And Oil Filter Header
Oil Filter Header
Sump
Oil Pump
-FUEL SYSTEM
General Information
Fuel Priming Pump
Fuel Transfer Pump
Drive For The Fuel Transfer Pump
Fuel Filter Header
Low Pressure Fuel System
-COOLING SYSTEM
General Information
Cooling System
Coolant Filler Cap
Radiator
Fan
Fan Drive Assembly
Fan Drive Belts
Engine Oil Cooler
Thermostats And Thermostat Housing
Coolant Temperature Sensor
Coolant Pump
-FLYWHEEL AND HOUSING
General Information
Flywheel
Flywheel Housing
-ELECTRICAL EQUIPMENT
General Information
Starter Motor
Alternator
-AUXILIARY EQUIPMENT
General Information
Oil Sample Valve
-SPECIAL TOOLS
List Of Special Tools
