Factory Workshop Manual For Takeuchi Compact Excavator. Manual Contains Illustrations, Instructions, Diagrams For Step By Step Remove And Install, Assembly And Disassembly, Service, Inspection, Repair, Troubleshooting, Tune-Ups.
Format: PDF
Language: English
Pages: 231
Issue: july 1998
Bookmarks: Yes
Wiring Diagrams: Yes
Hydraulic Diagrams: Yes
Model
Takeuchi Compact Excavator
Serial Number: 1073001-
Contents
-GENERAL
General Cautions
Cautions During Disassembly And Assembly
Cautions During Removal And Installation Of The Hydraulic Units
Cautions During Removal And Installation Of Piping
Handling Of Seals
Tightening Torques

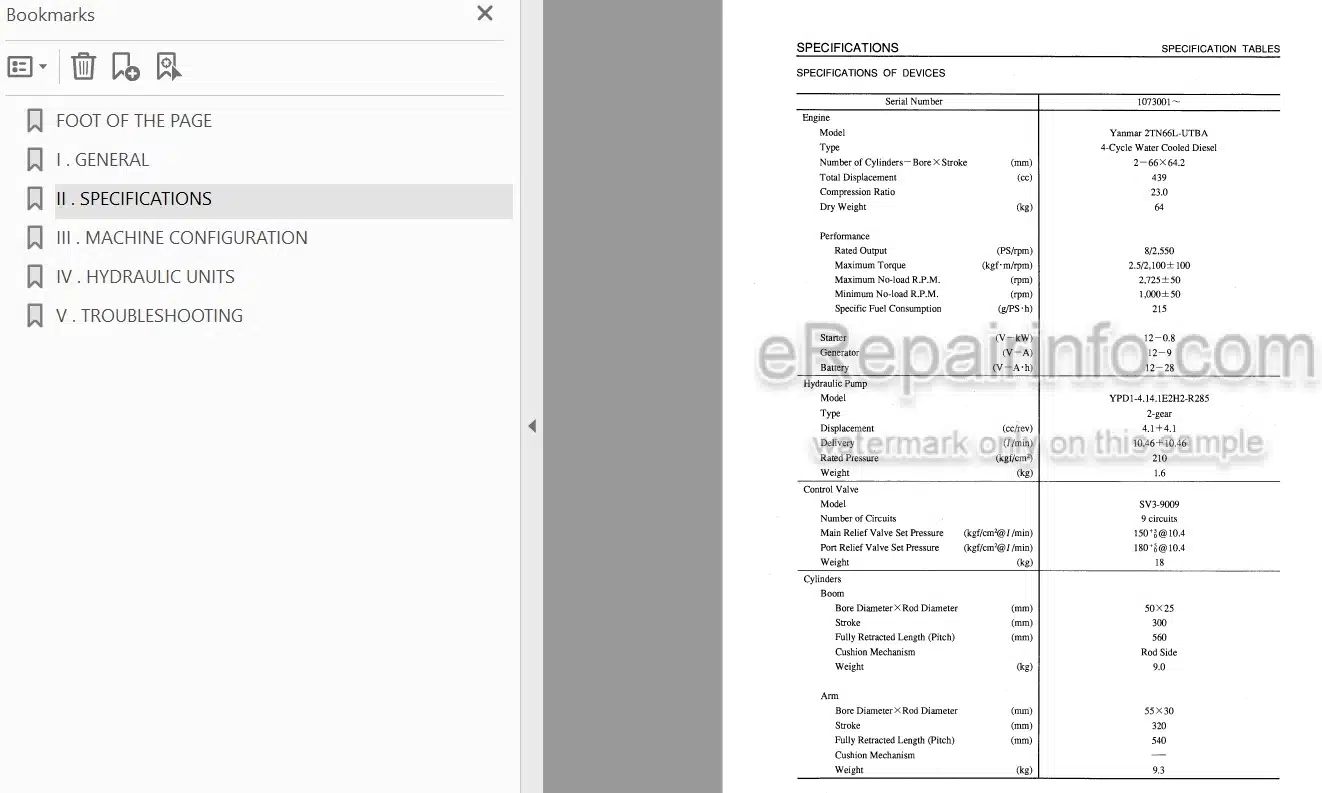

-SPECIFICATIONS
Names of Components
Specification Diagrams
Lifting Capacities
Specification Tables
Weight Tables
Fluid Capacities
Recommended Lubricants
Types of Crawler Belts
Types of Attachments and Their Combinations
Servicing Standards
Standards for Judging Performance
-MACHINE CONFIGURATION
External View
Drive System
Slew System

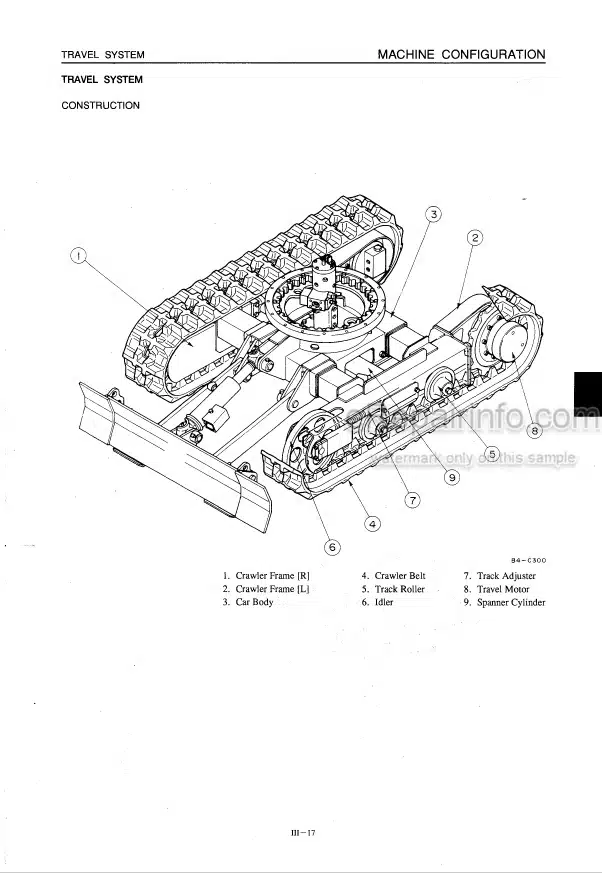

Travel System
Upper Frame
Control System

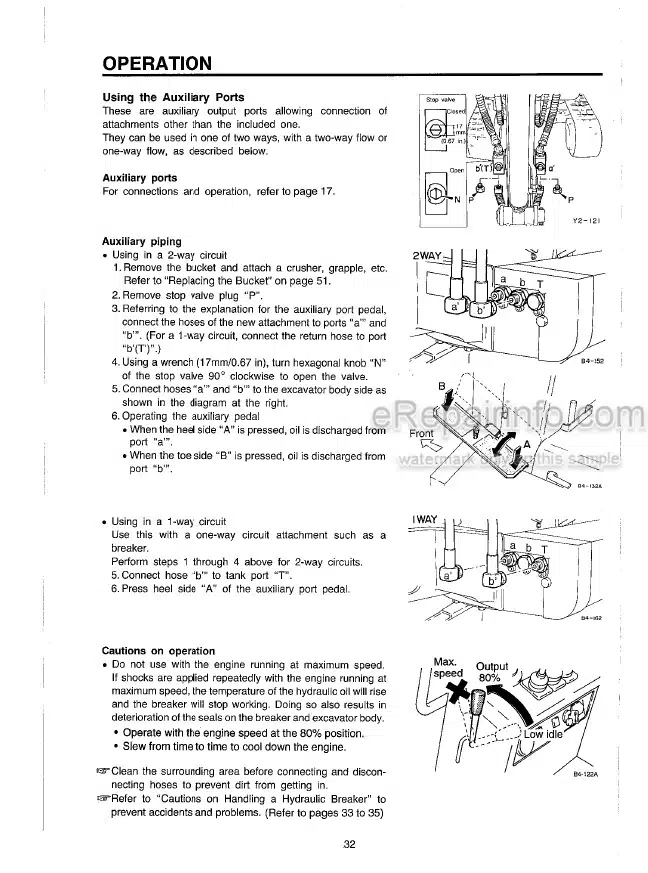

Attachments
Hydraulic System

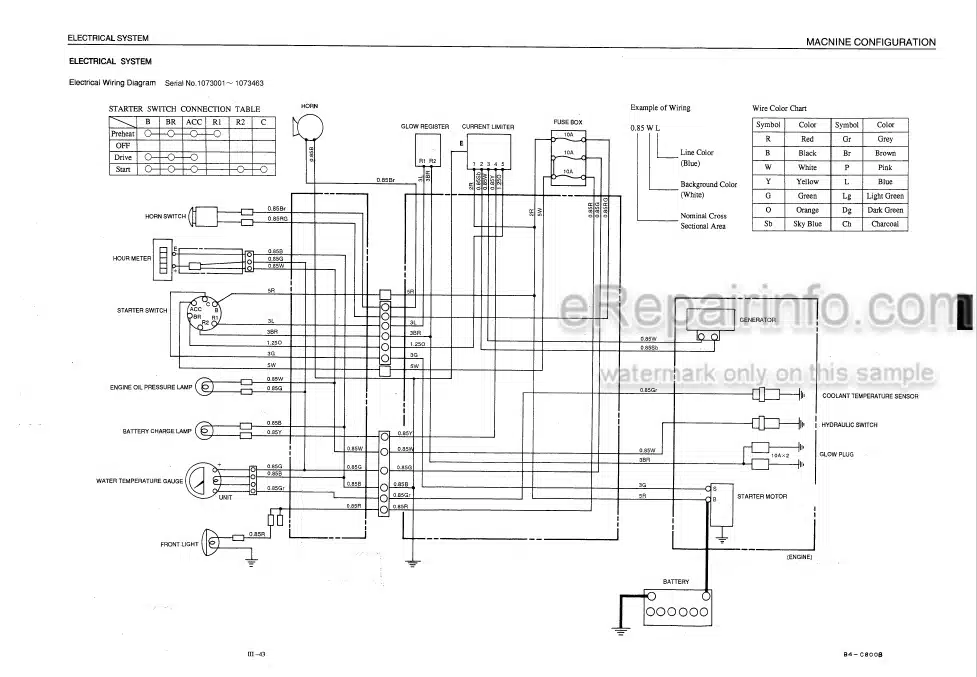

Electrical System
-HYDRAULIC UNITS
Hydraulic Pump
Control Valve
Cylinder
Travel Motor
Slew Motor
Swivel Joint
-TROUBLESHOOTING
Overall Machine

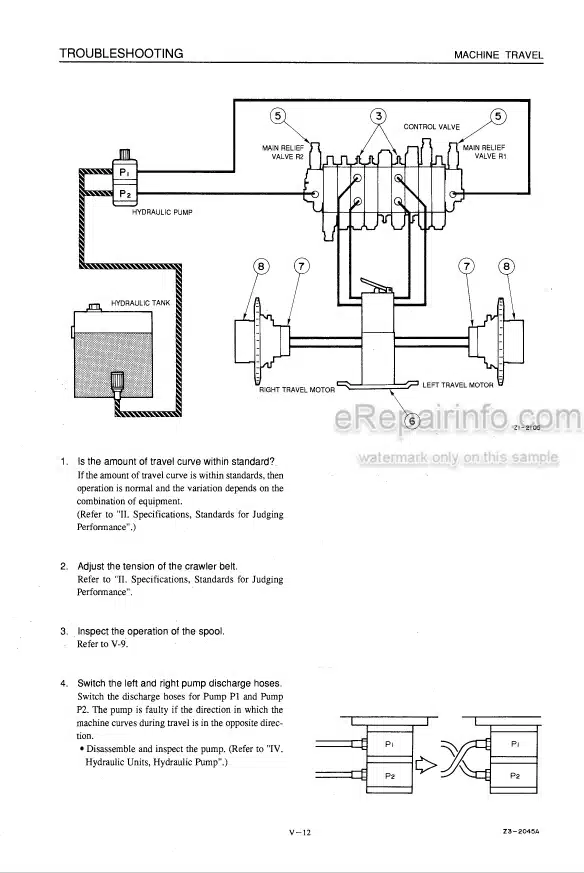

Machine Travel
Slewing
Boom
Arm
Bucket
Boom Swing
Dozer Balade
Spanner
