Takeuchi TB070W Workshop Manual Compact Excavator 17N0004- manuals in PDF

$24.00

Factory Workshop Manual For Takeuchi Compact Excavator. Manual Contains Illustrations, Instructions, Diagrams For Step By Step Remove And Install, Assembly And Disassembly, Service, Inspection, Repair, Troubleshooting, Tune-Ups.

Photo 9 - Takeuchi TB070W Workshop Manual Compact Excavator 17N0004-
Takeuchi TB070W Workshop Manual Compact Excavator 17N0004- $24.00
  • Lifetime Free Access
  • Instant Downloads
  • Support and Instructions with download
Guaranteed Safe Checkout

Factory Workshop Manual For Takeuchi Compact Excavator. Manual Contains Illustrations, Instructions, Diagrams For Step By Step Remove And Install, Assembly And Disassembly, Service, Inspection, Repair, Troubleshooting, Tune-Ups.

Format: PDF
Language: English
Pages: 488

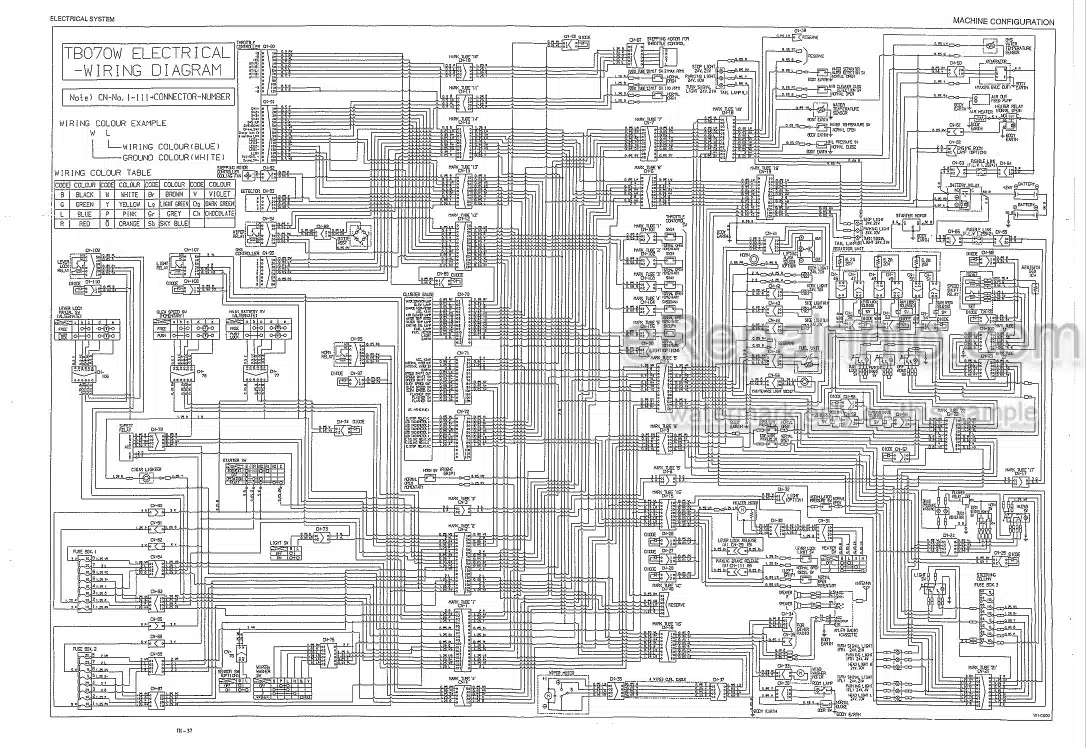

Wiring Diagrams: Yes
Hydraulic Diagrams: Yes

Model

Takeuchi Compact Excavator
TB070W
Serial No. 17N0004-

Contents

-GENERAL
General Cautions
Cautions During Disassembly And Assembly
Cautions During Removal And Installation Of The Hydraulic Units
Cautions During Removal And Installation Of Piping
Handling Of Seals
Tightening Torques
-SPECIFICATIONS
Names of Components
Specification Diagrams
Lifting Capacities

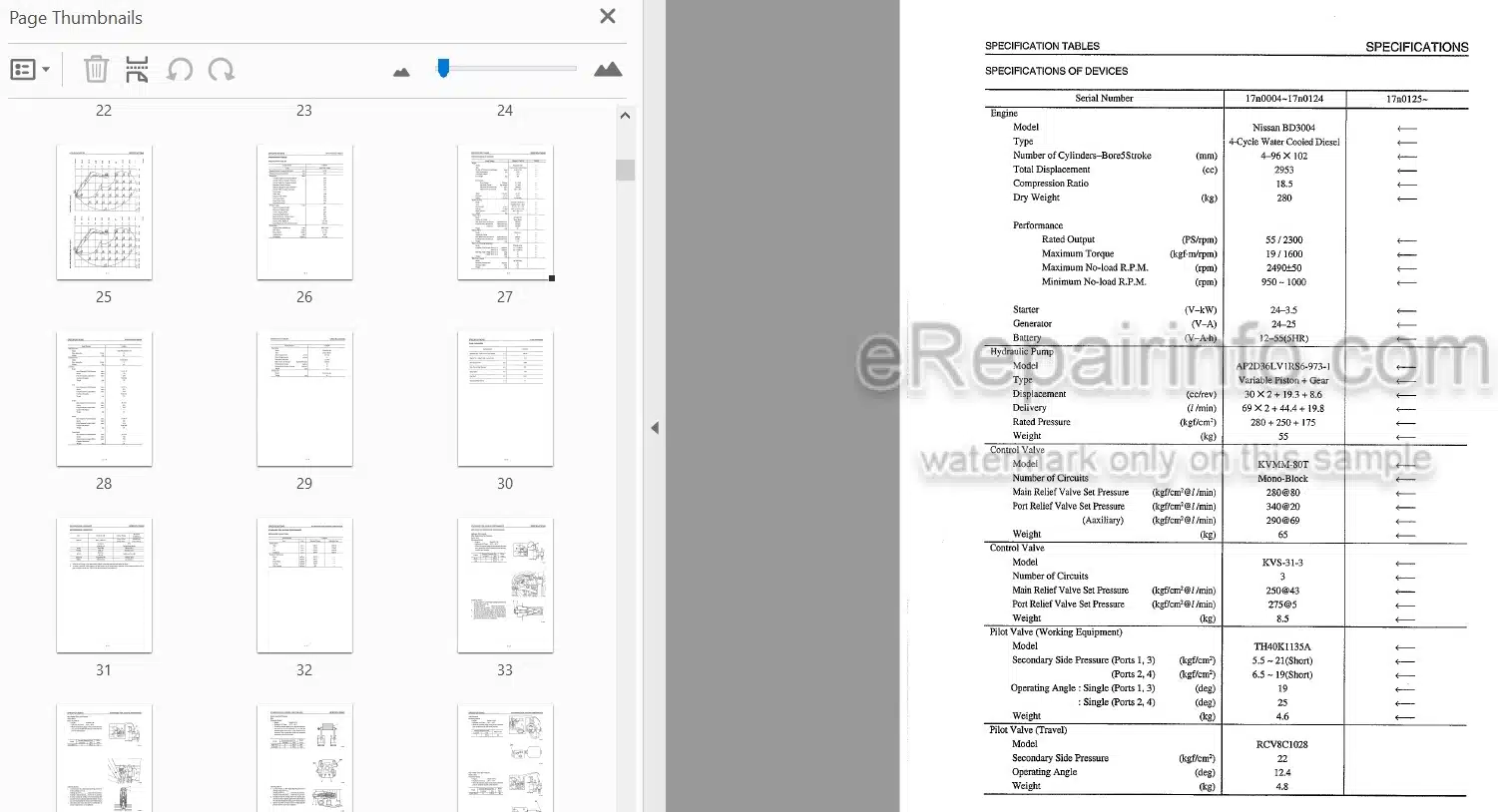

Specification Tables
Fluid Capacities
Recommended Lubricants
Standards for Judging Performance
-MACHINE CONFIGURATION
Drive System
Slew System
Upper Frame
Control System
Attachments
Hydraulic System
Electrical System
Engine Power
Auxiliary Engine Starting Device (Automatic Glow Circuit)
Engine Throttle Control Device
Cluster Gauge
ACC Fuse Circuitry
-HYDRAULIC UNITS
Hydraulic Pump
Control Valve (Mono-Block)
Control Valve (3-Section)
Solenoid Valve (3-Section)
Solenoid Valve (2-Section)

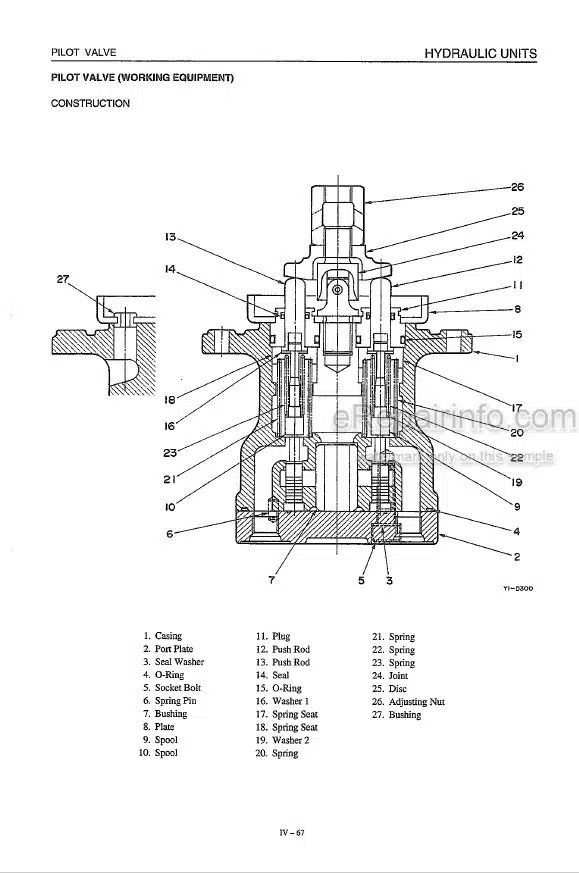

Pilot Valve (Working Equipment)
Pilot Valve (Travel)
Cylinder
Slew Motor
Axle
Travel Motor
Ram Lick Cylinder
Swivel Joint
-TROUBLESHOOTING
Overall Machine
Slewing
Boom
Arm
Bucket
Boom Swing
-ENGINE
General
Inspection And Service
Oil,Grease And Fluid
Engine Servicing

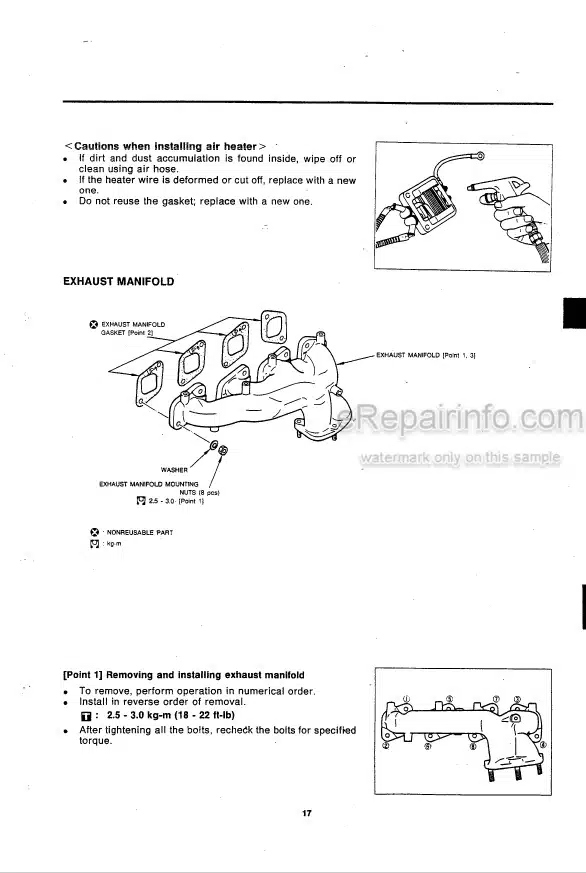

Engine Main Body Overhauling
Service Data
Troubleshooting

What you get

You will receive PDF file with high-quality manual on your email immediately after the payment.

Reviews

There are no reviews yet

Only logged in customers who have purchased this product may leave a review.
