Takeuchi TB108 Operators Manual Compact Excavator 108202134- manuals in PDF

$14.95

Factory Operators Manual For Takeuchi Compact Excavator. Manual For Owners And Operators. It Contains Important Information And Instructions For Maintenance Description Of The Functions And Capabilities Of The System. Description Of Possible Faults / Problems And Their Solution.

Photo 8 - Takeuchi TB108 Operators Manual Compact Excavator 108202134-
Takeuchi TB108 Operators Manual Compact Excavator 108202134- $14.95
  • Lifetime Free Access
  • Instant Downloads
  • Support and Instructions with download
Guaranteed Safe Checkout

Factory Operators Manual For Takeuchi Compact Excavator. Manual For Owners And Operators. It Contains Important Information And Instructions For Maintenance Description Of The Functions And Capabilities Of The System. Description Of Possible Faults / Problems And Their Solution.

Format: PDF
Language: English
Quantity of Manuals: 2
Pages: 172; 172
Issue: may 2010; february 2012
Bookmarks: Yes
Searchable: Yes

Model

Takeuchi Compact Excavator
TB108
Serial No. 108202134-

Contents

SAFETY ALERT SYMBOL
SIGNAL WORDS
EXPLANATION OF GRAPHICAL SYMBOLS
INTRODUCTION
MACHINE DESCRIPTION
-SAFETY
General Precautions
Preparing Precautions
Starting Precautions
Operating Precautions
Stopping Precautions
Transporting Precautions
Maintenance Precautions
Safety Signs (decals)
-CONTROLS

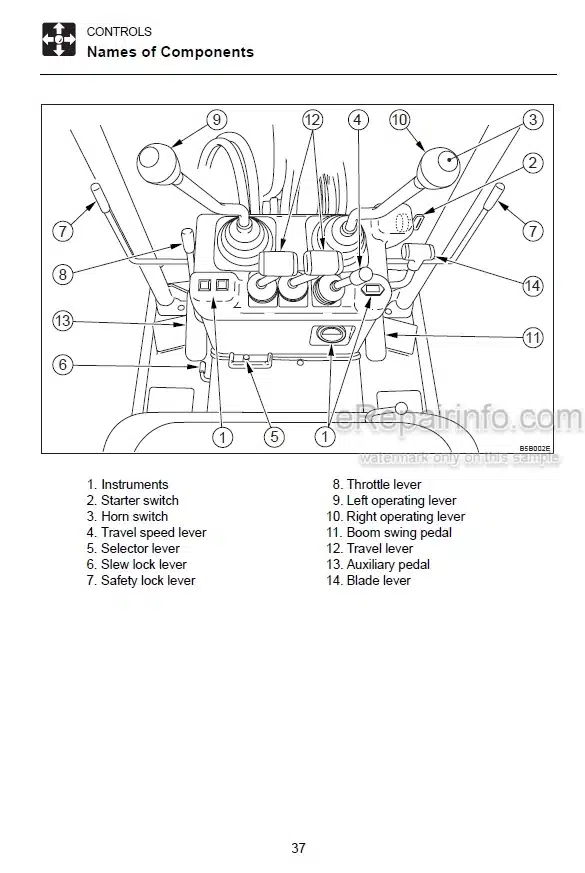

Names of Components
Doors and Covers
Seat and Seat Belt
Instruments
Switches
Levers and Pedals
Accessories
-OPERATION
Before Starting Operation
Starting and Stopping the Engine

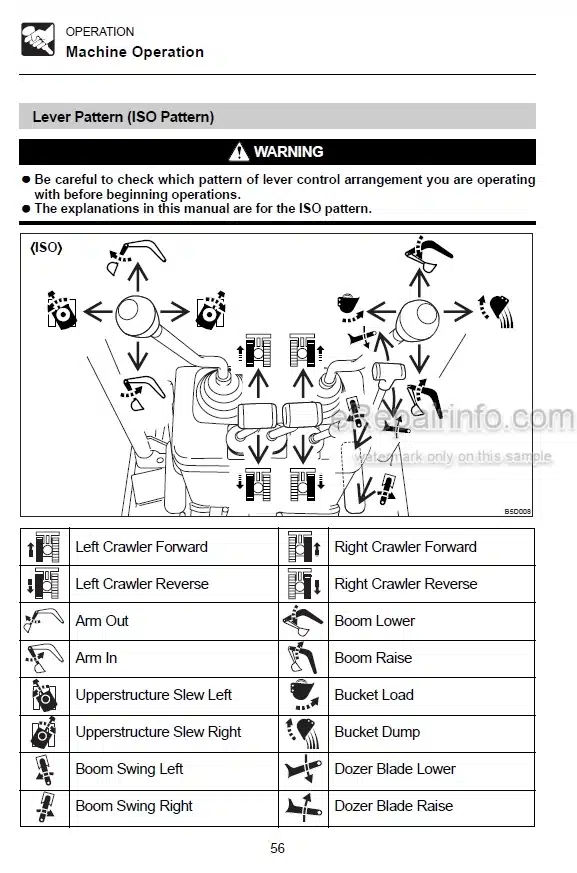

Machine Operation
Operating Procedures
Parking the Machine
Handling in Cold Weather
Handling Rubber Crawlers
-TRANSPORT
Loading and Unloading
Securing the Machine
Cautions on Transporting
-MAINTENANCE
General
Service Data
Important Parts
Maintenance Chart
Walk-Around Inspection
Daily Inspection (Every 10 Hours)
After First 50 Hours (New Machines Only)
Every 50 Hours
Every 100 Hours
After First 250 Hours (New Machines Only)
Every 250 Hours
Every 500 Hours
Every 1000 Hours
Every 2000 Hours
When Required
Long-term Storage
-TROUBLESHOOTING
Symptoms that are not Malfunctions
If the Engine Overheats
If the Battery Goes Dead
After the Fuel Runs Out
If a Fuse Blows
If a Warning Lamp is illuminated
Other Symptoms
Towing
-SPECIFICATIONS

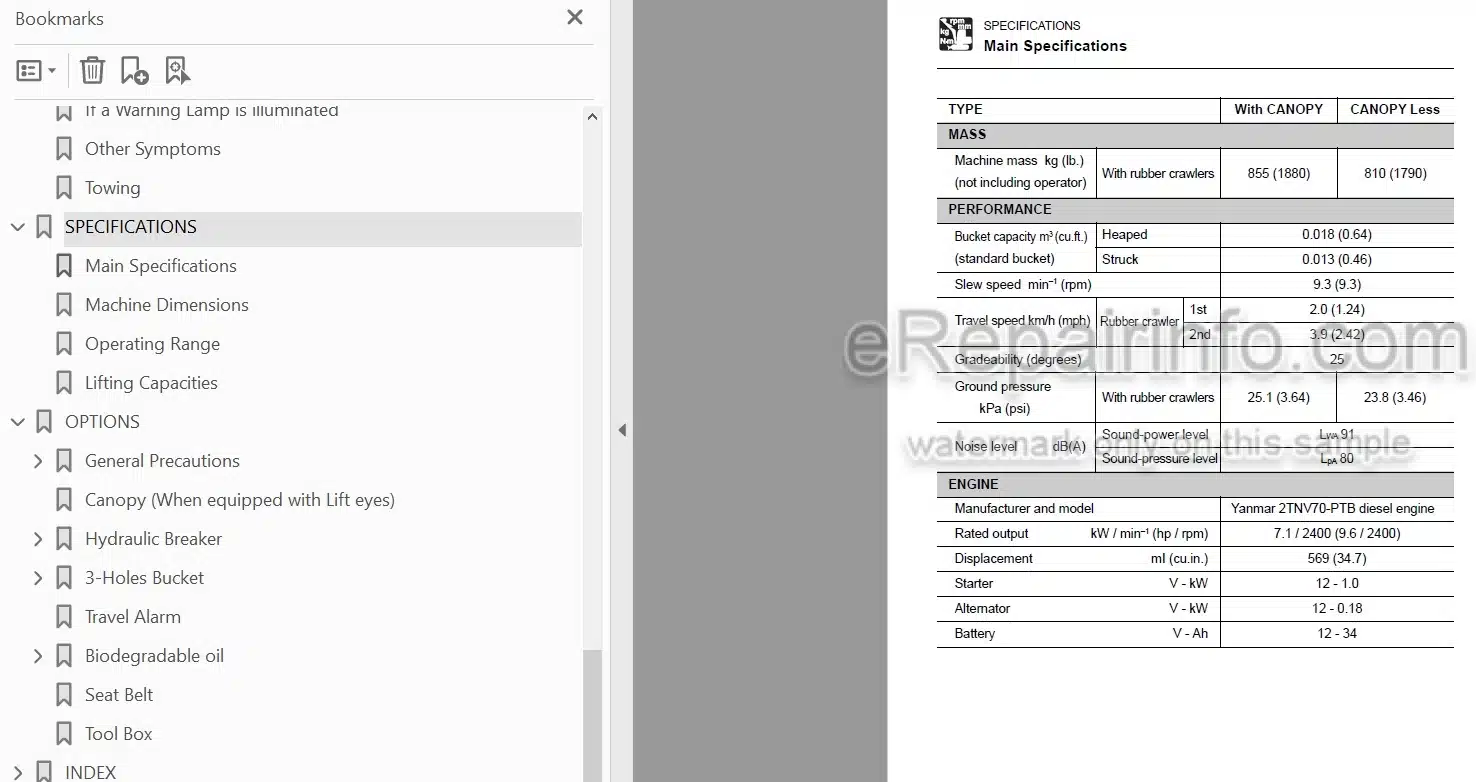

Main Specifications
Machine Dimensions
Operating Range
Lifting Capacities
-OPTIONS
General Precautions
Canopy (When equipped with Lift eyes)
Hydraulic Breaker
3-Holes Bucket
Travel Alarm
Biodegradable oil
Seat Belt
Tool Box
INDEX
FOURTEENTH PUBLISHED JUNE 2011 OE-TB108-D
CALIFORNIA PROPOSITION 65 WARNING
EC-CONFORMITY CERTIFICATE

What you get

You will receive PDF file with high-quality manual on your email immediately after the payment.
