Takeuchi TB25 TB250 Parts Manual Excavator manuals in PDF

$14.95

Factory Parts Manual For Takeuchi TB25, TB250 Excavator. Detailed Illustrations and Parts Lists.

(1 customer review)
Photo 8 - Takeuchi TB25 TB250 Parts Manual Excavator
Takeuchi TB25 TB250 Parts Manual Excavator $14.95
  • Lifetime Free Access
  • Instant Downloads
  • Support and Instructions with download
Guaranteed Safe Checkout

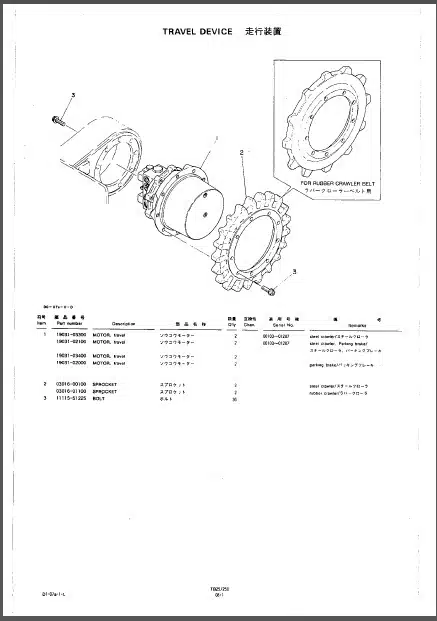

Factory Parts Manual For Takeuchi TB25, TB250 Excavator. Detailed Illustrations and Parts Lists.

Format: PDF
Language: English
Pages: 230
Parts List: Yes
Parts Exploded view: Yes

Model

TB25
TB250

Contents

-LOWER MACHINERY
Lower Frame
Crawler Belt
Track Roller
Front Idler
Track Spring
Travel Device
Blade
Piping: Lower
-UPPER MACHINERY 1
Slewing Device
Turntable
Travel Lever
Operation Lever
Switching Lever
-UPPER MACHINERY 2
Engine & Accessories
Control Box
Engine Control
Electrical
-UPPER MACHINERY 3
Grease Piping
Valve & Accessories
Piping Upper
Pump Drive
Hydraulic Tank
Fuel Tank
-UPPER MACHINERY 4
Cover
Seat
Cabin
Canopy
Heater
-HOE ATTACHMENT
Hoe
8Ucket
Piping: Hoe
-OTHERS
Sticker
Tool
-HYDRAULIC DEVICE
Swivel Joint
Control Valve
Control Valve; Sub
Joy Stick Lever
Selector Valve
Hydraulic Valve
C B Valve
Double Pilot Check Valve
Double Pilot Check Valve
Relief Valve
Boom Cylinder
B00M Cylinder
Arm Cylinder
Bucket Cylinder
Blade Cylinder
Swing Cylinder
Travel Motor
Slew Motor
Hydraulic Pump
-OPTION
Bucket
Ejector Bucket
Mirror

What you get

You will be given access to the link for downloading high quality PDF Manual (.pdf / .zip file) immediately after you pay.
