Takeuchi TB250 Parts Manual Excavator manuals in PDF

$14.95

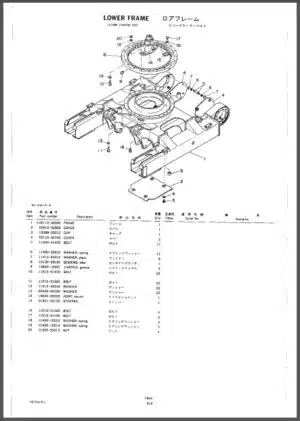

Factory Parts Manual For Takeuchi Excavator TB250; Engine 4TNV88-BPTB, 4TNV88-BPTB1. Detailed Illustrations and Parts Lists.

Photo 8 - Takeuchi TB250 Parts Manual Excavator
Takeuchi TB250 Parts Manual Excavator $14.95
  • Lifetime Free Access
  • Instant Downloads
  • Support and Instructions with download
Guaranteed Safe Checkout

Factory Parts Manual For Takeuchi Excavator TB250; Engine 4TNV88-BPTB, 4TNV88-BPTB1. Detailed Illustrations and Parts Lists.

Format: PDF
Language: English
Number: BK7Z003-3; BK7Z004-1; BK7Z003-2
Quantity of Manuals: 4
Searchable: Yes
Parts List: Yes
Parts Exploded view: Yes

Model

Engine (P-TB250EAC) for TB250 4TNV88-BPTB, 1
TB250 (P-TB250BAJ) BK7Z003-3 S/N 125000001-
TB250 [P-TB250BAM] Book No. BK7Z004-1 S/N 125000001-
TB250 (P-TB250BAI) BK7Z003-2 S/N 125000001-

Contents

* Contents may slightly differ

1.Engine 4TNV88-BPTB, 1
2.Excavator TB250

1.Engine 4TNV88-BPTB, 1

Cylinder Block
Gear Housing
Flywheel Housing & Oil Sump
Cylinder Head & Bonnet
Suction Manifold & Air Cleaner
Exhaust Manifold & Silencer
Camshaft & Driving Gear
Crankshaft & Piston
Lub.Oil System
Cooling Water System
Fuel Injection Pump
Governor
Fuel Injection Valve
Fuel Line
Starting Motor
Generator
Gasket Set

2.Excavator TB250

Lower Frame
Shoe Guide
Center Guide
Crawler Belt
Carrier Roller
Track Roller
Front Idler
Track Adjuster
Travel Device
Slew Bearing
Swivel Joint & Accessories
Dozer Blade
Piping: Lower
Slewing Device
Turntable
Boom Swing
Swing Stopper
Control Lever & Pedal
Dozer Blade Lever
Operation Lever & Stand
Piping; Operation Lever
Engine & Accessories
Air Cleaner (For Double Element)
Drain Plug
Control Box: R.H.
Control Box: L.H.
Engine Control D
Ecel. Unit
Auto Decel
Electrical
Control Unit
Service Detent
Security System
Travel Alarm
Battery
Battery (With Battery Switch)
Canopy Light & Socket
Cab Light
Side Light
Radio
Maintenance Light Socket
Window Washer
Grease Piping
Valve & Accessories
Piping: Upper
Accumulator
Pump Drive
Hydraulic Tank
Fuel Tank & Fuel Piping
Cover
Floor Frame
Floor Mat
Seat
Head Rest
Cab Mount
Cab
Cab Interior
Canopy
Heater
Air Conditioner
Boom
Arm
Middle Arm
Arm
Bucket 1
Bucket 2
Bucket 3
1St Auxiliary Line
2Nd Auxiliary Line
3Rd Auxiliary Line
Decal
Tool & Accessories
Painted Color
Swivel Joint
Control Valve
Block Assy
Pilot Valve
Pilot Valve (R.H.)
Pilot Valve (L.H.)
Handle
Selector Valve
Solenoid Valve
Remote Control Valve
Electrical Proportion Valve
Shut-Off Valve
Boom Cylinder
Arm Cylinder
Bucket Cylinder
Dozer Blade Cylinder
Angle Blade Cylinder
Swing Cylinder
Travel Motor
Slew Motor
Hydraulic Pump

What you get

You will be given access to the link for downloading high quality PDF Manual (.pdf / .zip file) immediately after you pay.
