Takeuchi TB25FR Operators Manual Compact Excavator 12810001- manuals in PDF

Factory Operators Manual For Takeuchi Compact Excavator. Manual For Owners And Operators. It Contains Important Information And Instructions For Maintenance Description Of The Functions And Capabilities Of The System. Description Of Possible Faults / Problems And Their Solution.

Format: PDF
Language: English
Pages: 163
Issue: june 1998
Bookmarks: Yes
Searchable: Yes

Model

Takeuchi Compact Excavator
TB25FR
Serial No. 12810001-

Contents

SAFETY ALERT SYMBOL
SIGNAL WORDS
INTRODUCTION
MACHINE DESCRIPTION
-SAFETY
General Precautions
Preparing Precautions
Starting Precautions
Operating Precautions
Stopping Precautions
Transporting Precautions
Maintenance Precautions
Safety Signs (Decals)
-CONTROLS
Names of Components
Doors and Covers
Seat and Seat Belt
Instrument Panel
Switches
Levers and Pedals
Accessories
-OPERATION
Before Starting Operation
Starting and Stopping the Engine

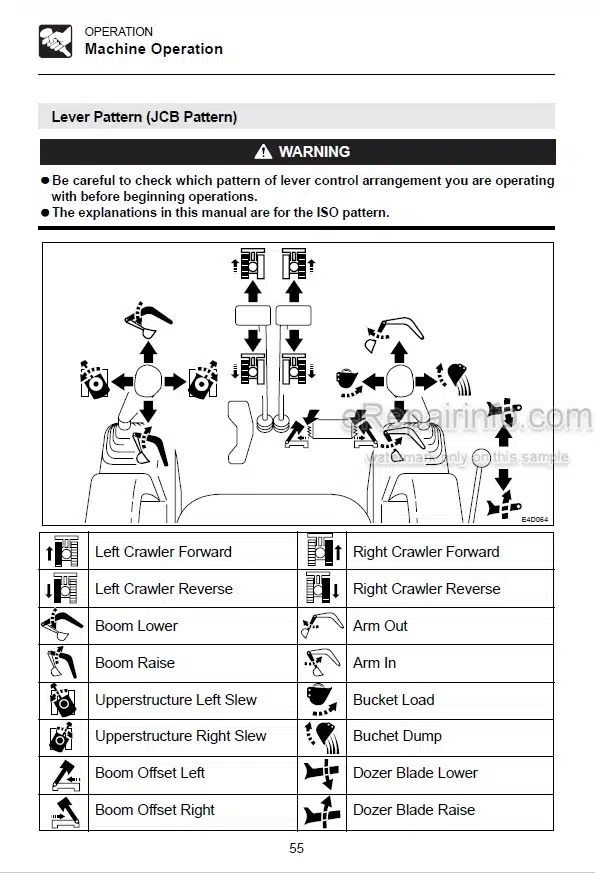

Machine Operation
Operating Procedures
Parking the Machine
Handling in Cold Weather
Handling Rubber Crawlers
-TRANSPORT
Loading and Unloading
Securing the Machine
Cautions on Transporting
-MAINTENANCE
General
Service Data
Maintenance Chart

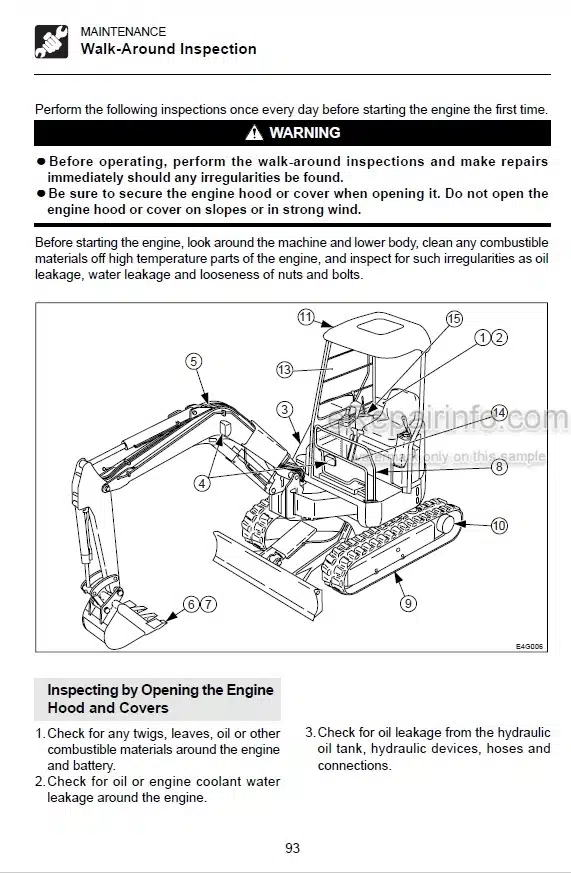

Walk-Around Inspection
Daily Inspection (Every 10 Hours)
After First 50 Hours (New Machines Only)
Every 50 Hours
Every 100 Hours
After First 250 Hours (New Machines Only)
Every 250 Hours
Every 500 Hours
Every 1000 Hours
Every 2000 Hours
When Required
Long-term Storage
-TROUBLESHOOTING
Symptoms that are not Malfunctions
If the Engine Overheats
If the Battery Goes Dead
After the Fuel Runs Out
If a Fuse Blows
If a Warning Lamp Lights
Other Symptoms
-SPECIFICATIONS

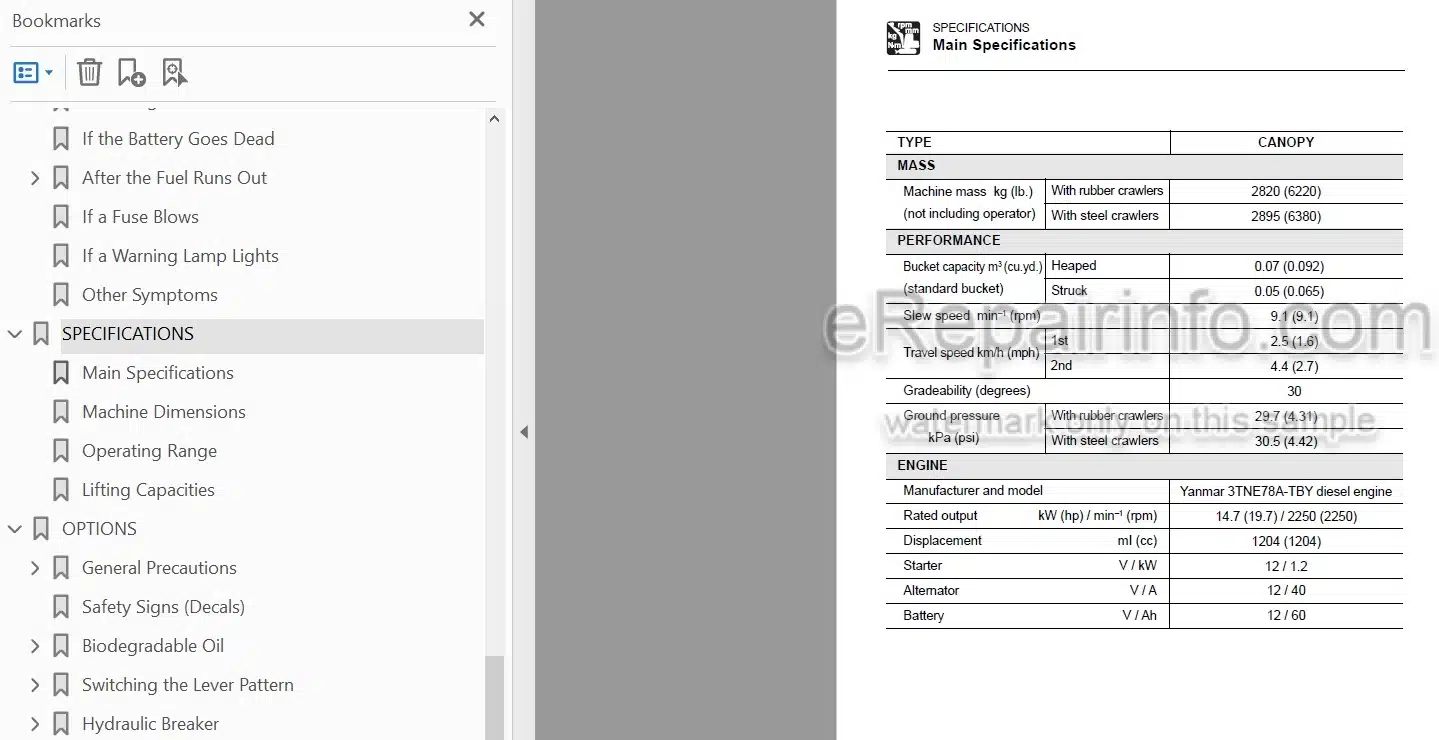

Main Specifications
Machine Dimensions
Operating Range
Lifting Capacities
-OPTIONS
General Precautions
Safety Signs (Decals)
Biodegradable Oil
Switching the Lever Pattern
Hydraulic Breaker
INDEX
CALIFORNIA PROPOSITION 65 WARNING
FIRST PUBLISHED JUNE 1998

What you get

You will receive PDF file with high-quality manual on your email immediately after the payment.
