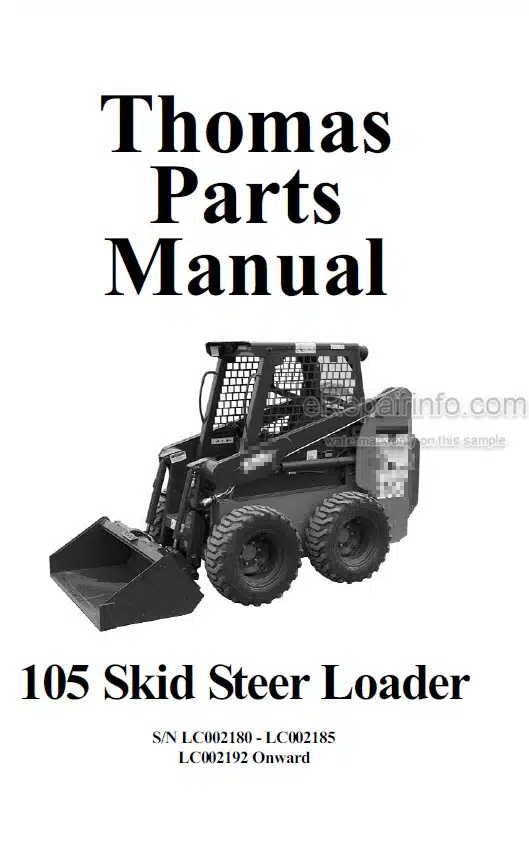

Thomas 105 Parts Manual Skid Steer Loader 53766 manuals in PDF

Factory Parts Manual For Thomas Skid Steer Loader. Detailed Illustrations and Parts Lists, Wiring Diagrams.

Format: PDF
Language: English
Pages: 134
Number: 53766
Searchable: Yes

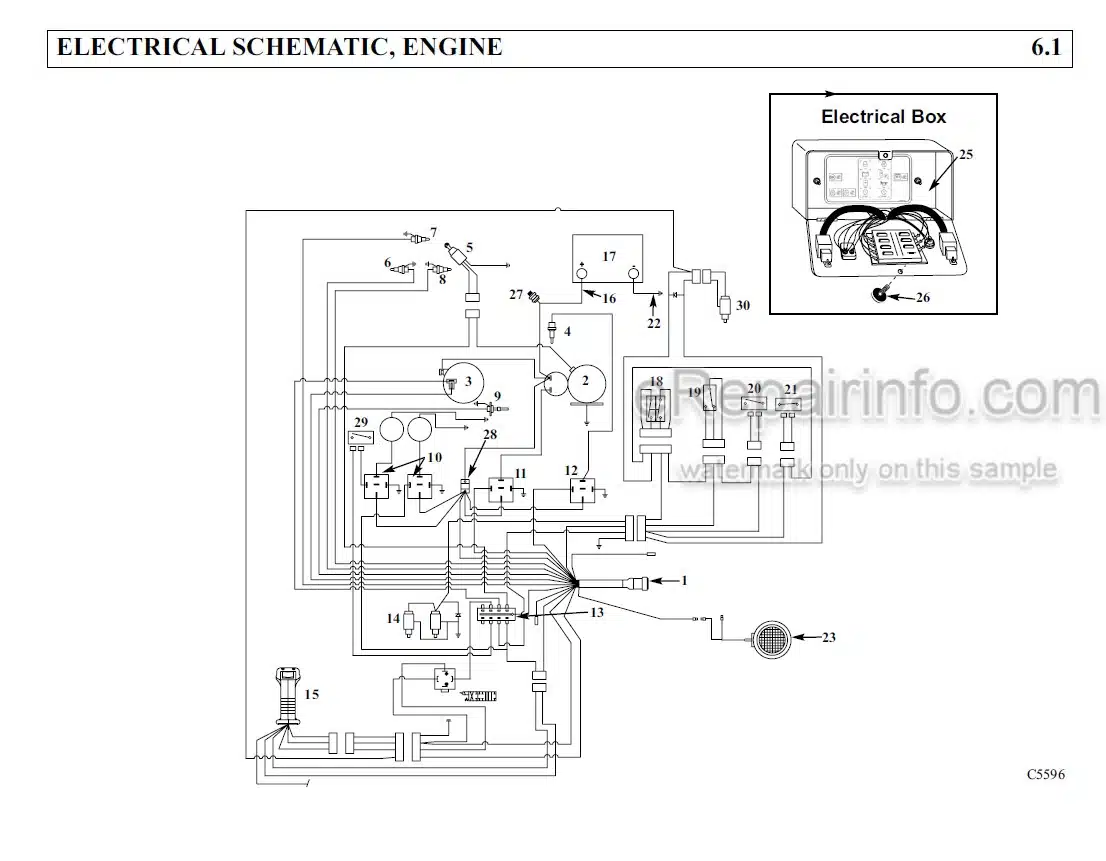

Wiring Diagrams: Yes
Parts List: Yes

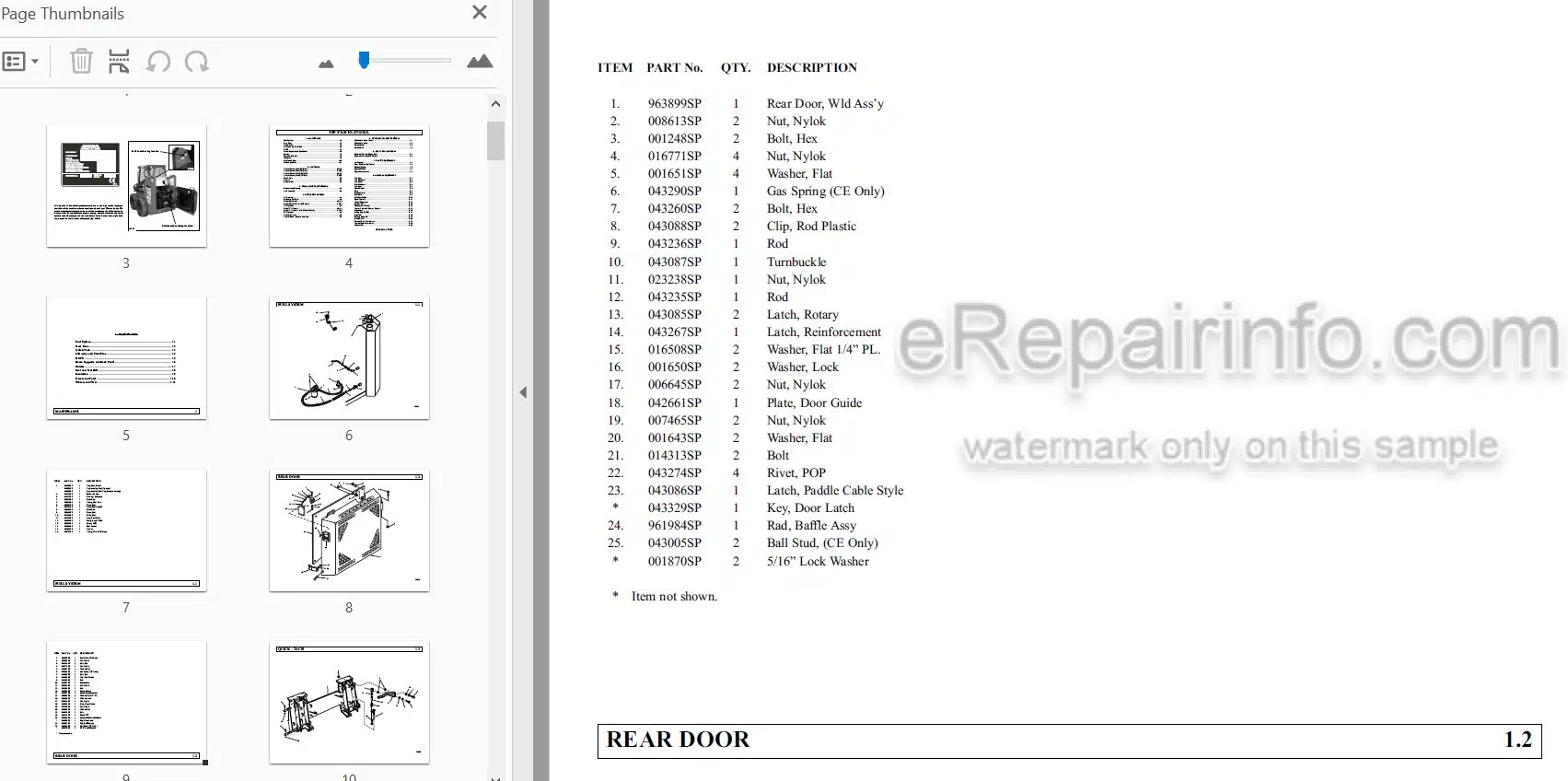

Parts Exploded view: Yes

Model

Thomas Skid Steer Loader
105

S/N LC002180 – LC002185
S/N LC002192 Onward

Contents

-MAINFRAME
Fuel System
Rear Door
Quick-Tach
Lift Arms and Pivot Pins
ROPS
Boom Supports and Dash Panel
Shields
Seat and Seat Belt
Insulation
Decals and Paint
Wheels and Tires
-CONTROLS
Control Levers, Foot (RH Side)(A)
Control Levers, Foot (LH Side)(B)
Control Levers, Hand (RH Side)(A)
Control Levers, Hand (LH Side)(B)
Foot Pedals
Throttle
Restraint Bar
-FINAL DRIVE TRANSMISSION
Transmission Housing
Axle Assembly
-HYDRAULIC SYSTEM
Oil Reservoir
Hydraulic Oil Filter
Boom Lift Circuit(A)
Boom Lift Circuit – w/ Self Level
Lift Cylinder
Bucket Tilt Circuit(A)
Bucket Tilt Circuit – w/ Self Level Valve)
Tilt Cylinder
Auxiliary Circuit
Control Valve – Electric Auxiliary
-HYDROSTATIC DRIVE SYSTEM
Hydrostatic Drive Circuit
Hydrostatic Pump
Torque Motor
Brake Valve
-ELECTRICAL SYSTEM
Electrical Wiring (Engine Side)
Electrical Wiring (ROPS Side)
-ENGINE EQUIPMENT
Air Cleaner
Fan / Radiator / Oil Cooler
Exhaust System
Engine Mounts
Engine Accessories
-OPTIONAL EQUIPMENT
Cab Liner
Cab Enclosure
Cab Heater
Side Windows
Cab Door
Block Heater
Horn
Backup Alarm
Seat Belts
Self Level Valve
Hand Controls
Wheel Equipment
Purifier Kit
Hydraulic Oil Heater
Interior Light and Exterior Trouble
Precleaner
Lifting Lug (ROPS)
Light Kit
Driving Lamp Kit
Stop Switch
External Rear View Mirror
Internal Rear View Mirror
Adaptor Kit

What you get

You will receive PDF file with high-quality manual on your email immediately after the payment.
