Factory Repair Manual For Thomas Skid Steer Loader. Manual Contains Illustrations, Instructions, Diagrams For Step By Step Remove And Install, Assembly And Disassembly, Service, Inspection, Repair, Troubleshooting, Tune-Ups.
Format: PDF
Language: English
Pages: 258
Number: 49702 (september 2004)
Searchable: Yes

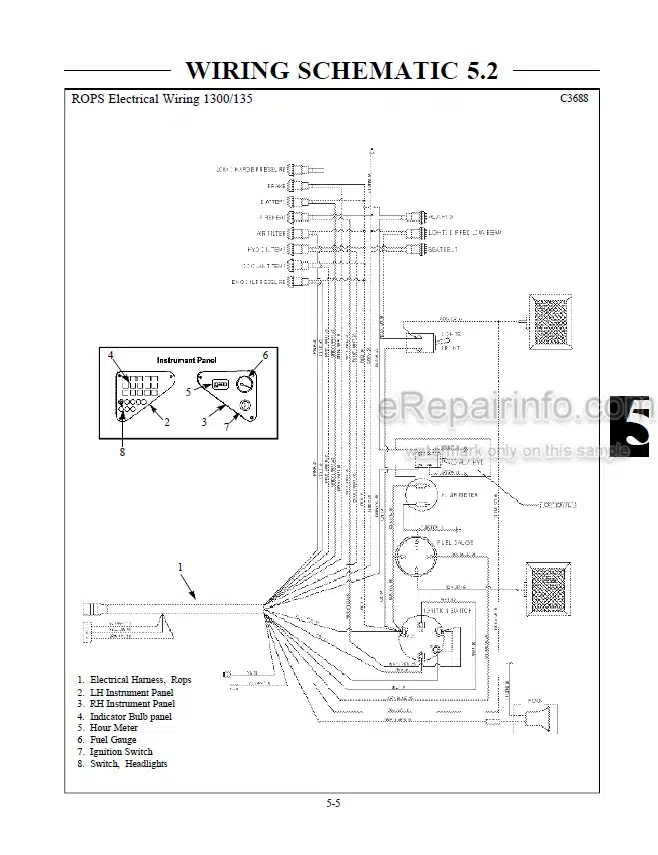

Wiring Diagrams: Yes
Hydraulic Diagrams: Yes
Model
Thomas Skid Steer Loader
135
197
153
1330 Protough
Contents
-HYDRAULIC SYSTEM
Hydraulic Circuit
Gear Pump
Control Valve
Hydraulic Cylinders
Oil Filter
Oil Cooler
Oil Reservoir
Trouble Shooting
Torque Chart
Conversion Chart
-HYDROSTATIC DRIVE SYSTEM
Hydrostatic Circuit
Specifications
General Information
Trouble Shooting
Pressure Tests
Towing Procedure
Flushing The Hydraulic System
Start – up Procedure
Gear Pump Replacement
Tandem Pump Replacement
Tandem Pump Parts Diagram
Drive Motor
Torque Specifications
-FINAL DRIVE
Specifications and Maintenance
Lubrication
Drive Chain
Chain Tightener
Drive Motor Sprocket

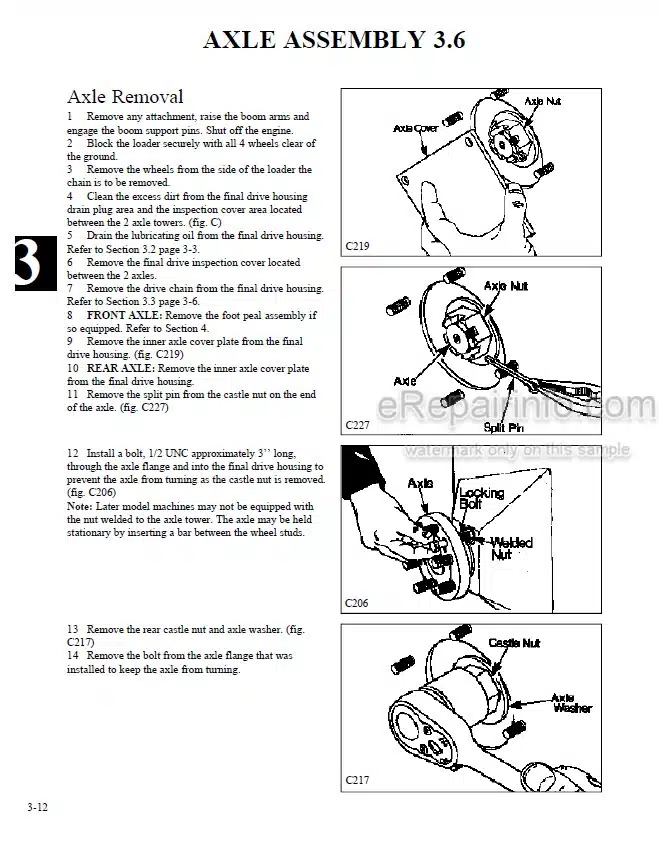

Axle Assembly
Trouble Shooting
-CONTROLS
Steering
Foot Pedals
Hand Controls
Throttle
Restraint Bar
Parking Brake
Trouble Shooting
-ELECTRICAL
Specifications
Wiring Schematics
Instrumentation
Ignition Switch
Engine Glow Plugs
Battery
Electrical Panel
Starter Circuit
Charging Circuit
Safety Circuit
Auxiliary Circuit
Accessory Circuit
Trouble Shooting
-MAIN FRAME
Quick – Tach
Boom Arms
Boom Support
ROPS
Rear Door
-ENGINE
Maintenance
Cylinder Head
Replacement
Specifications
Trouble Shooting
-MAINTENANCE & SPECIFICATIONS
Maintenance
Trouble Shooting
Special Tools

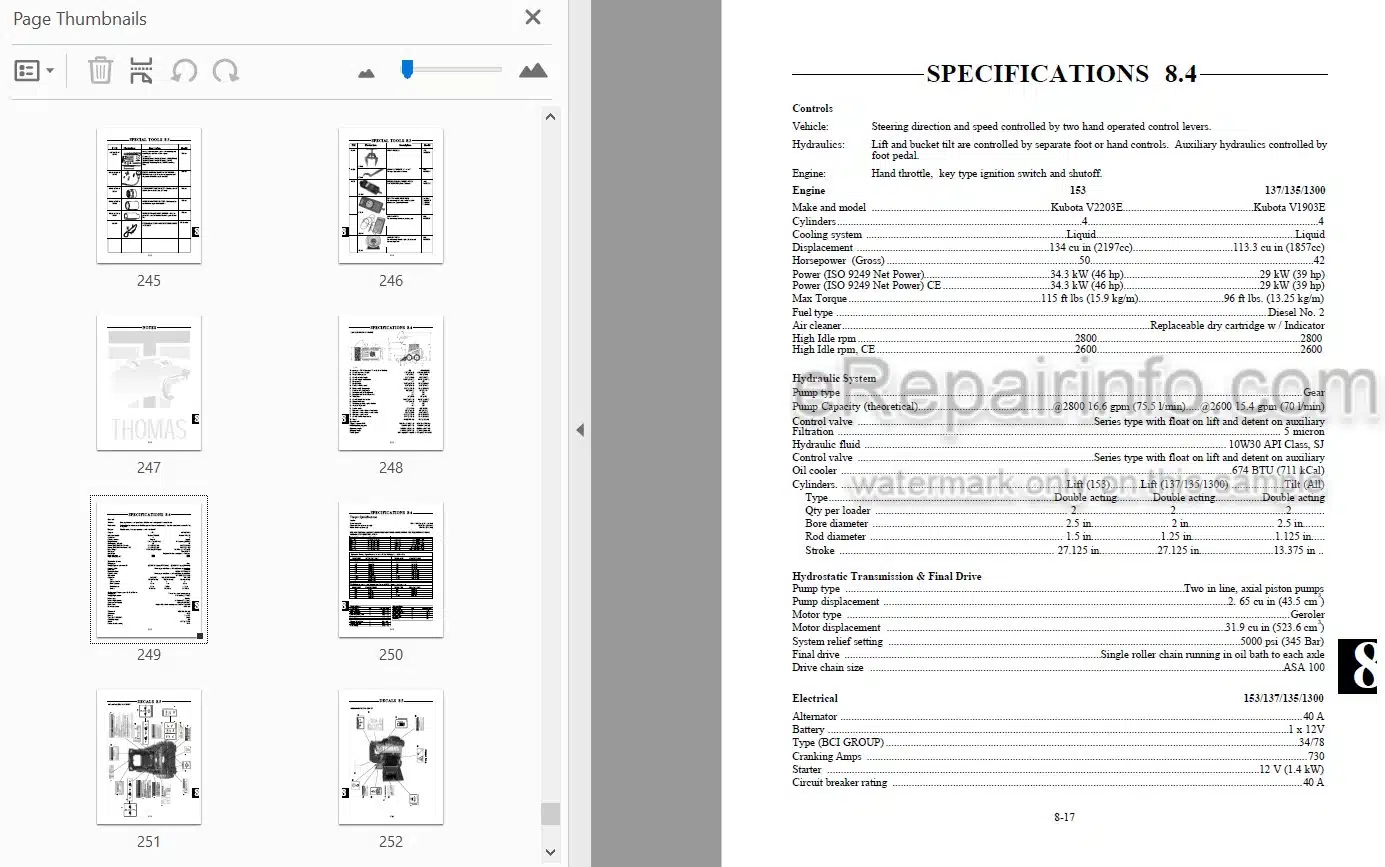

Specifications
Decals
