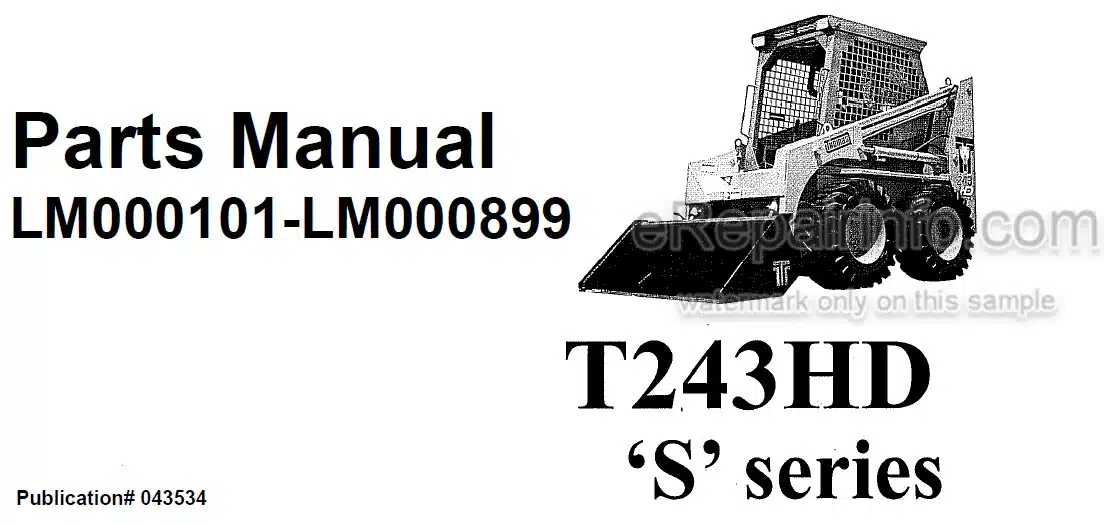

Factory Parts Manual For Thomas Skid Steer Loader. Detailed Illustrations and Parts Lists, Wiring Diagrams.
Format: PDF
Language: English
Pages: 132
Number: 043534

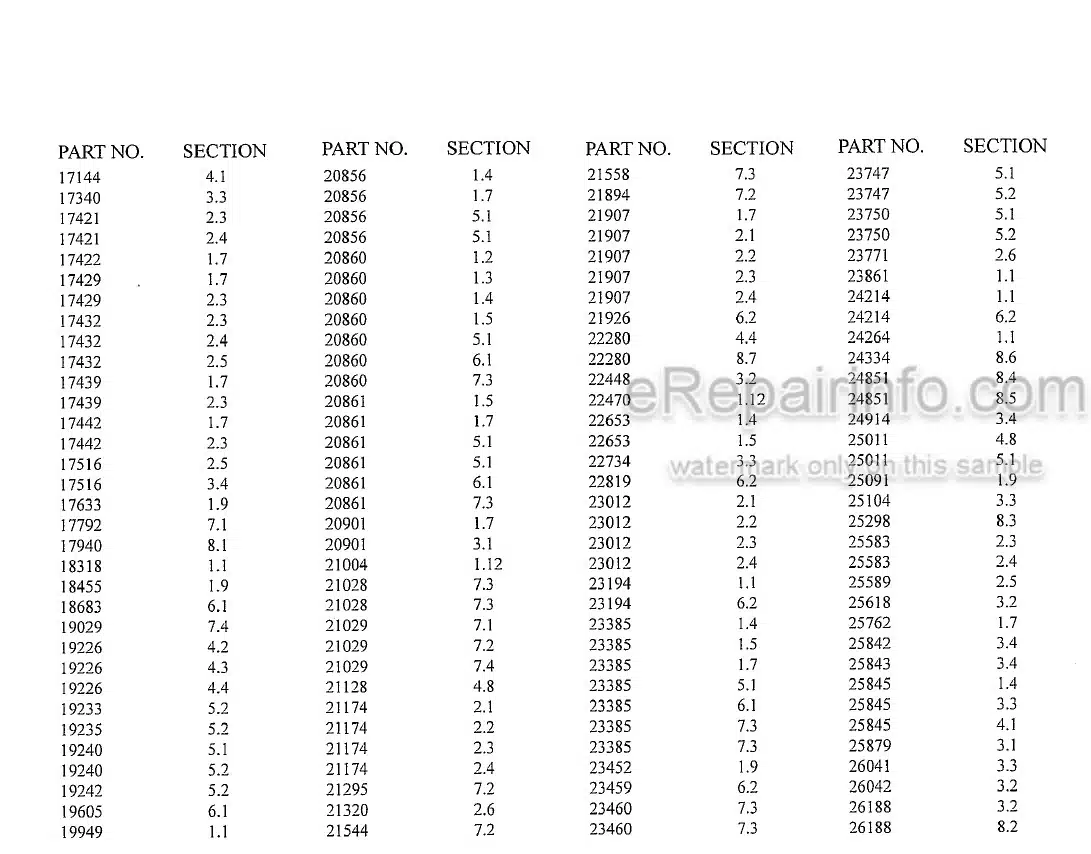

Parts List: Yes

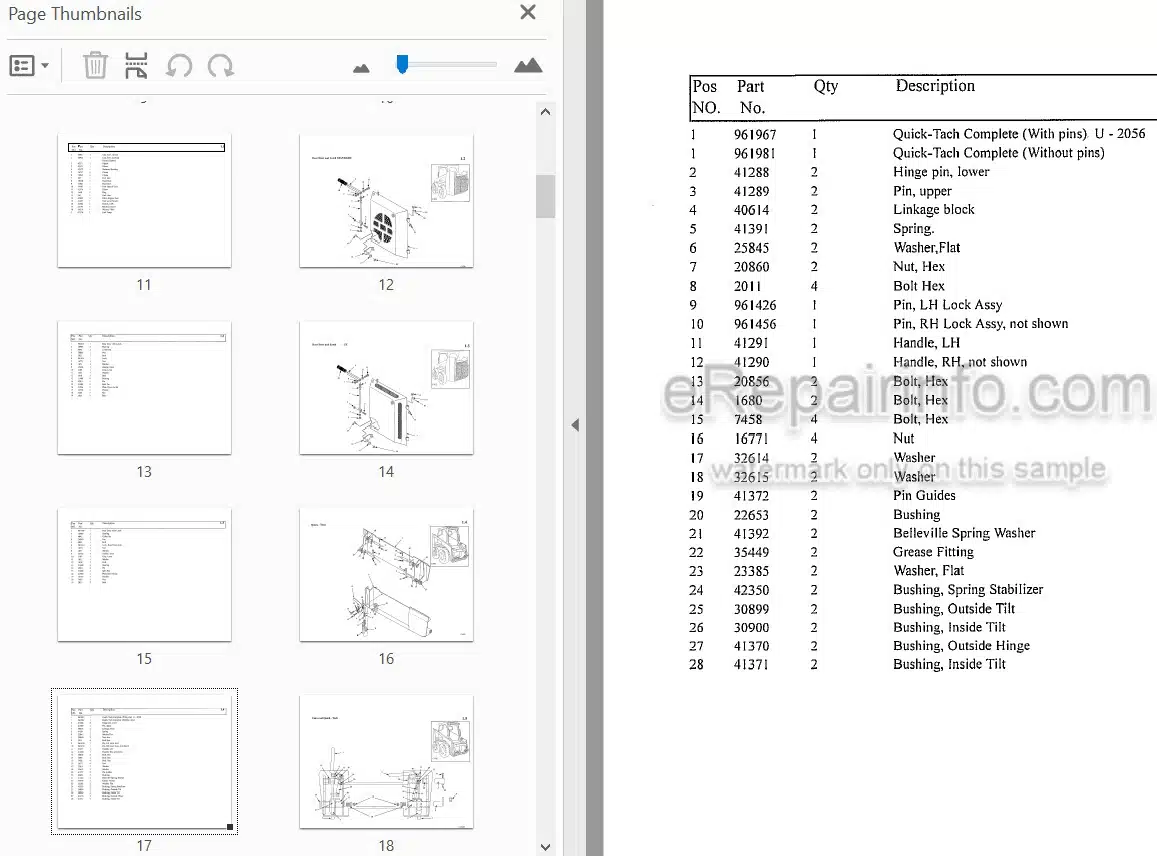

Parts Exploded view: Yes
Model
Thomas Skid Steer Loader
T243HD
S Series
Serial No. LM000101-LM000899
Contents
-MAINFRAME
Fuel System
Rear Door
Quick-Tach
Universal Quick-Tach
Scat, and Scat Bell
Shields
Insulation
ROPS Assembly
Boom Supports
Pivot Pins
Boom Lockdown
-CONTROLS
Control Levers (RH Side)
Control Levers (LH Side)
Foot Pedals
Throttle
Restraint Bar and Brake Cable
Control Handle with Switch LH
-FINAL DRIVE TRANSMISSION
Transmission Housing
Axle Assembly
Idler Sprocket and Drive Chains
Parking Brake
-HYDRAULIC SYSTEM
Oil Reservoir
Boom Lift Circuit
Bucket Tilt Circuit
Auxiliary Hydraulic Circuit
Control Valve
Control Valve Locks
Hydraulic Oil Filter
Hydraulic Oil Cooler and Fan Assembly
Lift Cylinder
Tilt Cylinder
-HYDROSTATIC DRIVE SYSTEM
Hydrostatic Drive Circuit (RH Side)
Hydrostatic Drive Circuit (LH Side)
Hydrostatic Pump
-ELECTRICAL SYSTEM
Electrical Wiring (ROPS Side)
Electrical Wiring (Engine Side )
-ENGINE EQUIPMENT
Air Cleaner
Exhaust System
Engine Mounts , Fan Guard
Universal Joint
Engine Accessories, Filters, Belt, Heater
-OPTIONAL EQUIPMENT
Horn Kit
Wheel Equipment
Cab Door
Strobe Light Kit
Directional Light Kit
ROPS Windows
Cab Heater
