Factory Repair Manual For Thomas Skid Steer Loader. Manual Contains Illustrations, Instructions, Diagrams For Step By Step Remove And Install, Assembly And Disassembly, Service, Inspection, Repair, Troubleshooting, Tune-Ups.
Format: PDF
Language: English
Pages: 222
Number: 46563 (november 2000)

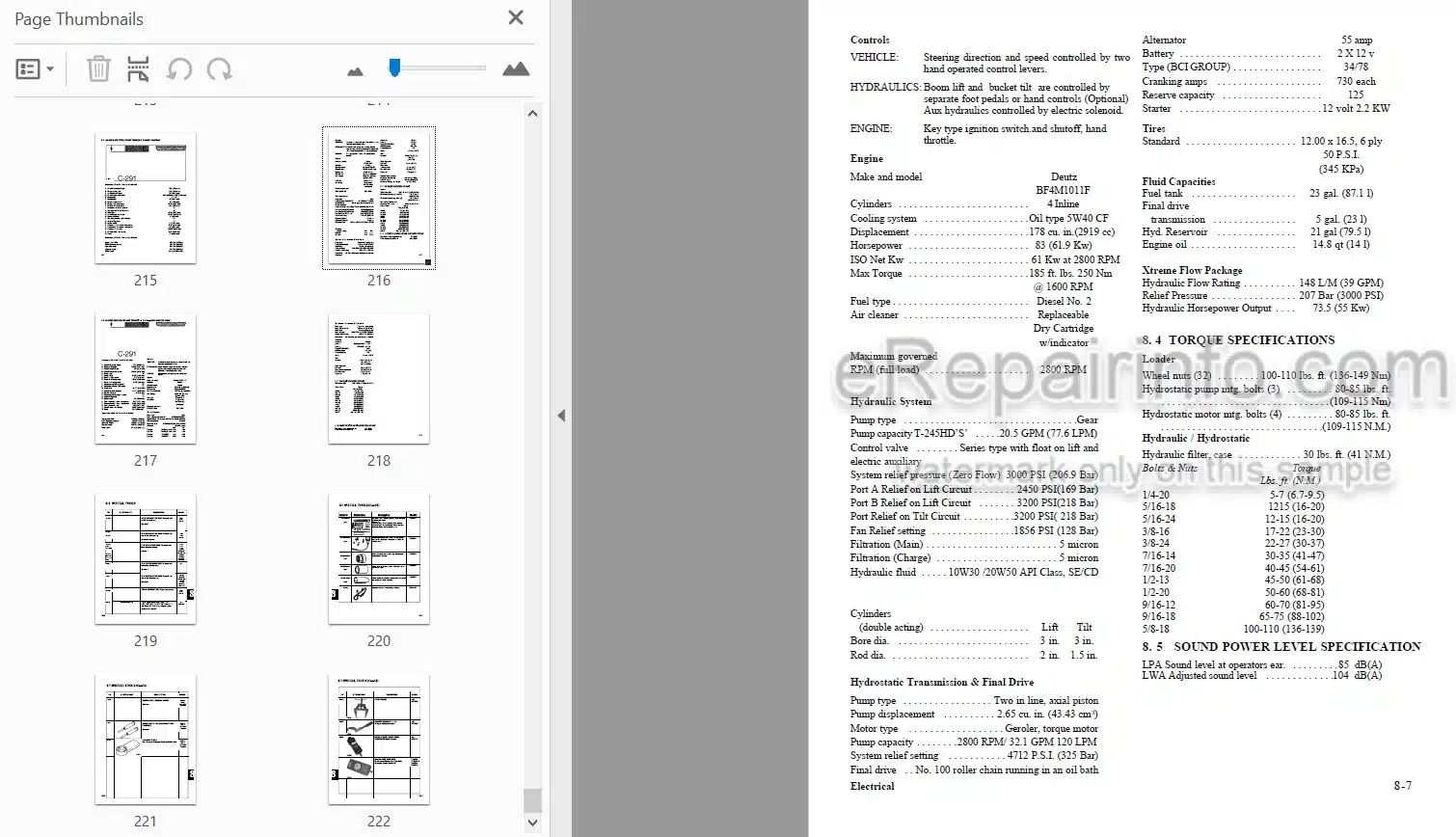

Searchable: Yes

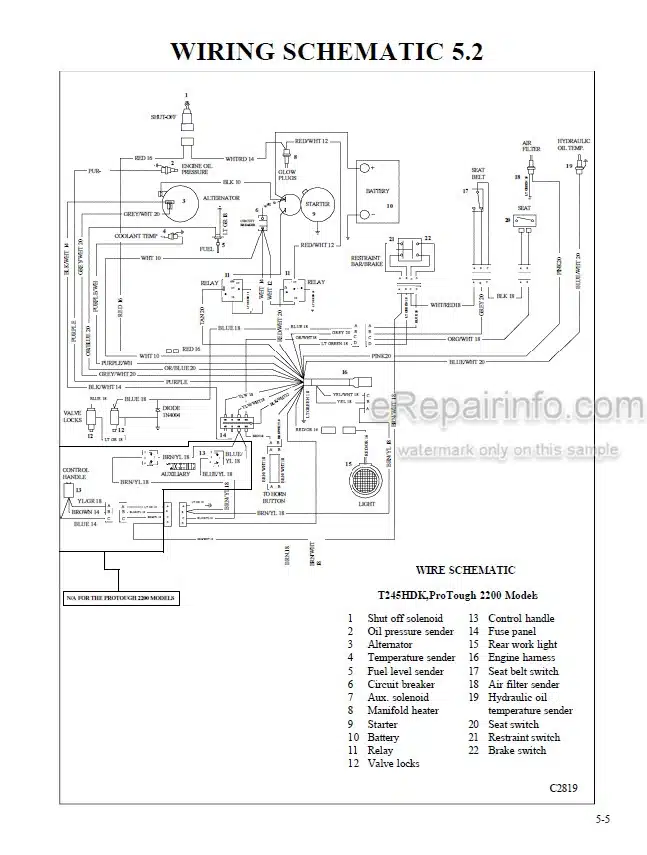

Wiring Diagrams: Yes
Hydraulic Diagrams: Yes
Model
Thomas Skid Steer Loader
T225
T243HDS
T245HDS
T245HDK
Protough 2200
Contents
-HYDRAULIC SYSTEM
Hydraulic Circuit
Specification & Maintenance
General Information
Control Valve
Hydraulic Cylinders
Oil Filter
Oil Cooler
Oil Reservoir
Trouble Shooting
Torque Chart
Conversion Chart
-HYDROSTATIC DRIVE SYSTEM
Hydrostatic Drive Circuit
Specifications
General Information
Trouble Shooting

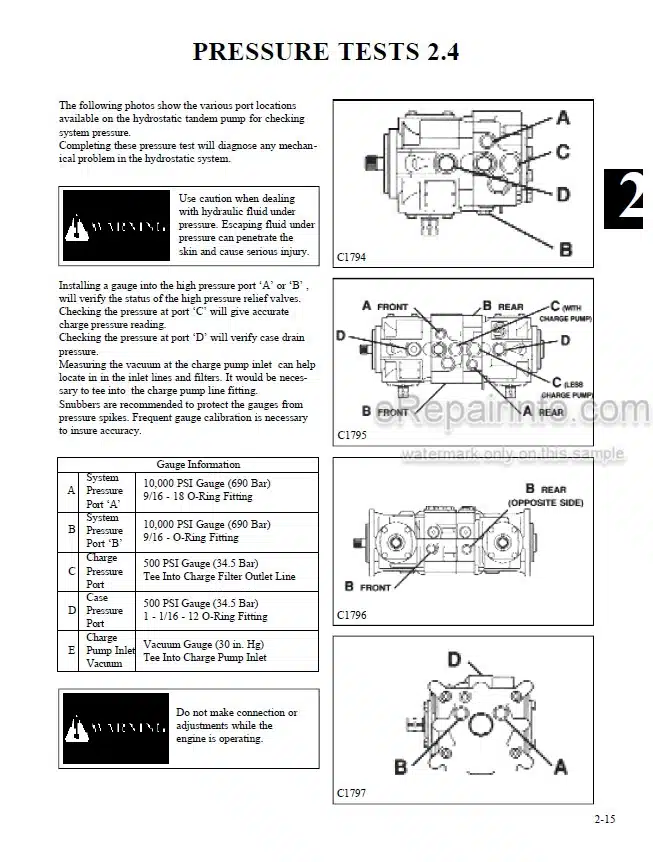

Pressure Tests
Towing Procedure
Flushing The Hydraulic System
Start – up Procedure
Gear Pump Replacement
Tandem Pump Replacement
Drive Motor
Torque Chart
Conversion Chart
-FINAL DRIVE
Specifications
Maintenance
Drive Chain
Idler Sprocket & Shaft
Axle Assembly
Trouble Shooting
-CONTROLS
Trouble Shooting
Steering
Steering Locks
Restraint Bar
Parking Brake
Foot Pedals
Hand Controls
Throttle
Auxiliary Control
Hi – Flow Controls
-ELECTRICAL
Specifications
Wiring Schematics
Instrumentation
Ignition Switch
Manifold Pre – Heater
Battery
Electrical Panel
Starter Circuit
Charging Circuit
Safety Circuit
Auxiliary Circuit
Accessory Circuit
Trouble Shooting
-MAIN FRAME
Quick – Tach
Boom Arms
Boom Support
ROPS
Rear Door
-ENGINE
Specifications
Trouble Shooting
Distribution / Service Centers
Filters
Engine Cooler
Alternator and Belt
Sending Units
Manifold Heater
Stop Solenoid
Starter
Thermostat
U – Joint
Removal / Replacement
-MAINTENANCE & SPECIFICATIONS
Preventative Maintenance Schedule
50 Hour Service Schedule
Specifications
Torque Specifications
Sound Power Level Specifications
Decals
Special Tools
What you get
