Tigercat FPT N45 N67 Service And Repair Manual Engine 42069AENG manuals in PDF

$19.95

Factory Service And Repair Manual For Tigercat FPT Engine. Manual Contains Illustrations, Instructions, Diagrams For Step By Step Remove And Install, Assembly And Disassembly, Service, Inspection, Repair, Troubleshooting, Tune-Ups.

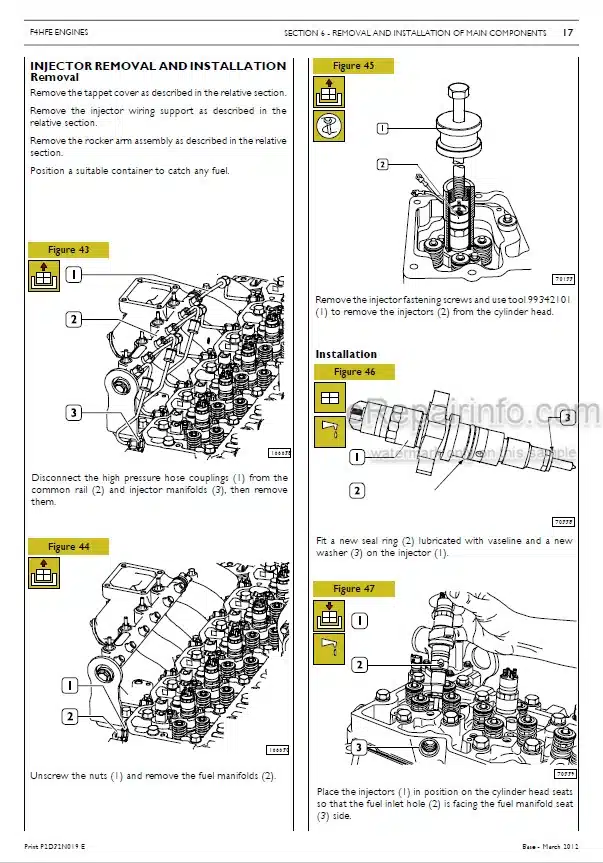

Photo 8 - Tigercat FPT N45 N67 Service And Repair Manual Engine 42069AENG
Tigercat FPT N45 N67 Service And Repair Manual Engine 42069AENG $19.95
  • Lifetime Free Access
  • Instant Downloads
  • Support and Instructions with download
Guaranteed Safe Checkout

Factory Service And Repair Manual For Tigercat FPT Engine. Manual Contains Illustrations, Instructions, Diagrams For Step By Step Remove And Install, Assembly And Disassembly, Service, Inspection, Repair, Troubleshooting, Tune-Ups.

Format: PDF
Language: English
Pages: 202
Number: 42069AENG (january 2015)
Bookmarks
Searchable
Wiring Diagrams

Model

Tigercat FPT Engine
N65
N67

Contents

-INTRODUCTION
Preface
Symbols
General Warnings
General Warnings On The Electric System
Optional Electrical And Mechanical Parts Installations
Conversions Between The Main Units Of Measurement Of The International System And Most Used Derived Quantities
Key Of Lecture Of The Headings And Footnotes
-GENERAL SPECIFICATIONS
Correspondence Between Technical Code And Commercial Code
Engine Views
General Characteristics
-OPERATIONAL DIAGRAMS
High Pressure Electronic Injection Fuel System (Common Rail)
Electric System
Hydraulic System
Fuel Supply System Components
Lubrication
Oil Vapour Recycling
Cooling System
Turbocharging System
Denox 2 System
-ELECTRICAL EQUIPMENT
Location Of The Main Electrical Components
Engine Cable
ECU Electronic Control Unit (EDC7UC3I)
Fuel Supply System Electrical Components
-SCHEDULED MAINTENANCE
Scheduled Maintenance
Maintenance Procedures
-REMOVAL/INSTALLATION OF MAIN COMPONENTS
Removal And Installation Auxiliary Drive Belt
Alternator Removal And Installation
Coolant Pump Removal And Installation
Thermostat Removal And Installation
Removal And Installation Starter Motor
Engine Cable Removal And Installation
Removal And Installation Low-Pressure Fuel Lines
Removal And Installation Fuel Hose From High Pressure Pump To Common Rail
Engine Control Unit Removal And Installation
Fuel Filter Removal And Refitting
Fuel Filter Removal And Refitting
Removal And Installation Common Rail
Oil Vapour Recirculation (Blow-By) System Removal And Installation
Tappet Cover Removal And Installation
Injector Wiring Support Removal And Installation
Removal And Installation Rocker Arm Assembly
Injector Removal And Installation
Turbocharger Removal And Installation
Exhaust Manifold Removal- Installation
Intake Manifold Removal And Installation
Cold Start Air Hater Removal And Installation
Cylinder Head Removal And Installation
Engine Oil Filter Removal And Installation
Removal And Installation Engine Oil Hat Exchanger
Oil Sump Removal And Installation
-GENERAL MECHANICAL OVERHAUL
Introduction
Fitting The Engine To The Rotating Stand
Removal Of Main Components
Bench Engine Block Disassembly Crankcase
Timing System
Bush
Tappets
Crankshaft
Connecting Rod – Piston Assembly
Bench Engine Block Assembly
Cylinder Head Dismantling
Valves
Valve Guides
Valve Seats
Valve Springs
Assembling Cylinder Head
Refitting Main Components
Removing The Engine From The Rotating Stand
Completing Engine Assembly
Checks And Inspections
-TECHNICAL SPECIFICATIONS
General Specifications
Clearance Data
Tightening Torque
TIGHTENING TORQUE
-APPENDIX
Safety Prescriptions

What you get

You will receive PDF file with high-quality manual on your email immediately after the payment.
