Toyota 2PM18 2PM20 2PM20N Spare Parts Catalogue Powered Pallet Truck 180672 SN406404- manuals in PDF

$9.95

Factory Spare Parts Catalogue For Toyota Powered Pallet Truck. Detailed Illustrations and Parts Lists.

Photo 7 - Toyota 2PM18 2PM20 2PM20N Spare Parts Catalogue Powered Pallet Truck 180672 SN406404-
Toyota 2PM18 2PM20 2PM20N Spare Parts Catalogue Powered Pallet Truck 180672 SN406404- $9.95
  • Lifetime Free Access
  • Instant Downloads
  • Support and Instructions with download
Guaranteed Safe Checkout

Factory Spare Parts Catalogue For Toyota Powered Pallet Truck. Detailed Illustrations and Parts Lists.

Format PDF
Language: ENG; SWE; GER; FRA
Pages: 87
Number: 180672 (march 2003)
Bookmarks
Searchable
Parts List

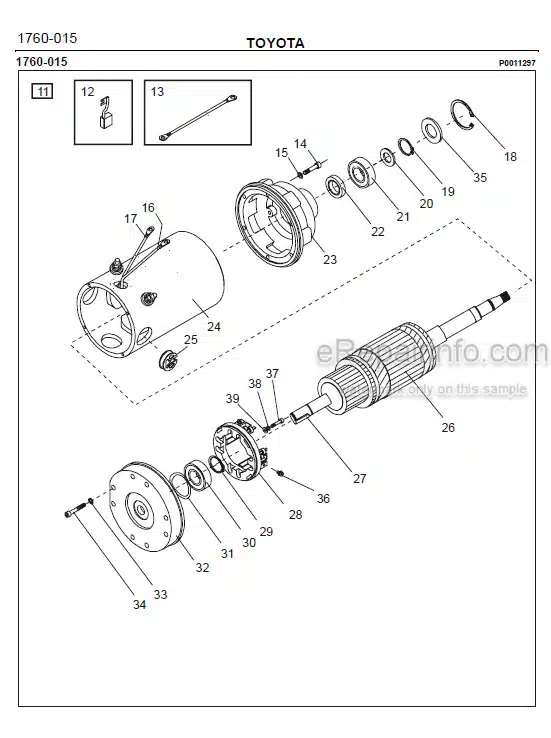

Parts Exploded View

Model

Toyota Powered Pallet Truck
2PM18
2PM 20
2PM20N

Valid for machine number: 406404 –

Contents

-CHASSIS
Inspection Covers
Fork Frame (Low Lifters)
Battery Compartment Parts
Frame/Chassis Components
Finger/Foot Guards
Signs, Warnings, Decals
-MOTORS
Electric Pump Motor
Electric Drive Motor
-TRANSMISSION/DRIVE GEAR
Mechanical Drive Gear Unit
-BRAKE/WHEEL/CATERPILLAR SYSTEM
Electromagnetic Parking Brake
Drive Wheel
Support/Castor Wheels
Fork/Support Arm Wheels
Wheel Locating Points
-STEERING SYSTEM
Steering Arm / Wheel / Lever
Steering Bearings, Radial Bearing
-ELECTRICAL SYSTEM
General Alarm Signals (Audible/Visual)
Battery Cut Out Connector/Contactor
Start/Stop Switch
Transistor Panel
Work Function Harnesses/ Fuse
Pump Contactor
Lift/Lowering/Reach Movement Probes/Sensors
Safety Probes/ Sensors
-HYDRAULIC/PNEUMATIC SYSTEM
Hydraulic Unit
Hydraulic Tank Lines
Main Lift Cylinders
-OPTIONS/ATTACHMENTS
Extra Electrical Equipment
Truck Log Device, Code Locking Device
Other Extra Equipment
Battery Changing Equipment
