Toyota 7LOP12 7LOP12P Spare Parts Catalogue Order Picking Truck 247407 SN980795- manuals in PDF

$14.95

Factory Spare Parts Catalogue For Toyota Order Picking Truck. Detailed Illustrations and Parts Lists.

Photo 7 - Toyota 7LOP12 7LOP12P Spare Parts Catalogue Order Picking Truck 247407 SN980795-
Toyota 7LOP12 7LOP12P Spare Parts Catalogue Order Picking Truck 247407 SN980795- $14.95
  • Lifetime Free Access
  • Instant Downloads
  • Support and Instructions with download
Guaranteed Safe Checkout

Factory Spare Parts Catalogue For Toyota Order Picking Truck. Detailed Illustrations and Parts Lists.

Format PDF
Language: ENG; SWE; GER; FRA
Pages: 129
Number: 247407 (march 2007)
Bookmarks
Searchable
Parts List

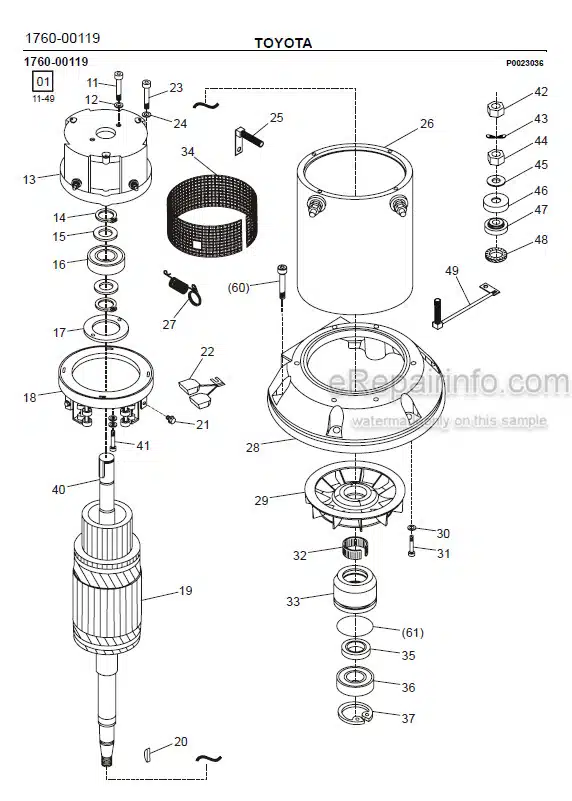

Parts Exploded View

Model

Toyota Order Picking Truck
7LOP12
7LOP12P

Valid for machine number: 980795 –

Contents

-CHASSIS
Floor, Footstep
Inspection Covers
Battery Compartment Parts
Frame/Chassis Components
Seat, Cushions
Wall/Floor Covering
Internal Fittings
Driver Protection
Signs, Warnings, Decals
-MOTORS
Electric Pump Motor
Electric Steering Motor
Electric Drive Motor
-TRANSMISSION/DRIVE GEAR
Mechanical Drive Gear Unit
-BRAKE/WHEEL/CATERPILLAR SYSTEM
Electromagnetic Parking Brake
Drive Wheel
Support/Castor Wheels
Fork/Support Arm Wheels
-STEERING SYSTEM
Steering Arm/Wheel/Lever
Steering Angle Sensor
-ELECTRICAL SYSTEM
General Alarm Signals (Audible/Visual)
Battery Cut Out Connector/Contactor
Transistor Panel
Work Function Harnesses/Fuse
Pump Contactor
Battery/Motor Cables, Fuse
Lift/Lowering/Reach Movement Probes/Sensors
Lift/Lowering/Reach Movement Probes/Sensors
Safety Probes/Sensors
-HYDRAULIC/PNEUMATIC SYSTEM
Hydraulic Unit
Hydraulic Lines Chassis
Main Lift Cylinders
-WORK FUNCTION – LIFTING MASTS
Main Lift Chain System
Main Mast Suspension
Fork Carriage Unit, Integrated Sideshift, Fork Spread
-OPTIONS/ATTACHMENTS
Working Cage
Charger Attachment
Truck Log Device, Code Locking Device
Other Extra Equipment
Battery Changing Equipment

What you get

You will receive PDF file with high-quality manual on your email immediately after the payment.
