Factory Spare Parts Catalogue For Toyota Powered Pallet Truck. Detailed Illustrations and Parts Lists.
Format PDF
Language: ENG; SWE; GER; FRA
Pages: 93
Number: 214451 (september 2003)
Bookmarks
Searchable
Parts List

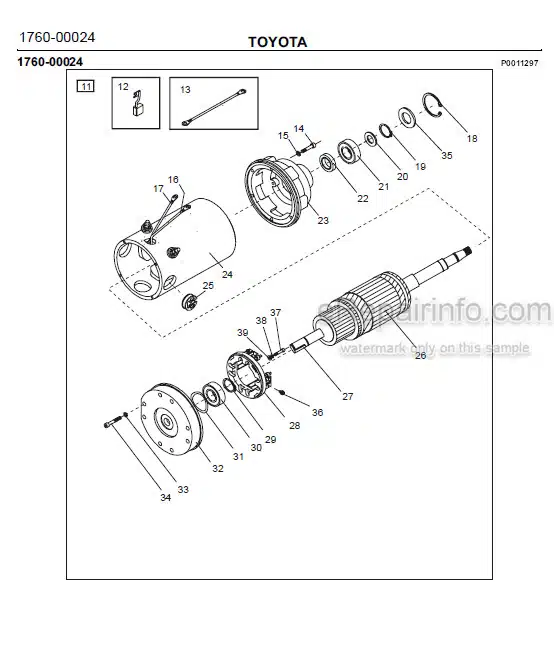

Parts Exploded View
Model
Toyota Powered Pallet Truck
7PM18
7PM20
7PM20N
Valid for machine number: 589637 –
Contents
-CHASSIS
Inspection Covers
Fork Frame (Low Lifters)
Battery Compartment Parts
Frame/Chassis Components
Finger/Foot Guards
Signs, Warnings, Decals
-MOTORS
Electric Pump Motor
Electric Drive Motor
-TRANSMISSION/DRIVE GEAR
Mechanical Drive Gear Unit
-BRAKE/WHEEL/CATERPILLAR SYSTEM
Electromagnetic Parking Brake
Drive Wheel
Support/Castor Wheels
Fork/Support Arm Wheels
Wheel Locating Points
Guide Rollers/Wheels
-STEERING SYSTEM
Steering Arm / Wheel / Lever
Steering Bearings, Radial Bearing
-ELECTRICAL SYSTEM
General Alarm Signals (Audible/Visual)
Battery Cut Out Connector/Contactor
Start/Stop Switch
Transistor Panel
Work Function Harnesses/ Fuse
Pump Contactor
Lift/Lowering/Reach Movement Probes/Sensors
Safety Probes/Sensors
-HYDRAULIC/PNEUMATIC SYSTEM
Hydraulic Unit
Hydraulic Tank Lines
Main Lift Cylinders
-OPTIONS/ATTACHMENTS
Charger Attachment
Extra Electrical Equipment
Truck Log Device, Code Locking Device
Other Extra Equipment
Battery Changing Equipment
