Factory Spare Parts Catalogue For Toyota Powered Pallet Stacker. Detailed Illustrations and Parts Lists.
Format PDF
Language: ENG; SWE; GER; FRA
Pages: 95
Number: 244849 (janaury 2007)
Bookmarks
Searchable
Parts List

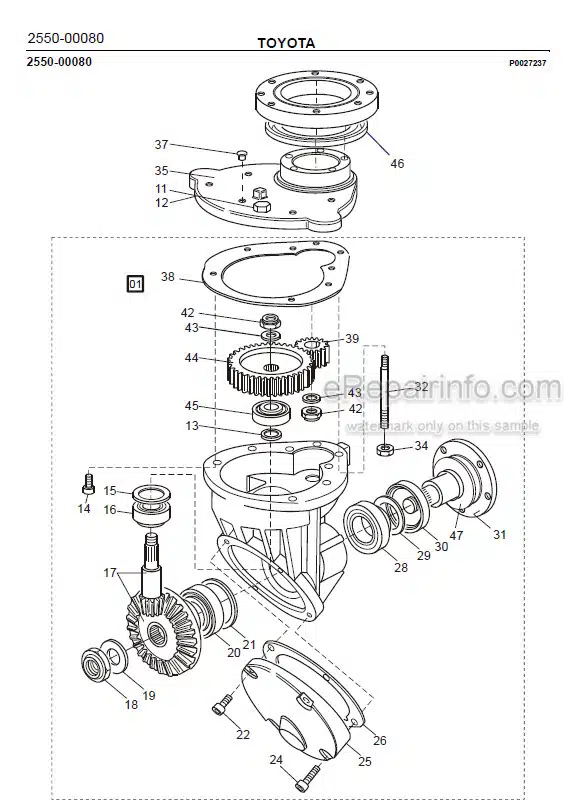

Parts Exploded View
Model
Toyota Powered Pallet Stacker
7SM16D
Valid for machine number: 970566 –
Contents
-CHASSIS
Inspection Covers
Support Arms, Stabilizers
Battery Compartment Parts
Frame/Chassis Components
Motor Fixing Points
Platform Incl. Fixing Points
Driver Controls (Mechanical)
Finger/Foot Guards
Signs, Warnings, Decals
-MOTORS
Electric Pump Motor
Electric Drive Motor
-TRANSMISSION/DRIVE GEAR
Mechanical Drive Gear Unit
-BRAKE/WHEEL/CATERPILLAR SYSTEM
Electromagnetic Parking Brake
Drive Wheel
Support/Castor Wheels
Fork/Support Arm Wheels
-STEERING SYSTEM
Steering Arm/Wheel/Lever
Steering Bearings, Radial Bearing
-ELECTRICAL SYSTEM
General Alarm Signals (Audible/Visual)
Battery Cut Out Connector/Contactor
Start/Stop Switch
Transistor Panel
Work Function Harnesses/Fuse
Pump Contactor
Safety Probes/Sensors
-HYDRAULIC/PNEUMATIC SYSTEM
Hydraulic Unit
Hydraulic Lines Chassis
Main Lift Cylinders
Support Arm/Initial Lift Cylinders
-WORK FUNCTION – LIFTING MASTS
Main Lift Chain System
Main Mast Guidance/Dampers
Fork Carriage Unit, Integrated Sideshift. Fork Spread
-OPTIONS/ATTACHMENTS
Charger Attachment
Extra Electrical Equipment
Truck Log Device, Code Locking Device
Other Extra Equipment
What you get
You will receive PDF file with high-quality manual on your email immediately after the payment.
Reviews
There are no reviews yet
