Factory Spare Parts Catalogue For Toyota Powered Pallet Truck. Detailed Illustrations and Parts Lists.

Photo 7 - Toyota PP13 Spare Parts Catalogue Powered Pallet Truck 215205 SN592480-
Toyota PP13 Spare Parts Catalogue Powered Pallet Truck 215205 SN592480- $9.95
  • Lifetime Free Access
  • Instant Downloads
  • Support and Instructions with download
Guaranteed Safe Checkout

Factory Spare Parts Catalogue For Toyota Powered Pallet Truck. Detailed Illustrations and Parts Lists.

Format PDF
Language: ENG; SWE; GER; FRA
Pages: 67
Number: 215205 (november 2003)
Bookmarks
Searchable
Parts List

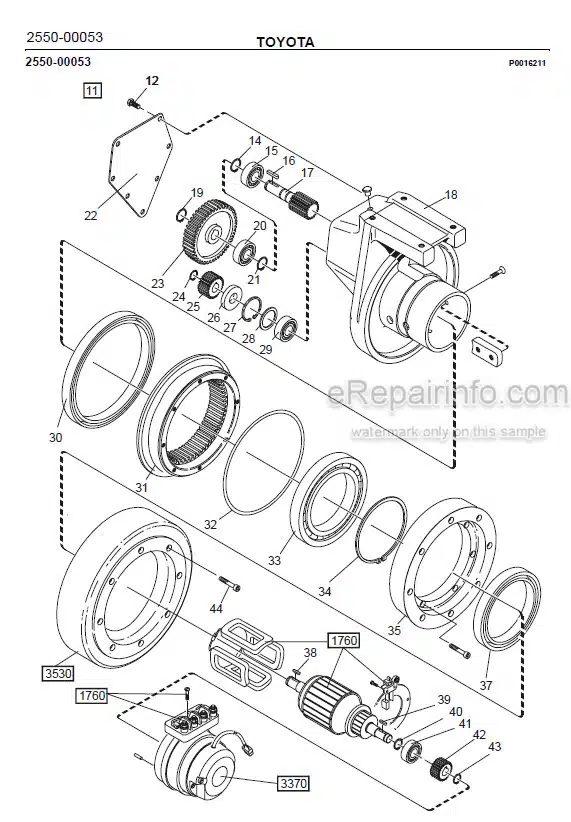

Parts Exploded View

Model

Toyota Pallet Truck
PP13
Valid for machine number: 592480 –

Contents

-CHASSIS
Inspection Covers
Fork Frame (Low Lifters)
Battery Compartment Parts
Frame/Chassis Components
Signs, Warnings, Decals
-MOTORS
Electric Pump Motor
Electric Drive Motor
-TRANSMISSION/DRIVE GEAR
Mechanical Drive Gear Unit
-BRAKE/WHEEL/CATERPILLAR SYSTEM
Electromagnetic Parking Brake
Drive Wheel
Support/Castor Wheels
Fork/Support Arm Wheels
Wheel Locating Points
-STEERING SYSTEM
Steering Arm / Wheel / Lever
Steering Bearings, Radial Bearing
-ELECTRICAL SYSTEM
General Alarm Signals (Audible/Visual)
Battery Charger (On Board)
Battery Cut Out Connector/Contactor
Start/Stop Switch
Speed Control
Transistor Panel
Work Function Micro Switches, Potentiometers
Work Function Harnesses/ Fuse
Pump Contactor
Lift/Lowering/Reach Movement Probes/Sensors
Safety Probes/ Sensors
-HYDRAULIC/PNEUMATIC SYSTEM
Hydraulic Unit
Hydraulic Tank Lines
Main Lift Cylinders
-OPTIONS/ATTACHMENTS
Extra Electrical Equipment
Other Extra Equipment
