Factory Spare Parts Catalogue For Toyota Powered Pallet Stacker. Detailed Illustrations and Parts Lists.
Format PDF
Language: ENG; SWE; GER; FRA
Pages: 127
Number: 214081 (may 2003)
Bookmarks
Searchable
Parts List

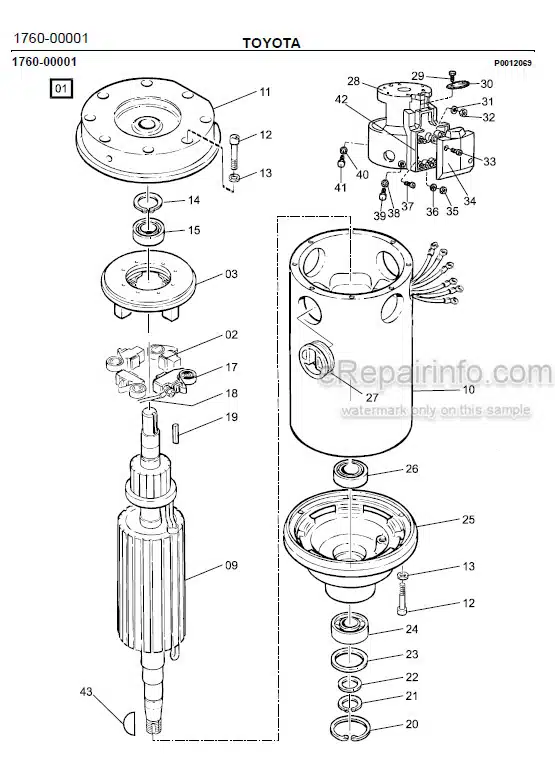

Parts Exploded View
Model
Toyota Powered Pallet Stacker
SLL 16
Valid for machine number: 579679-
Contents
-CHASSIS
Inspection Covers
Support Arms, Stabilizers
Battery Compartment Parts
Motor Fixing Points
Platform Incl. Fixing Points
Driver Controls (Mechanical)
Finger/Foot Guards
Collision Bumper/Guards
Driver Protection
Signs, Warnings, Decals
-MOTORS
Electric Pump Motor
Electric Drive Motor
-TRANSMISSION/DRIVE GEAR
Mechanical Drive Gear Unit
-BRAKE/WHEEL/CATERPILLAR SYSTEM
Electromagnetic Parking Brake
Wheels
Drive Wheel
Support/Castor Wheels
-STEERING SYSTEM
Steering Arm / Wheel / Lever
-ELECTRICAL SYSTEM
General Alarm Signals (Audible/Visual)
Battery Cut Out Connector/Contactor
Instrument Panel, Display
Start/Stop Switch
Speed Control
Driving Function Harnesses/ Fuse
Drive Motor Cables/Resistors/Fuses
Direction Contactors
Work Function Micro Switches, Potentiometers
Pump Contactor
Drive/Multi-Function PCBs
Positioning Probes/ Sensors
-HYDRAULIC/PNEUMATIC SYSTEM
Hydraulic Unit
Hydraulic System Chassis Mounted
Hydraulic System Mast Mounted
Mast Hydraulic Lines
Main Lift Cylinders
Free Lift Cylinder
Powertrak Cylinder
-WORK FUNCTION – LIFTING MASTS
Main Mast
Main Mast Guidance/ Dampers
Main Mast Suspension
Fork Carriage Unit. Integ. Sideshift. Fork Spread
-OPTIONS/ATTACHMENTS
Extra Electrical Equipment
Other Extra Equipment
Battery Changing Equipment
