Factory Spare Parts Catalogue For Toyota Powered Pallet Stacker. Detailed Illustrations and Parts Lists.
Format PDF
Language: ENG; SWE; GER; FRA
Pages: 87
Number: 168517 (march 1999)
Bookmarks
Searchable
Parts List

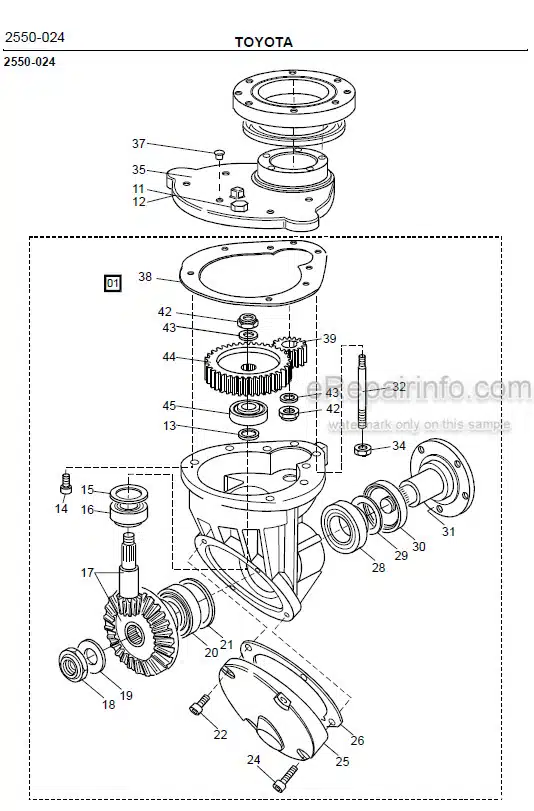

Parts Exploded View
Model
Toyota Powered Pallet Stacker
SM12F
Valid for machine number: 335439-
Contents
-CHASSIS
Inspection Covers
Fork Frame
Frame/Chassis Components
Motor Fixation Points
Platform And Fixation
Driver Controls (Mechanical)
Finger / Toe Guards
Driver Protection
Signs, Warnings
-DRIVE MOTOR
Electrical Drive Motor
-DRIVE GEAR/TRANSMISSION
Mechanical Drive Gear Units
-BRAKE/WHEEL SYSTEM
Drum/Disc Brake Assembly
Wheels
Drive Wheel
Support/Swivel Wheels
-STEERING SYSTEM
Steering Arm / Wheel / Lever
Steering Bearings, Radial Bearing
-ELECTRICAL SYSTEM
General Alarm Signal
Battery Cut Out Contactor / Plug
Hour Meter / Speedometer
Start/Stop Switch
Speed Controls
Control Cables / Harnesses
Electrical Drive Motor System
Motor Cables, Resistors
Direction Contactors
Transistor Panel
Micro Switches
Pump Contactor
PCBs Logic Card / Box
Safety / Position / Switches / Sensors
Control Cables / Harnesses
Pump Motor
-HYDRAULIC / PNEUMATIC SYSTEM
Hydraulic Unit
Hoses And Pipes, Connection, Fixation
-OPERATING FUNCTION – LIFTING MAST/CYLINDER
Chains / Yokes / Rollers
Mast Guidance / Dampers
Lift Cylinders
Free Initial Lift Cylinder
Fork Carriage Unit
-OPTIONAL / ATTACHMENTS
Extra Mechanical Equipment
What you get
You will receive PDF file with high-quality manual on your email immediately after the payment.
