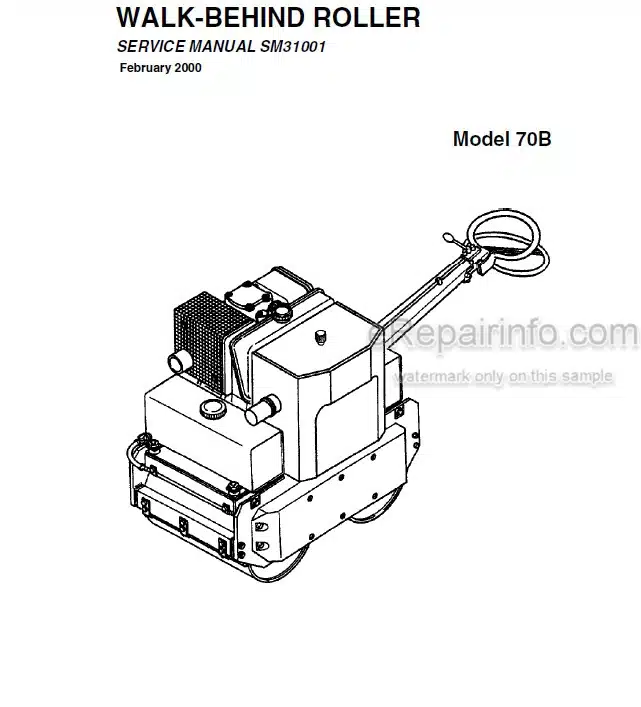

Factory Service Manual For Vibromax Walk Behind Roller. Manual Contains Illustrations, Instructions, Diagrams For Step By Step Remove And Install, Assembly And Disassembly, Service, Inspection, Repair, Troubleshooting, Tune-Ups.
Format: PDF
Language: English
Pages: 72
Number: SM31001 (february 2000)
Searchable: Yes
Wiring Diagrams: Yes
Hydraulic Diagrams: Yes
Model
Vibromax Walk Behind Roller
70B
Contents
-GENERAL
Machine Description
Model 70B Dimensional Data
Fluid Capacities
Model 70B Operating Data
Standard Torque Data
Metric/USA Conversions
Diesel Fuel Specification
Engine Oil Specification
Vibratory System Oil
Drive Gears Lubrication
Hydraulic System Oil
Machine Storage
Safety
Spark Arrester
Personal
Machine Operation
Maintenance
-ENGINE
Engine Specs
Run-In Period
Diesel Fuel Specification
Engine Oil Specification
-ELECTRICAL
ENGINE ELECTRICAL
UNDERSTANDING STARTERS
70B STARTING CIRCUIT FUNCTION

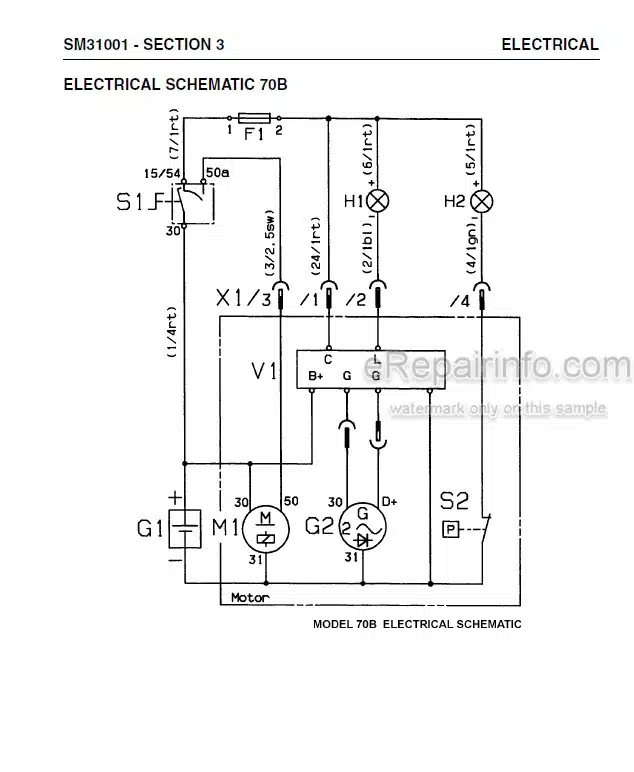

ELECTRICAL SCHEMATIC 70B
-HYDRAULIC

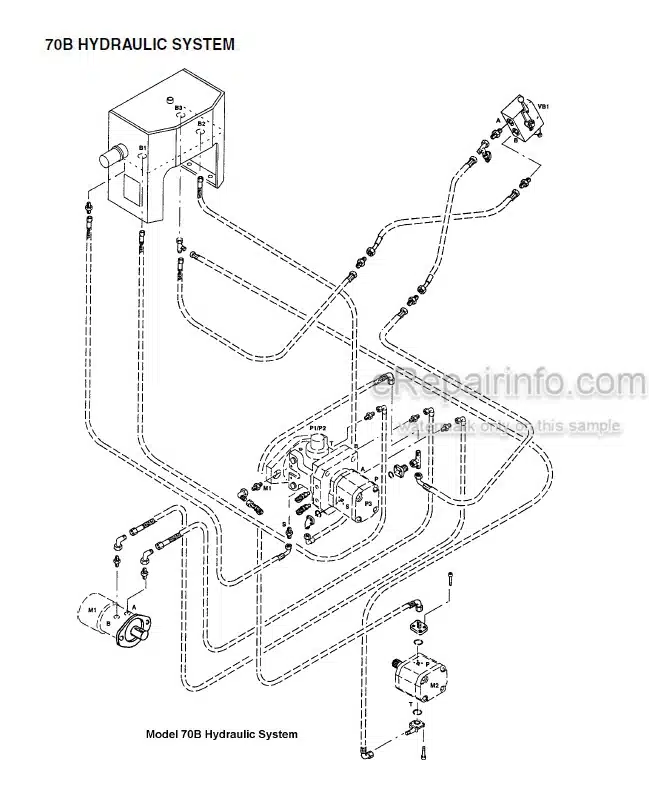

70B Hydraulic System
Hydraulic Description
Charge Relief
Vibration Valve
Hydraulic Pressure Test
-FINAL DRIVE
Lower Drive Unit
Lower Unit Assembly
-VIBRATION SYSTEM
Vibration System
Vibration Frequency & Amplitude
Vibratory System Diagnostics
Vibration Valve
Vibratory Shaft
-DRIVE CONTROLS
Guide Bar
Drive Control & Cable
Drive Cable Return Mechanism
What you get
You will receive PDF file with high-quality manual on your email immediately after the payment.
