Factory Service Manual For Yanmar 2TNE68 3TNE68 To 3TNE84T 4TNE82 To 4TNE84T Engines. Tons of illustrations, instructions, diagrams for step by step remove and install, assembly and disassembly, service, inspection, repair, troubleshooting, tune-ups.
Format: PDF
Language: English
Pages: 134
Models
Yanmar 2TNE68, 3TNE68, 3TNE74, 3TNE78A, 3TNE82A, 3TNE82, 3TNE84, 3TNE88, 4TNE82, 4TNE84, 4TNE88, 3TNE84T, 4TNE84T
Contents
-SPECIFICATIONS AND PERFORMANCE
-CROSS-SECTIONAL VIEWS
Special Swirl Pгe-combustion Chamber System
Direct Injection System
-COOLING WATER, LUBRICATING OIL AND FUEL OIL
Cooling Waler
Lubricating Oil
Fuel Oil
-TROUBLESHOOTING
Trouble Causes And Remedies
Trouble Diagnosis Through Measurement Of Compression Pressure
-SPECIAL SERVICE TOOLS AND MEASURING INSTRUMENTS
Special Service Tools
Measuring Instruments
-MEASUREMENT, INSPECTION AND ADJUSTMENT
Measuring The Compression Pressure
Adjusting The Valve Head Clearance
Checking The V-Belt Tension
Measuring And Checking The Injection Pressure And Spray Patterns Of The Fuel Injection Valve
Checking And Adjusting The Fuel Injection Timing
Adjusting The No-Load Maximum (Or Minimum) Revolutions
Checking The Cooling Water System And Radiator For Water Leakage
Checking The Battery;
Checking Sensors
Checking The Oil Cooler
Checking The Piston Cooling Nozzle
-MEASURING PROCEDURES, SERVICE DATA AND CORRECTIVE ACTION
Cylinder Head
Cylinder Block
Valve Rocker Arm
Piston And Piston Ring
Connecting Rod
Camshaft
Crankshaft
Gears
Trochoid Pump
-DISASSEMBLY AND REASSEMBLY
Disassembly
Precautions Before And During Reassembly
-SERVICE DATA
Cylinder Head
Cylinder Block
Valve Rocker Arm
Piston
Piston Ring
Connecting Rod
Camshaft
Crankshaft
Side Gap And Backlash
Others
-TIGHTENING TORQUE
Main Bolt/Nut
Standard Bolt And Nut
-FUEL INJECTION PUMP FOR INDIRECT INJECTION SYSTEM
Exploded Views (Ypfr Type)
Disassembly
Inspection
Reassembly
-FUEL INJECTION PUMP FOR DIRECT INJECTION SYSTEM

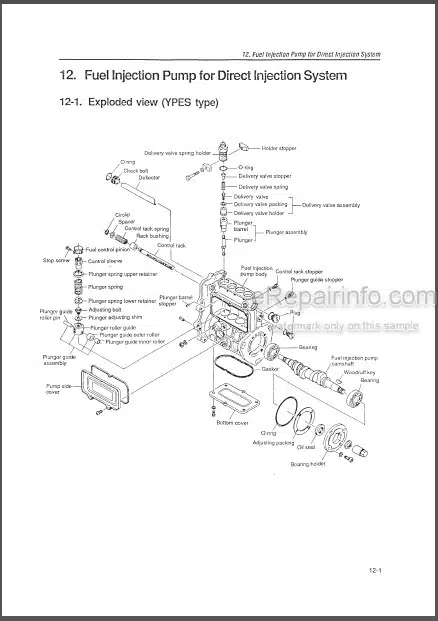

Exploded Views (Ypes Type)
Special Service Tools For Disassembly And Reassembly
Disassembly
Inspection
Reassembly
-GOVERNOR
Exploded Views Of Governor For Indirect Injection System
Exploded Views Of Governor For Direct Injection System
Disassembly
Inspection
Reassembly
-TIRBOCHARGER
Specifications
Construction
Waste Gate Valve Adjusting Method
Exploded View Of Turbocharger (W/ Waste Gate)
Tightening Torque
Service Standards
-SERVICE INFORMATION FOR CARB ULG REGULATION
Emission Control Labels
Limiting The No-Load Maximum And Minimum Revolutions
Limiting The Fuel Injection Volume
