Yanmar SV08-1 Parts Catalog Excavator manuals in PDF

Factory Parts Catalog For Yanmar Excavator. Detailed Illustrations and Parts Lists.

Format: PDF
Language: English
Pages: 114
Issued: april 2015
Bookmarks: Yes
Searchable: Yes
Parts List: Yes
Parts Exploded View: Yes

Model

Yanmar Excavator
SV08-1

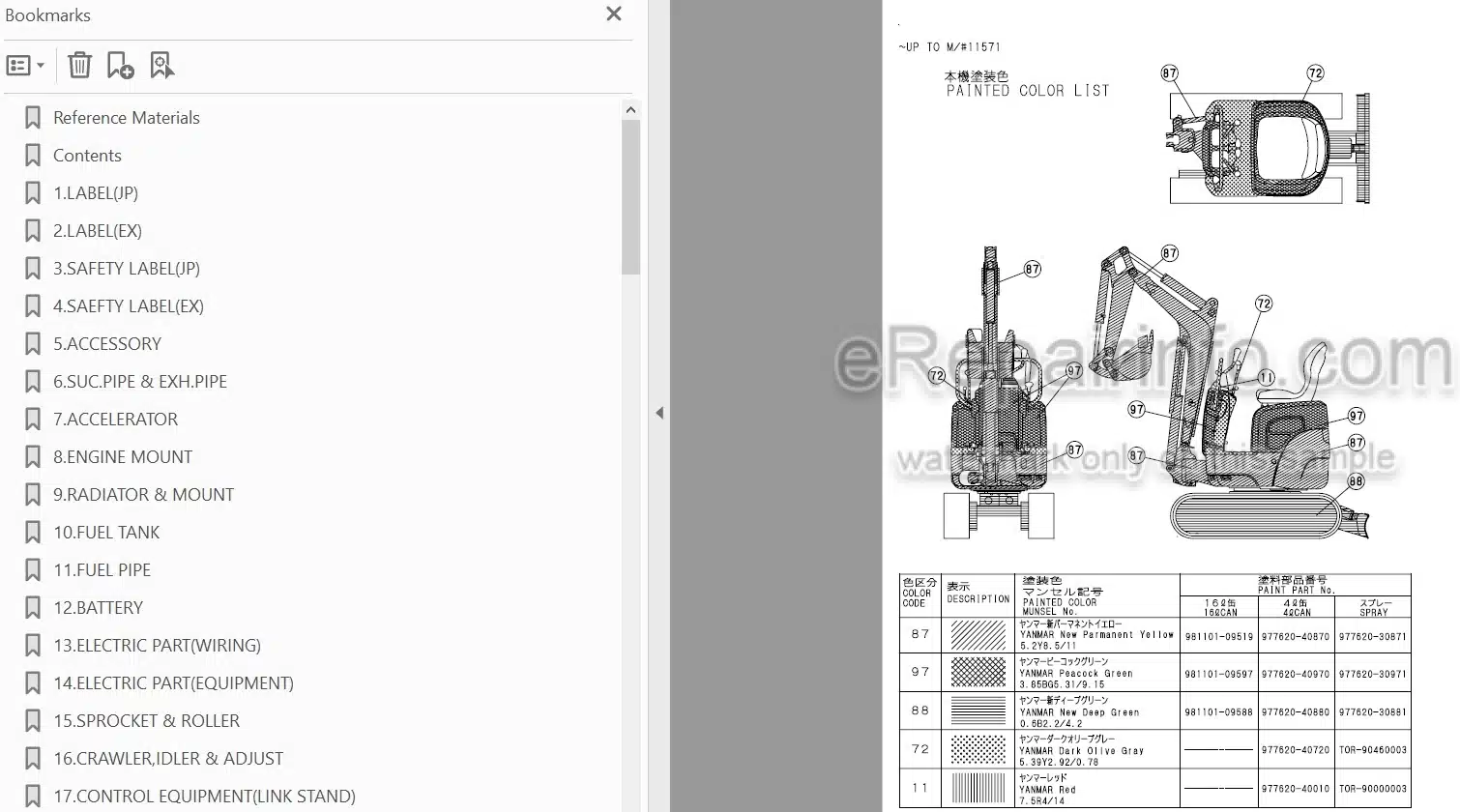

Contents

-LABEL & ACCESSORY
Label
Safety Label
Accessory
-ENGINE RELATED
Suc. Pipe & Exh. Pipe
Accelerator
Engine Mount
Radiator & Mount
Fuel Tank
Fuel Pipe
-ELECTRICAL PARTS
Battery
Electric
-TRAVELING
Sprocket & Roller
Crawler,Idler & Adjust
-CONTROL EQUIPMENT
Control Equipment
-FRAME
Track Frame
Turning Frame
-AROUND SEAT

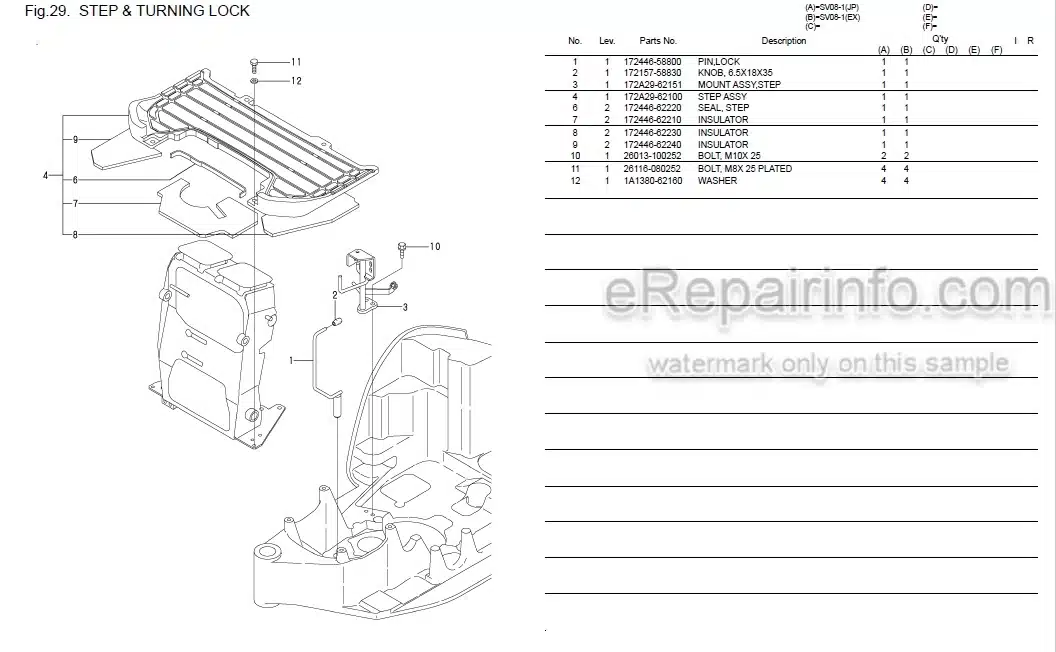

Step & Turning Lock
Seat & Mount
-BONNET
Bonnet
-HYDRAULIC OIL EQUIPMENT

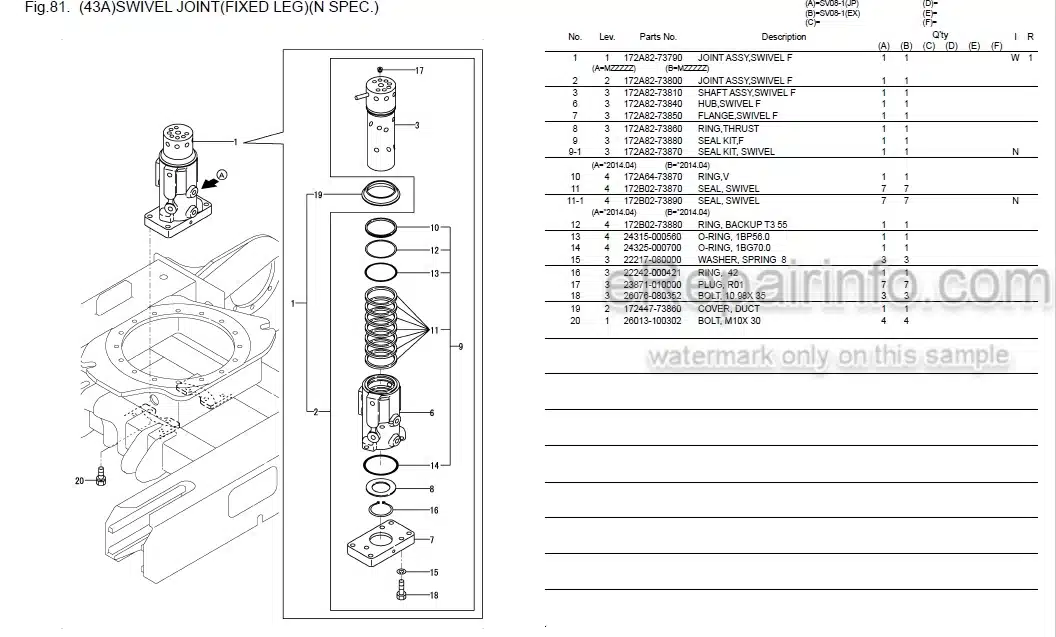

Hyd.Oil Pump & Joint
Boom Cylinder
Arm Cylinder
Bucket Cylinder
Swing Cylinder
Blade Cylinder
Link Variable Leg Cylinder
Slide Variable Leg Cylinder
Travel Motor
Turning Motor
Swivel Joint
Control Valve
Check Valve
Hyd. Oil Tank
-HYDRAULIC OIL PIPING
Hyd.Oil Piping
Greasing
-IMPLEMENT
Boom & Boom Bracket
Arm
Long Arm
Bucket Arm & Link
Bucket
Blade
-OPTIONAL & KIT
P.T.O.Kit(Optional)
Long Arm Kit(Optional)
PARTS NO. INDEX
