Yanmar YB401W YB401W-2 Parts Catalog Wheel Excavator manuals in PDF

Factory Parts Catalog For Yanmar Wheel Excavator. Detailed Illustrations, Wiring Diagrams and Parts Lists.

Format: PDF
Language: English
Pages: 252
Issued: july 1992
Searchable: Yes

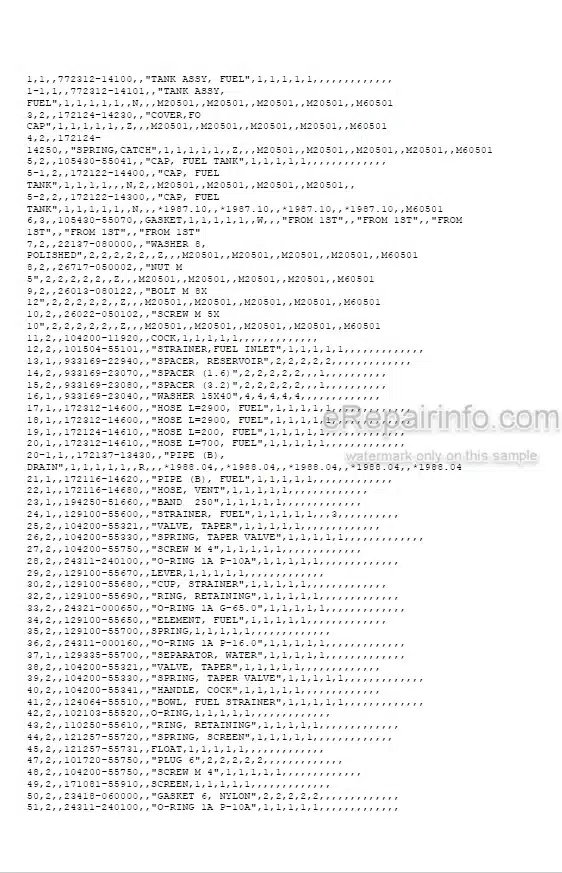

Parts List: Yes
Parts Exploded View: Yes

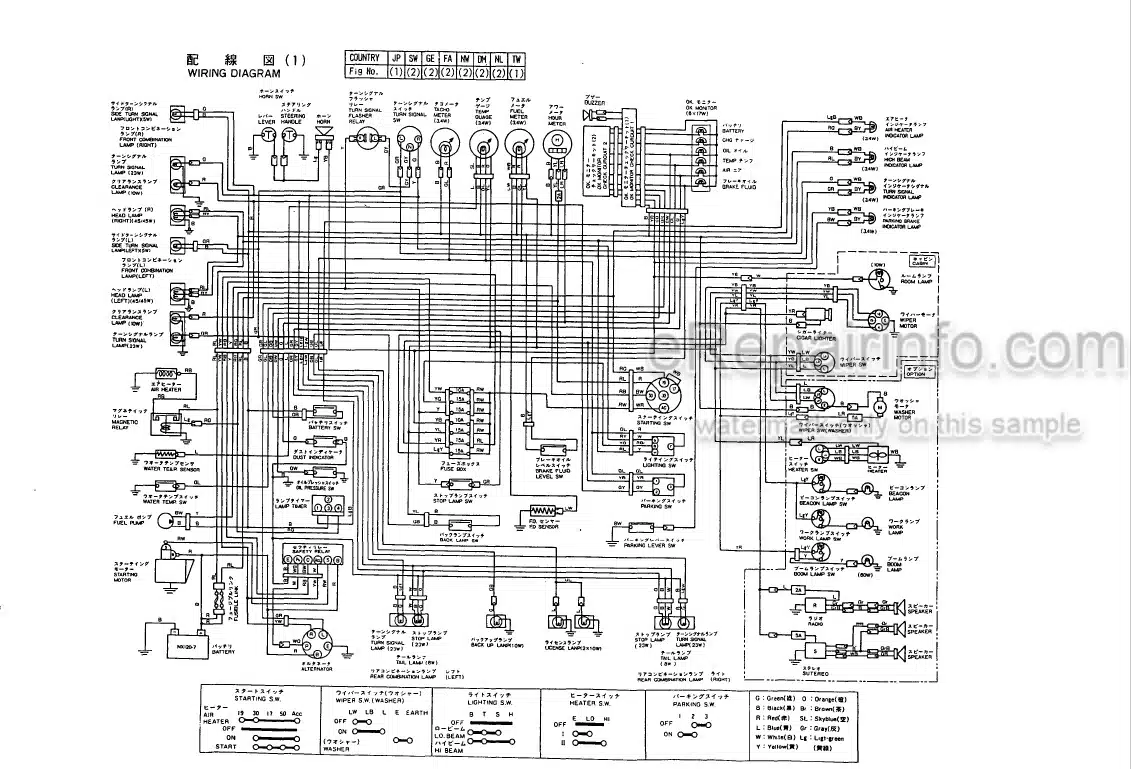

Wiring Diagram: Yes

Model

Yanmar Wheel Excavator
YB401W
YB401W-2

Contents

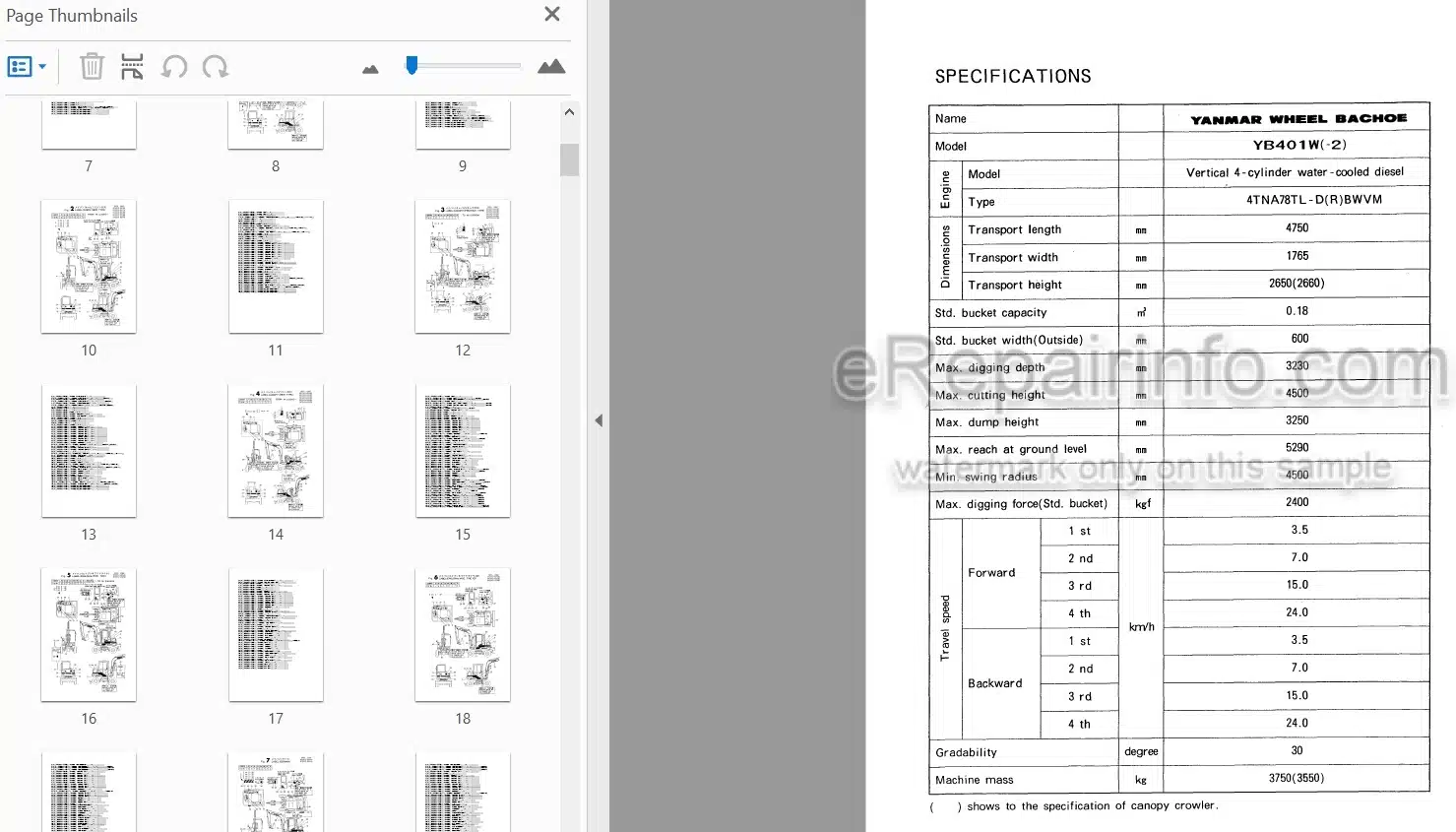

Specification
Wiring Diagram
Engine Control
Shift Lever & Link
Control Equipment
Link Support
Instrument Panel
3Rd Valve Control
C-Type Control Equipment
Steering Handle And Column
Steering Unit
Tool & Tool Box
Rear View Mirror
Fuel Tank And Fuel Line
Hydraulic Oil Tank
Hydraulic Oil Line
Work Lamp
Book And Arm
Boom Cylinder
Arm Cylinder
Heater And Defroster
Seat
Label
Wiper
Overhead Panel And Radio
Cabin
Canopy
Engine Mount
Radiator Mount
Battery & Clamp
Bonnet
Hydraulic Oil Pump And Coupling
Swing Cylinder
Greasing
Bucket
Bucket Cylinder
Hydraulic Oil Line(Brake)
Suspension Lock Cylinder |
Front Axle
Tire & Disc Wheel
Wiring
Electric Part
Transmission
3Rd,Center Brake & Drive Shaft
Steering Link
Chassis & Cover
Steering Cylinder
Driving Motor
Swivel Joint
Pedal And Linkage
Hand Brake
Backhoe Lock And Swing Lock
Turning Frame
Turning Driving Equipment
Step And Revolve Lock
Brake Hydraulic Unit
Cover,Interior
Control Valve
Valve
Blade Cylinder
Rigger Cylinder
Blade
Outrigger
Rear Axle

What you get

You will receive PDF file with high-quality manual on your email immediately after the payment.
