New Holland T5030 T5040 T5050 T5060 T5070 Operators Manual Tractor manuals in PDF

$24.00

Factory Operators Manual For New Holland Tractor. Manual For Owners And Operators. It Contains Important Information And Instructions For Maintenance Description Of The Functions And Capabilities Of The System. Description Of Possible Faults / Problems And Their Solution.

Photo 8 - New Holland T5030 T5040 T5050 T5060 T5070 Operators Manual Tractor
New Holland T5030 T5040 T5050 T5060 T5070 Operators Manual Tractor $24.00
  • Lifetime Free Access
  • Instant Downloads
  • Support and Instructions with download
Guaranteed Safe Checkout

Factory Operators Manual For New Holland Tractor. Manual For Owners And Operators. It Contains Important Information And Instructions For Maintenance Description Of The Functions And Capabilities Of The System. Description Of Possible Faults / Problems And Their Solution.

Format: PDF
Language: English
Quantity of Manuals: 3
Pages: 306; 321; 284
Number: 47767853 (september 2014); 84315667 (march 2010); 84474632 (april 2011)
Bookmarks: Yes
Searchable: Yes

Model

New Holland Tractor
T5030
T5040
T5050
T5060
T5070

Contents

-INTRODUCTION AND SAFETY MEASURES
Communications For The User
Tractor Identification
Important Ecological Considerations
Always Work Safely
Working Safely
Safety Decals
Tractor Noise Level Information Sheet

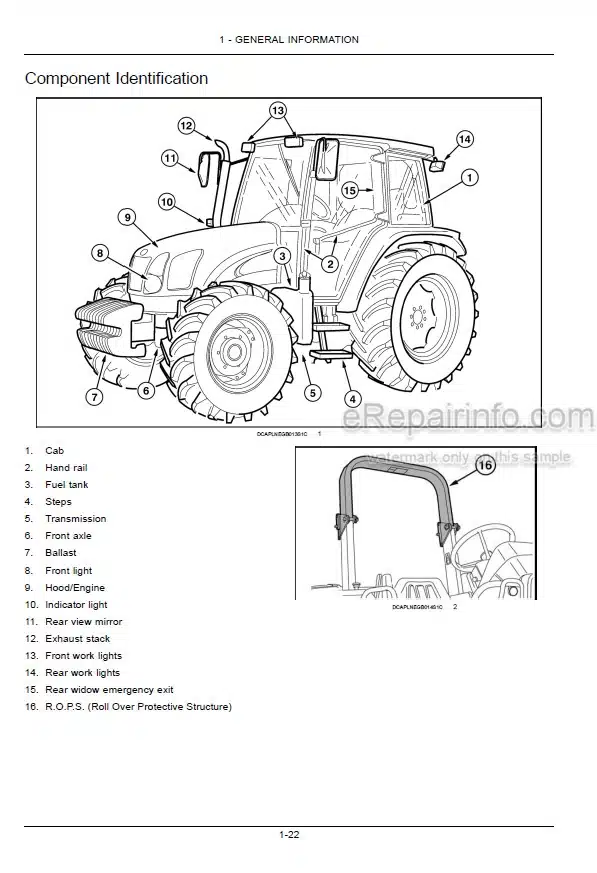

Components Identification
-GENERAL INFORMATION CONTROLS AND INSTRUMENTS
General Notes, Controls And Instruments
Before Using The Tractor
Control Panel
Operating Controls
Seat Adjustment
Cab
Air Conditioned Cab
Transmission With Range Gear And Shuttle – 1864 Mph (30 Km/H) (12F + 12R – Synchro Shuttle)
Transmission With Range Gear And Hydraulic Power Shuttle – 1864 Mph (30 Km/H) (12F + 12R – Power Shuttle)
Transmission With Creeper And Shuttle – 1864 Or 2485 Mph (30 Or 40 Km/H) (20F + 12R) – Synchro Shuttle
Transmission (30 Or 40 Km/H) (20F + 20R) – Power Shuttle
Transmission With Dual Command (2 Speed Power Shift) / Electro-Hydraulic Power-Shuttle 1864/2485 Mph) (30/40 Km/H (24F + 24R)
-FIELD OPERATION
Field Operation
Starting In Low Outside Temperature Conditions
Starter Key Switch
Starting With Grid Heater On Request
Electrohydraulically Controlled Four-Wheel Drive
Rear Mechanical Differential Lock (With Mechanical Control – Standard)
Braking System
Power Take-Off
Mechanically Operated Hydraulic Lift
Electronically Controlled Hydraulic Lift
Three-Point Linkage
Implement Connection Points
Auxiliary Remote Control Valves
Auxiliary Remote Control Valves (De Luxe Version)
Track Adjustment
Tyre Combinations
Ballast
Permitted Maximum Weights
-LUBRICATION AND MAINTENANCE
Lubrication And Maintenance
Access For Inspection And Maintenance
Lubrication And Maintenance Table
Flexible Maintenance
Instrument Panel Warning Lights
Every 10 Hours Of Work
Every 50 Hours Of Work
Every 100 Hours Of Work
Every 300 Hours Of Work
Every 600 Hours Of Work
Every 1200 Hours Or Every Year
Every 1200 Hours Of Work Or Every 2 Years
Every 1800 Hours Of Work
General Maintenance
Electrical System
Recommendations For Bodywork Maintenance
Consumables
-TROUBLESHOOTING
Engine
Electrical System
Hydraulic Circuit
Hydraulic Lift And 3-Point Linkage
Braking System
Cab
-VEHICLE STORAGE
-ACCESSORIES
Quick Fit Implement Linkage
Towing Equipment
Fold-Down Roll Bar
Joystick For Auxiliary Control Valves (Optional)
Front Loader Prearrangement
Control Valve For Trailer Hydraulic Brakes

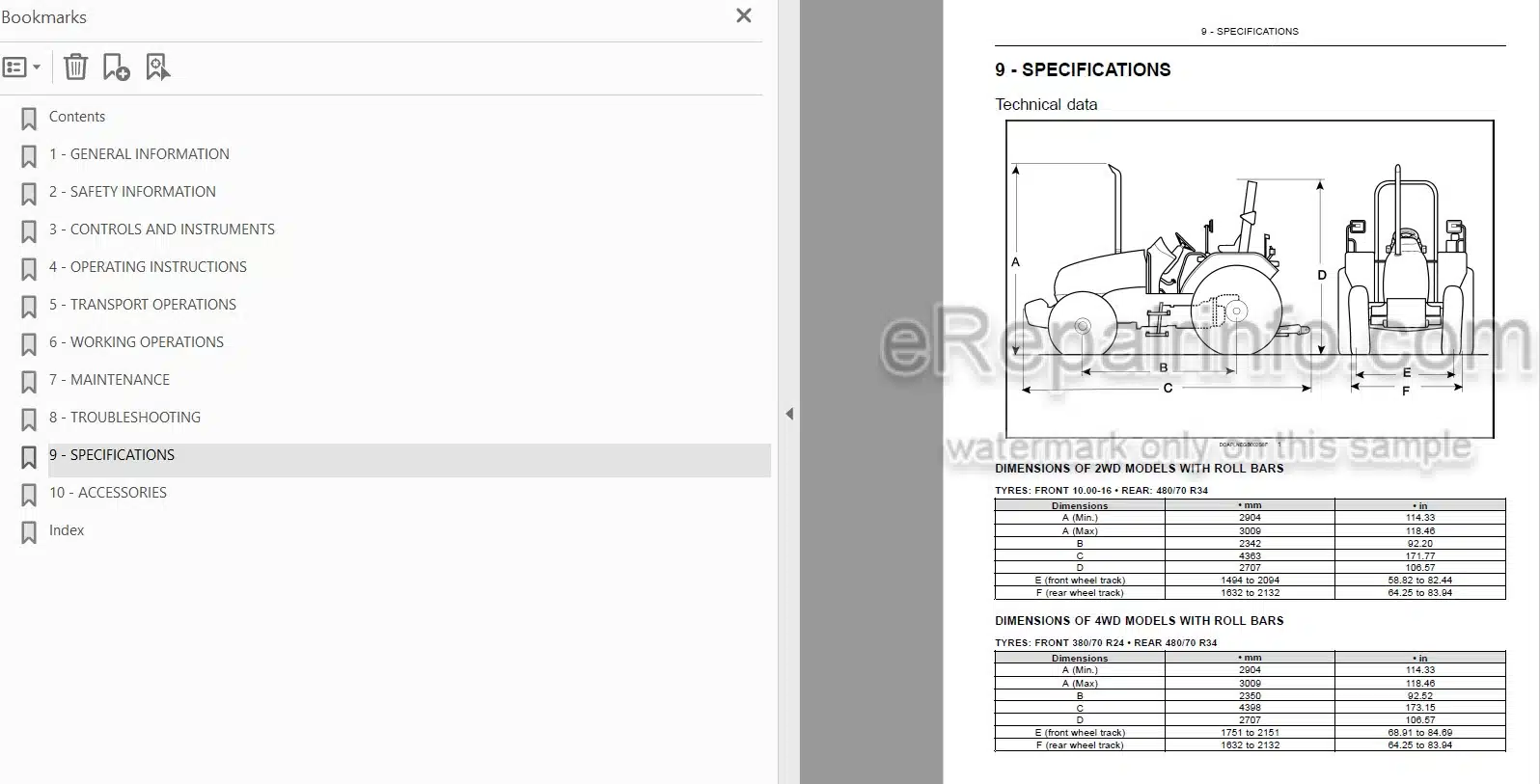

-SPECIFICATIONS AND DATA
-FIRST 50 HOUR SERVICE FORMS
-ALPHABETICAL INDEX

What you get

You will receive PDF file with high-quality manual on your email immediately after the payment.
